DISPLAY
If there is a problem with manual reset, the LED ERROR switches ON and the display shows repeatedly the letter "E", followed by
the first and second digit of the error (see "problems with manual reset" table in the NRG series battery chargers manual).
Where there is a problem with automatic reset, a warning or generic status message, the display will show the relative message
(in english) with one character at a time. The symbol "-" will appear at the end of the last character of the message.
If there are multiple messages simultaneously they will be shown in sequence.
Refer to the "PROBLEMS WITH MANUAL RESET", "WARNING MESSAGES", "STATUS MESSAGES" table in the NRG series battery
chargers manual.
FLASH memory checksum error

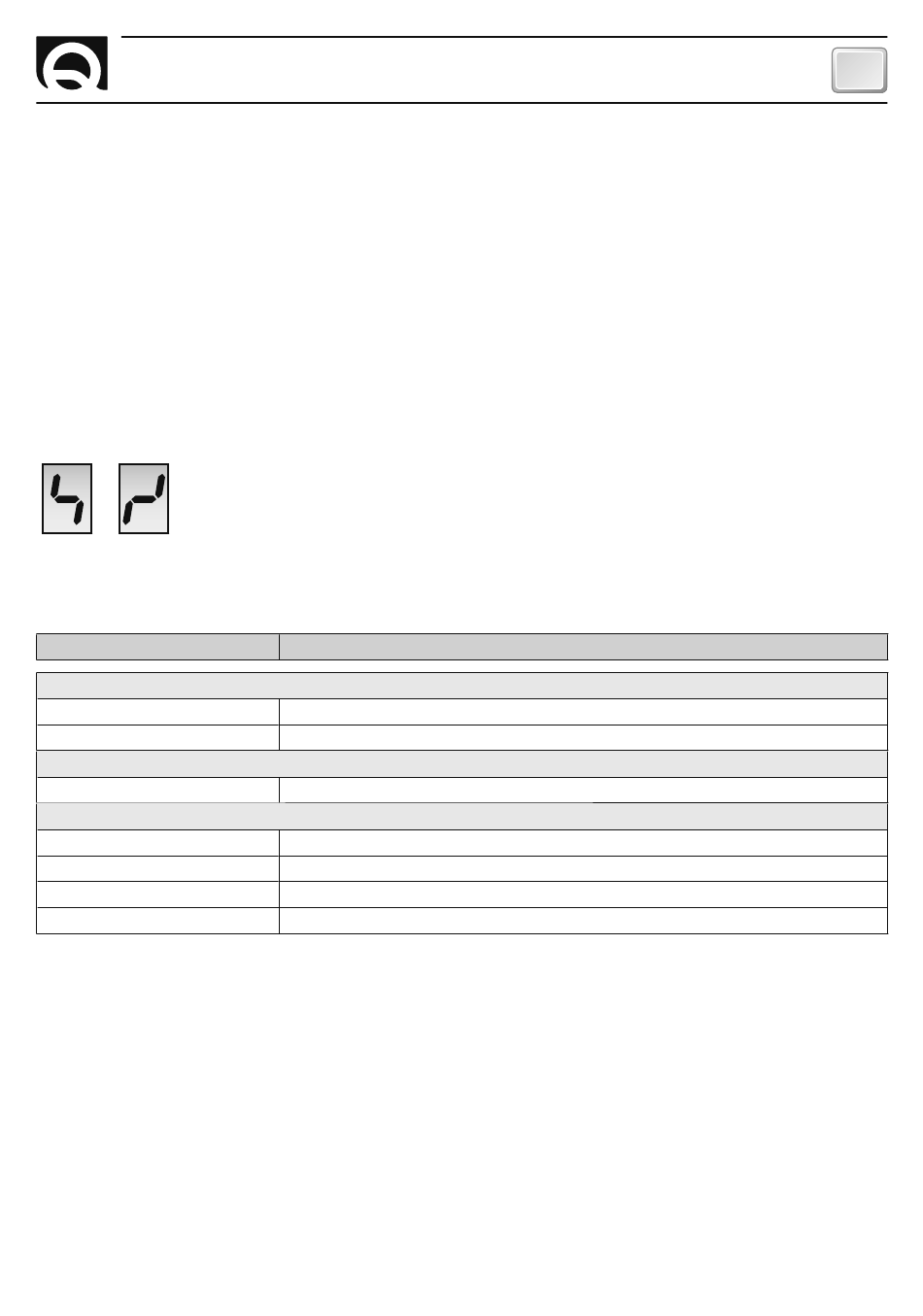

Where this problem is found, the instrument will display these two symbols in sequence, continuing to remain in this loop.

TECHNICAL DATA

MODEL
INPUT CHARACTERISTICS
Supply voltage (1)
Maximum absorption
AMBIENT CHARACTERISTICS
Operating temperature
GENERAL
Dimensions (W x H x D)
Weight
Communication interface
EMC standard
(1) The instrument can reset itself at a voltage less than 8 Vdc.
®
QUICK RESERVES THE RIGHT TO MODIFY THE TECHNICAL CHARACTERISTICS OF THE EQUIPMENT AND THE CONTENTS OF THIS MANUAL WITHOUT PRIOR NOTICE.
RDS 1521 - REV001A
NOTIFICATION SIGNS - TECHNICAL DATA
EN 61326-1 - EN 55011-B - FCC title 47 PART 15 subpart B class B
RDS 1521
from 8 to 30 Vdc
100 mA
from -20 to + 70° C
60 x 65 x 20 mm
60 g
CAN BUS with differential transceiver
