INSTALLATION
GB
The instrument meets EMC standards (electromagnetic compatibility) however correct installation is fundamental in
order not to compromise its performance as well as operation of the instruments found nearby.
For this reason, the instrument should be at least:
• 25 cm away from the compass.
• 50 cm away from any radio receivers.
• 1 m away from any radio transmitters (except for SSB).
• 2 m away from any SSB radio transmitters.
• 2 m away from radar beams.

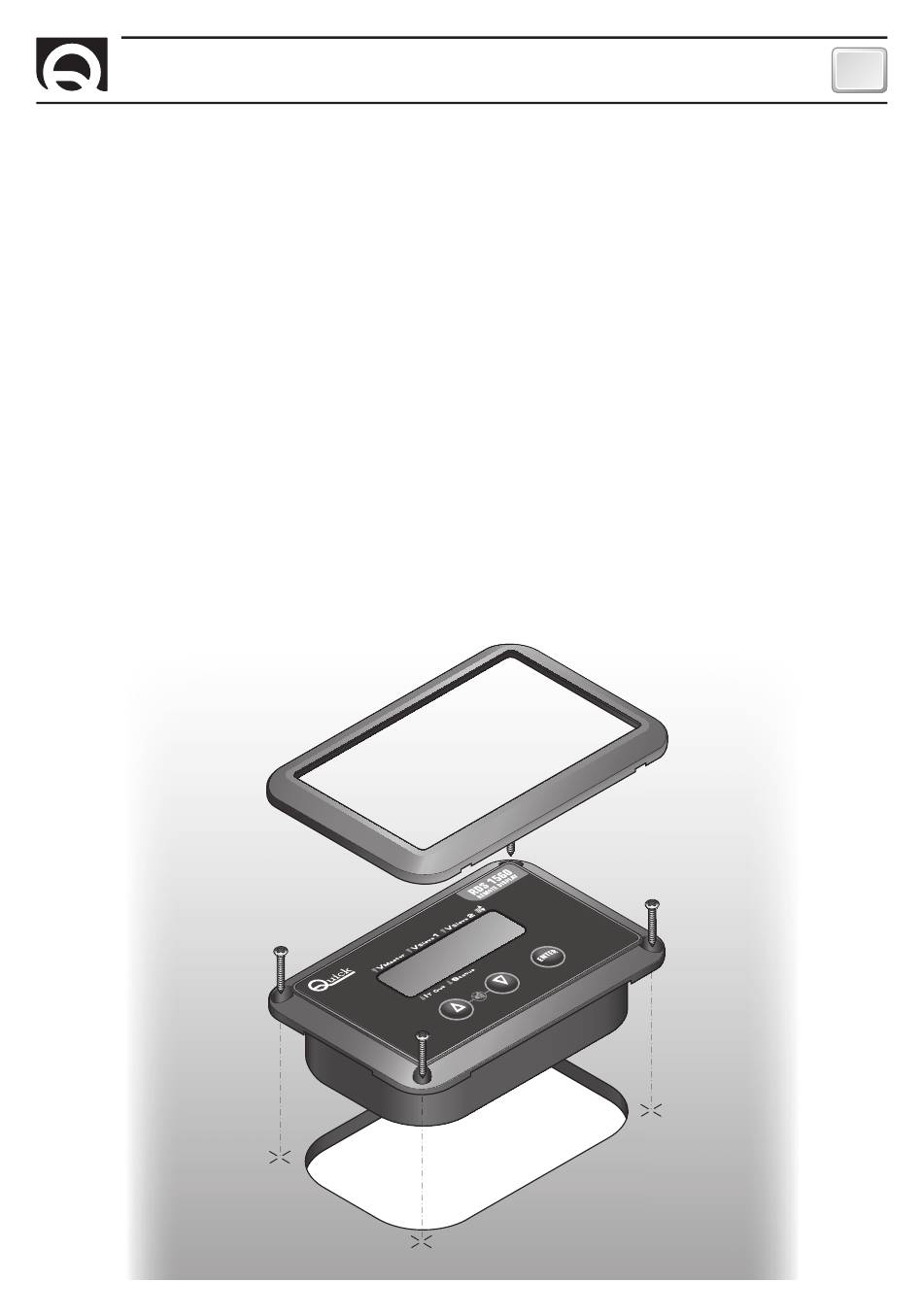

PANEL INSTALLATION

After selecting the area where the instrument is to be installed, perform the steps given below:
• Place the drilling template (supplied) on the surface where the instrument will be installed.
• Mark the center of each hole.
• Create the slot to fit the back of the remote control.
• Remove the template and any burrs present on the holes.
• Put the instrument in place.
• Fix the remote control to the panel by means of four countersunk head screws (not provided).
• Position the frame on the remote control.
15
RDS 1560 - REV001A
