TR 1100 remote control
TR 1000 / TR 1100 operating concept
TP 08 remote
System requirements
control
-

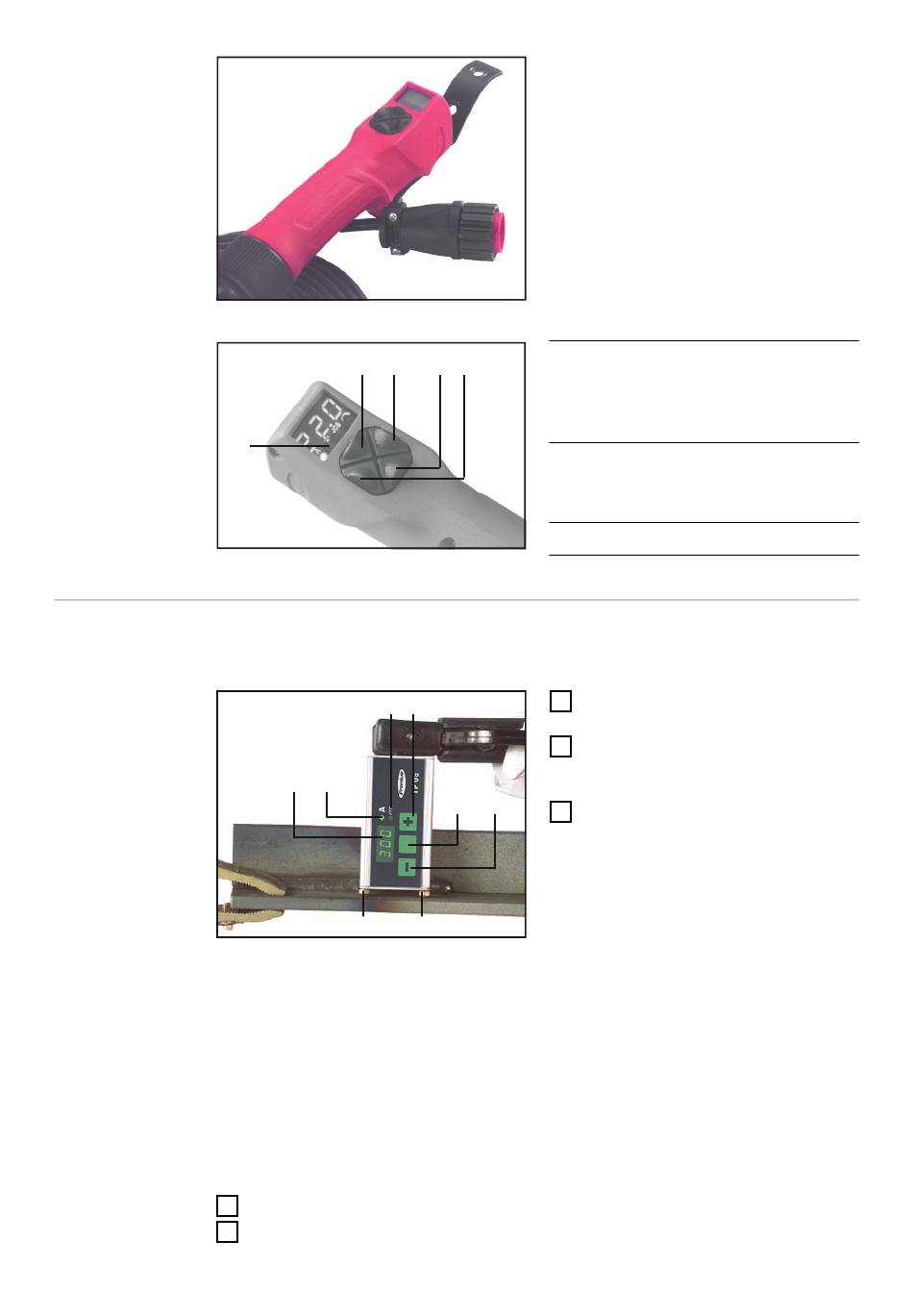

TP 08 remote control
The welding voltage is applied to the welding sockets with a 3-second time lag.
The TP 08 remote control is then supplied with the welding voltage and the indi-
cator (5) lights up.
If the TP 08 remote control has been connected since the power source was last
switched on, the current and arc-force dynamic can only be set on the TP 08 re-
mote control.
To restore the current and arc-force dynamic setting option on the power source
and other system add-ons:
1
2
80
(2) (1)
(3)
Software version 2.81.1
(7) (2)
(5) (6)
(4)
Disconnect TP 08
Switch the power source off and back on again
(1)
(2)
(1)
(2)
(3)
Press the "Process" button to
1
select the MMA welding process
Secure the earthing clamp to the
2
workpiece and clamp the electrode
holder to the TP 08 remote control
(1)
(3)
Place the TP 08 on the workpiece
3
so that a tight connection is crea-
ted between the workpiece and the
two contacts (4)
(4)
Parameter display button(s)
For selecting the parameter to
be displayed (welding current,
etc.)
Parameter setting buttons(s)
For changing the selected para-
meter
Welding current parameter
