This unit allows you to configure a multi-room audio system. You can control this unit from the second room using the
supplied remote control.
Only analog signals are sent to the second room. Any source you want to listen to in the second room must be
connected using the analog (AUDIO L/R) input jacks on this unit.
Zone 2 connections
You need the following additional equipment to use the multi-room functions of this unit:
• An infrared signal receiver in the second room.
• An infrared emitter in the main room. This emitter transmits the infrared signals from the remote control in the second
room to the main room (to a CD player, for example).
• An amplifier and speakers for the second room.
y
• Since there are many possible ways to connect and use this unit in a multi-room installation, we recommend that you consult with your
nearest authorized YAMAHA dealer or service center about the Zone 2 connections that best meet your requirements.
• Some YAMAHA models are able to connect directly to the REMOTE CONTROL OUT jack of this unit. If you own these products,
you may not need to use an infrared emitter. Up to 6 YAMAHA components can be connected as shown.

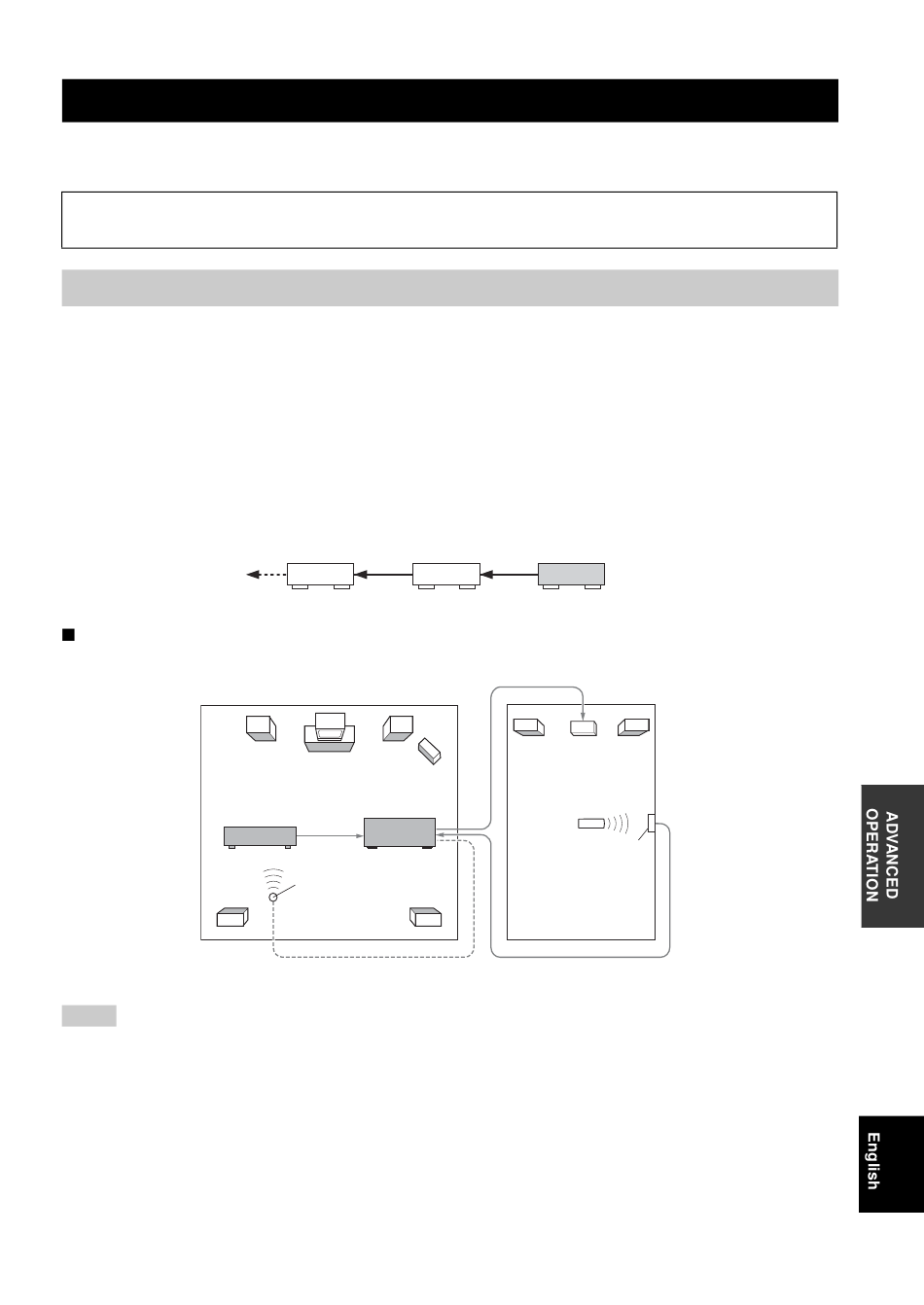

System configuration and connections example
(or other component)
Notes
• When not using the main room, turn down the volume of this unit in the main room. Adjust the volume control on the amplifier in the
second room.
• To avoid unexpected noise, DO NOT USE the Zone 2 feature with CDs encoded in DTS.
ZONE 2
OUT
IN
OUT
DVD player
This unit
DVD INPUT
Infrared emitter
Main room
REMOTE CONTROL OUT
REMOTE
IN
CONTROL OUT
This unit
ZONE 2 OUTPUT
Amplifier
Remote control
Infrared signal
receiver
Second room
ZONE 2 REMOTE IN
ZONE 2
61
