CONTROLS AND FUNCTIONS

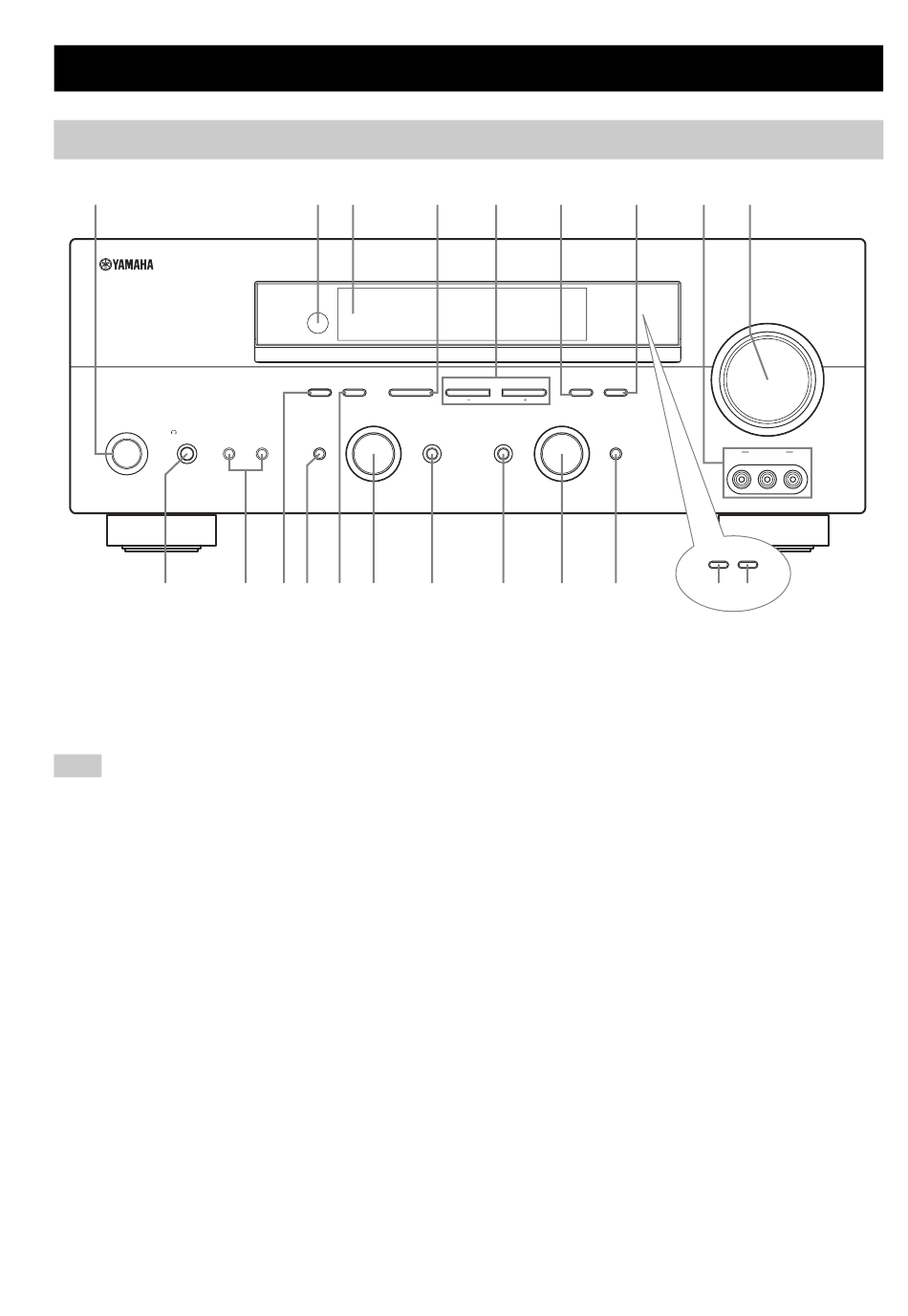

Front panel
1
PHONES
STANDBY
/ON
SILENT CINEMA
0
1 STANDBY/ON
Turns on this unit or sets it to the standby mode. When you
turn on this unit, you will hear a click and there will be a 4
to 5-second delay before this unit can reproduce sound.
Note
In standby mode, this unit consumes a small amount of power in
order to receive infrared-signals from the remote control.
2 Remote control sensor
Receives signals from the remote control.
3 Front panel display
Shows information about the operational status of this
unit.
4 A/B/C/D/E, NEXT
Selects one of the 5 preset station groups (A to E) when
the unit is in tuner mode.
Selects the speaker channel to be adjusted when the unit is
not in tuner mode.
4
CONTROLS AND FUNCTIONS
2 3
PRESET/TUNING
FM/AM
EDIT
PROGRAM
SPEAKERS STRAIGHT
A B
EFFECT
A B C D E
4 5 6
l PRESET/TUNING h
A/B/C/D/E MEMORY
NEXT LEVEL MAN'L/AUTO FM
INPUT
TONE CONTROL INPUT MODE
F G H
5 PRESET/TUNING l / h, LEVEL –/+
Selects preset station number 1 to 8 when the colon (:) is
displayed next to the band indication in the front panel
display when the unit is in tuner mode. Selects the tuning
frequency when the colon (:) is not displayed.
Adjusts the level of the speaker channel selected using
A/B/C/D/E (NEXT) when the unit is not in tuner mode.
6 MEMORY (MAN'L/AUTO FM)
Stores a station in the memory. Hold down this button for
more than 3 seconds to start automatic preset tuning.
7 TUNING MODE (AUTO/MAN'L MONO)
Switches between automatic tuning (AUTO indicator on)
and manual tuning (AUTO indicator off).
8 VIDEO AUX jacks
Input audio and video signals from a portable external
source such as a game console. To reproduce source
signals from these jacks, select V-AUX as the input source.
7 8 9
VOLUME
TUNING MODE
AUTO/MAN'L MONO
MULTI CH
INPUT
VIDEO AUX
VIDEO L
ZONE ON/OFF
MAIN ZONE 2
I J K
AUDIO R
