13 Appendix
13 Appendix
13.1 ABIDRIVE V2 spare parts
1
2
27
26
25
24
23
21
20
22

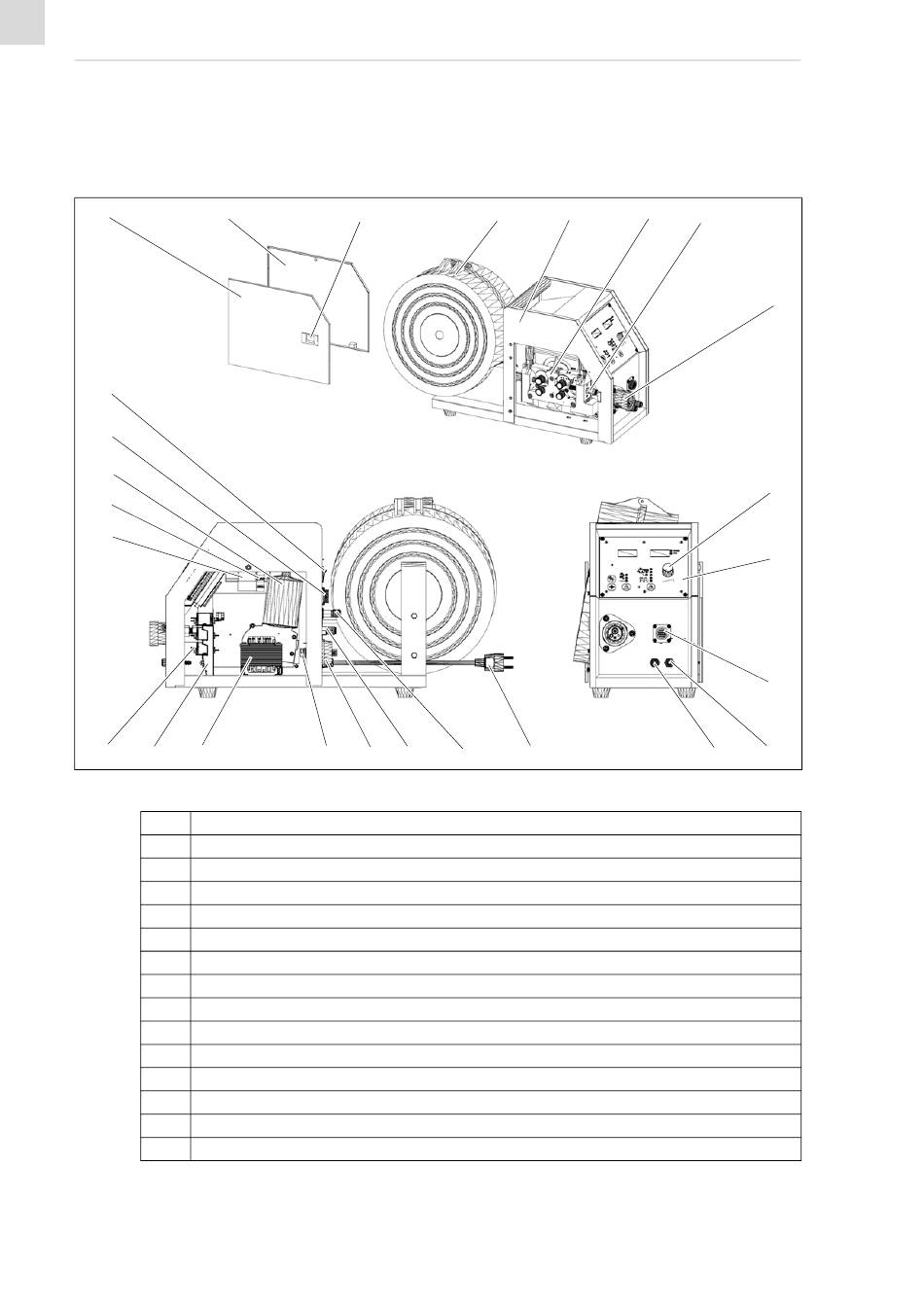

Fig. 21 Spare parts
Pos. Item description
1 Cover, right
2 Cover, left
3 Grid lock
4 Complete wire cover
5 Housing
6 Complete wire feeder
7 Distance adaptor
8 Complete central port
9 Knob FI23
10 Front panel
11 Control lead (power source)
12 Quick coupling nom. diam. 5 (red)
13 Quick coupling nom. diam. 5 (blue)
14 Plug, 2-pin, 230 V
Tab. 20 Spare parts list
EN - 30
3
19
16, 17
18 15
TIG cold-wire feeder
6
4
5
14
BAL.0415.0 • 2018-10-22
7
8
9
10
11
12
13
