6 Putting into operation
6.4 Function types
6.4.1 2/4-cycle and 2/4-cycle with interval
The wire feed can be delayed on start-up using the parameter dt (0 - 3 sec.).
Wire retraction can be used when stopping welding. The wire retraction time is set using the parameter rE (off - 3 sec.).
The wire retraction feed rate is set using function F2.
The rockers (T1 to T4) are programmed using function F5.
The applicable parameter settings can be found in the following table:
Function Description
dt Wire feed delay time
rE Wire retraction time
F2 Wire retraction feed rate
T1 Rocker
T2 Rocker
T3 Rocker
T4 Rocker
Tab. 11 Settings for 2/4-cycle and 2/4-cycle with interval

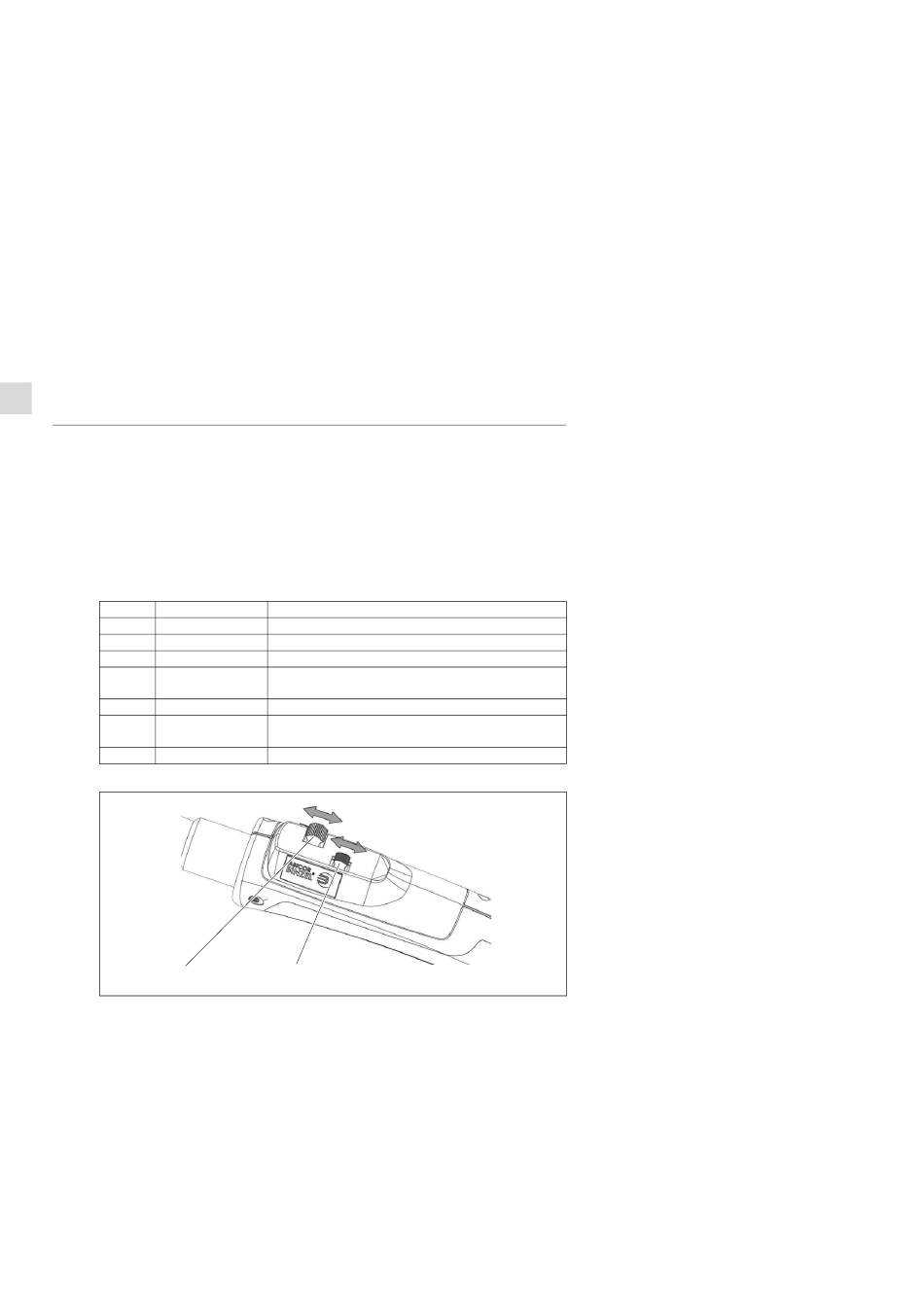

1
1 Rocker T2/T4
Fig. 9 Rocker for 2/4-cycle
2-cycle
In 2-cycle mode, the rocker (1) is moved towards T4 to switch the welding current source on or off.
Moving the rocker (1) towards T2 switches the wire feeder on or off.
4-cycle
In 4-cycle mode, the rocker (1) is moved towards T4 to switch on the welding current source and towards T2 to switch on
the wire feed. Moving the rocker (1) towards T4 again switches off the welding current source. The wire feeder remains on
but can be switched off by moving the rocker (1) towards T2.
EN - 14
Explanation of the setting process
 Tab. 9 Display indicators after switching on on page EN-11
 Tab. 9 Display indicators after switching on on page EN-11
 Tab. 10 Display indicators for advanced functions on page EN-13
Set the rocker using F5
 Tab. 12 Setting the rocker on page EN-15
Switch the wire feed on or off
Set the rocker using F5
 Tab. 12 Setting the rocker on page EN-15
Switch the welding current source on or off
T2
T4
T1
T3
2
2 Rocker T1/T3
TIG cold-wire feeder
