Magnetics Assembly Replacement
6. Place another screwdriver or similar object into the opening between the panel and the base to keep the first corner
of the panel from re-engaging the snaps when you release the other corner.
7. Repeat step 4 and step 5 on the other corner of the panel.
8. Repeat step 4 through step 7 on the other panel.
9. Disconnect the control board's ribbon cable from the power board by folding the latches back.
In Figure 7, the center panel is hidden in the image on the left.
6

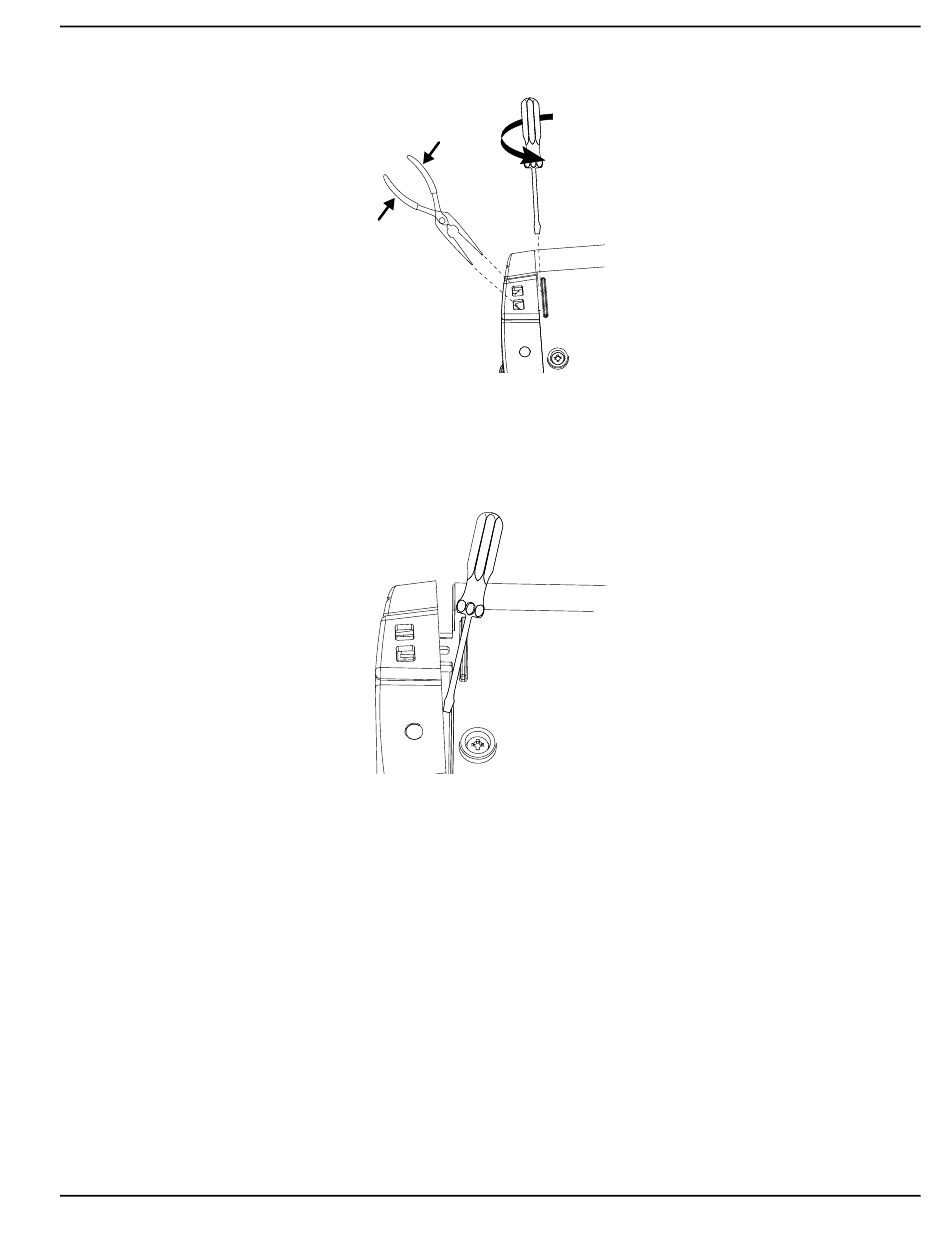

Figure 5
Figure 6
Powermax30/Powermax30 XP Field Service Bulletin 805320
