2. Use a spirit level to mark the drill holes on the wall.
3. Use the TV wall mount (A) as template.
4. D rill the holes with a 10mm concrete drill 60mm deep.
5. Plug a concrete anchor (W-B) in each drilling hole.
6. M ount the TV wall mount (A) by using the wall screws (W-A).
4.3 Mounting the flat screen
Warning level
Tab. 15: Mounting the flat screen
4.3.1 F lat screens with flat back

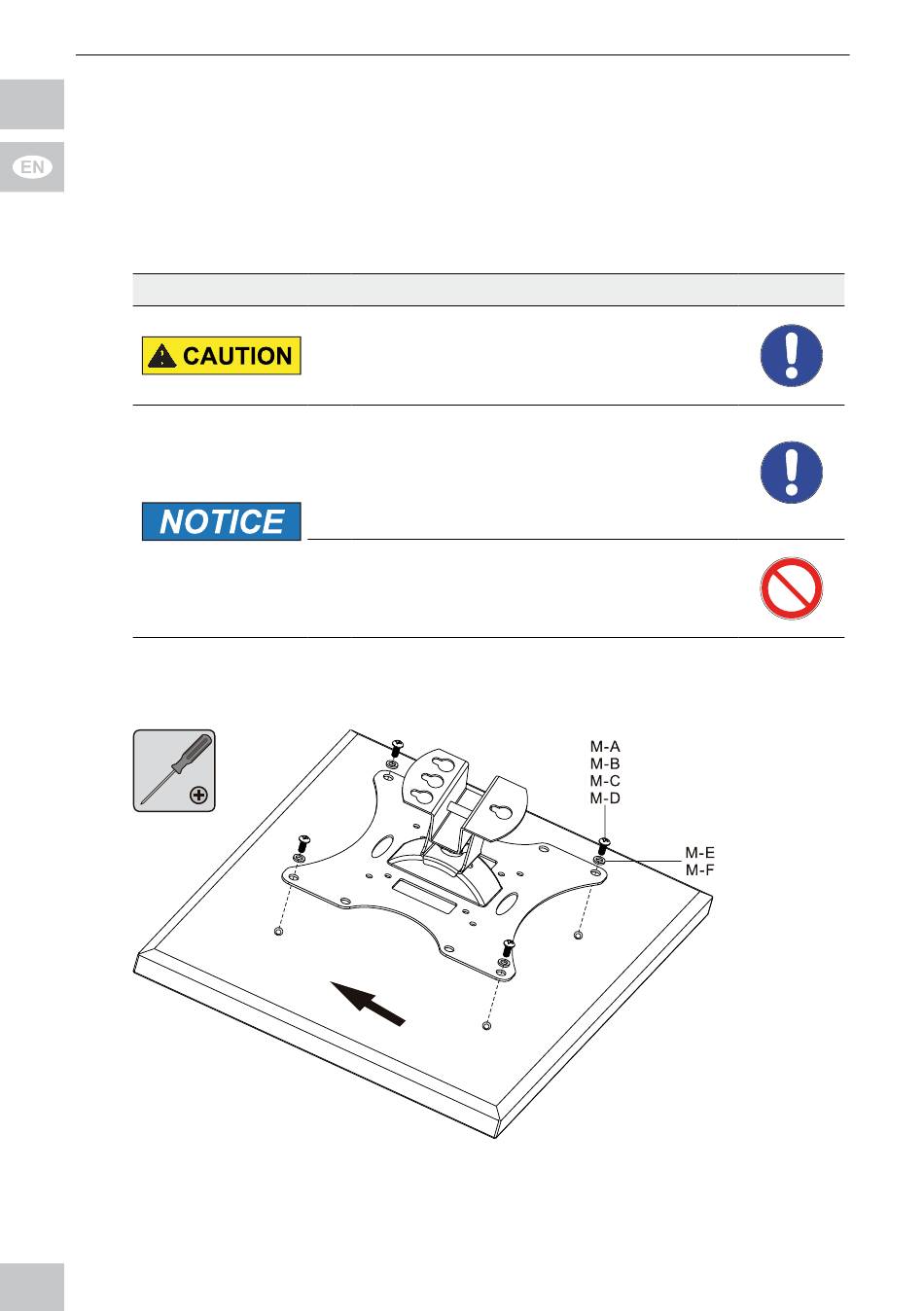

Fig. 9: Flat screens with flat back
1. L ean the flat screen vertically on a soft, large surface or a wall and protect it
of scratches and overturning.
2. Mount the TV wall mount (A) with matching washers and screws like shown.
22
Safety instruction
Risk of injury by tripping and falling
>> Place, transport and install product, parts
and acceories in a safe way.
Risk of material damage by improper
procedure
>> Only use moderate force when tightening
the screws in order to avoid damaging
threads.
>> NEVER set the screen on the front during
installation!
>> Do not damage the flat screen by too
long screws.
Bid / Ban
