User's Manual
1. Before drilling, attend to live cables or other lines lying behind plaster, and
do not damage them.
2. Use a spirit level to mark the drill holes on the wall.
3. D rill the holes with a 10mm concrete drill 60mm deep.
Make sure that you use 2 attachment points per side.
4. Plug a concrete anchor (W-B) in each drilling hole.
5. M ount the wall mount (A) by using the wall screws (W-A) and washers
(W-C).

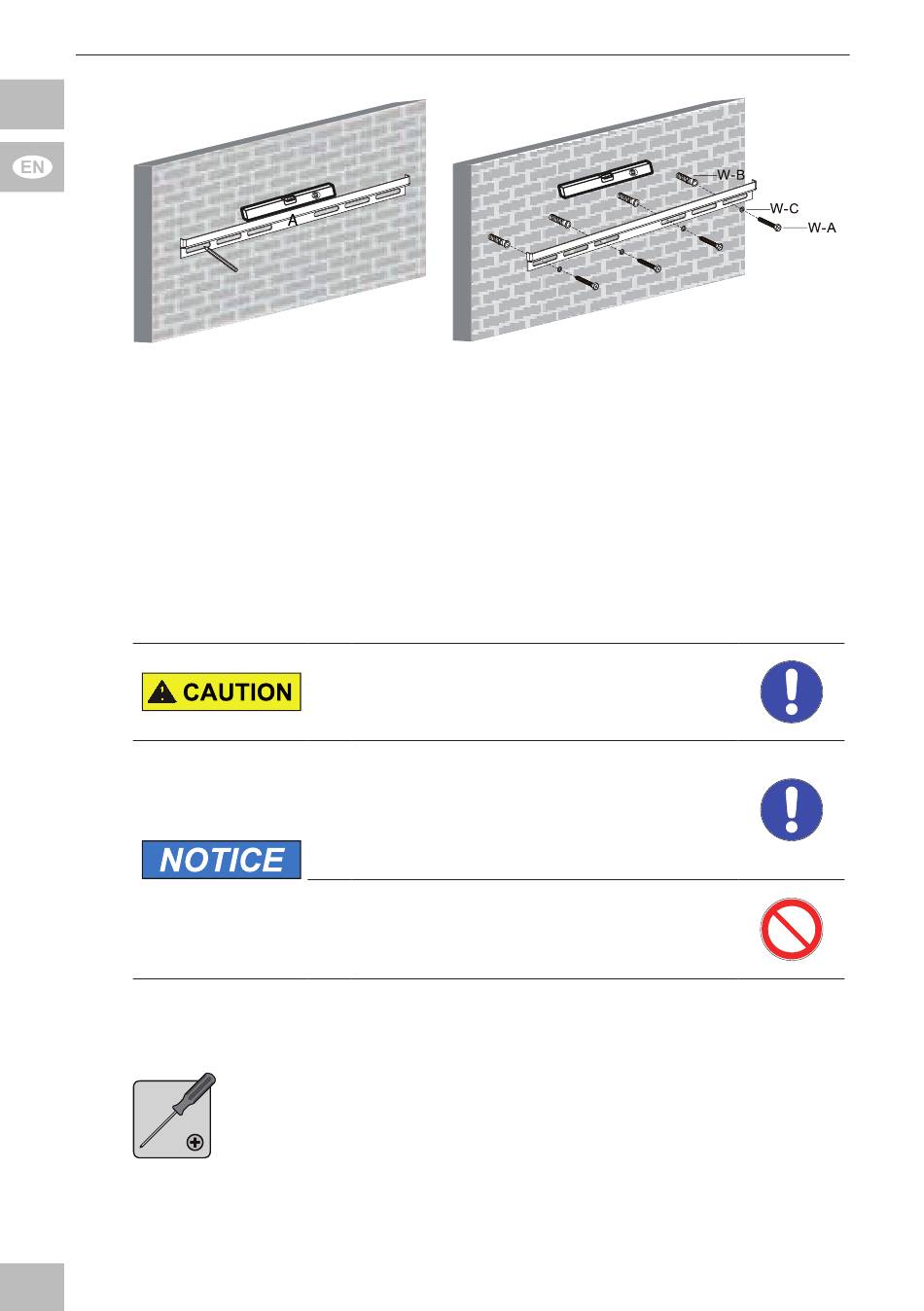

Mounting the flat screen
4.3
Tab. 16: Mounting the flat screen
4.3.1 F lat screens with flat back
20
Fig. 5:
Wall mounting
Risk of injury by tripping and falling
>> Place, transport and install product, parts
and acceories in a safe way.
Risk of material damage by improper
procedure
Only use moderate force when tightening
>>
the screws in order to avoid damaging
threads.
NEVER set the screen on the front during
>>
installation!
Do not damage the flat screen by too
>>
long screws.
