Make sure, fixing the TV wall mount (A) with the 3 wall holes facing to the flat
screens top.

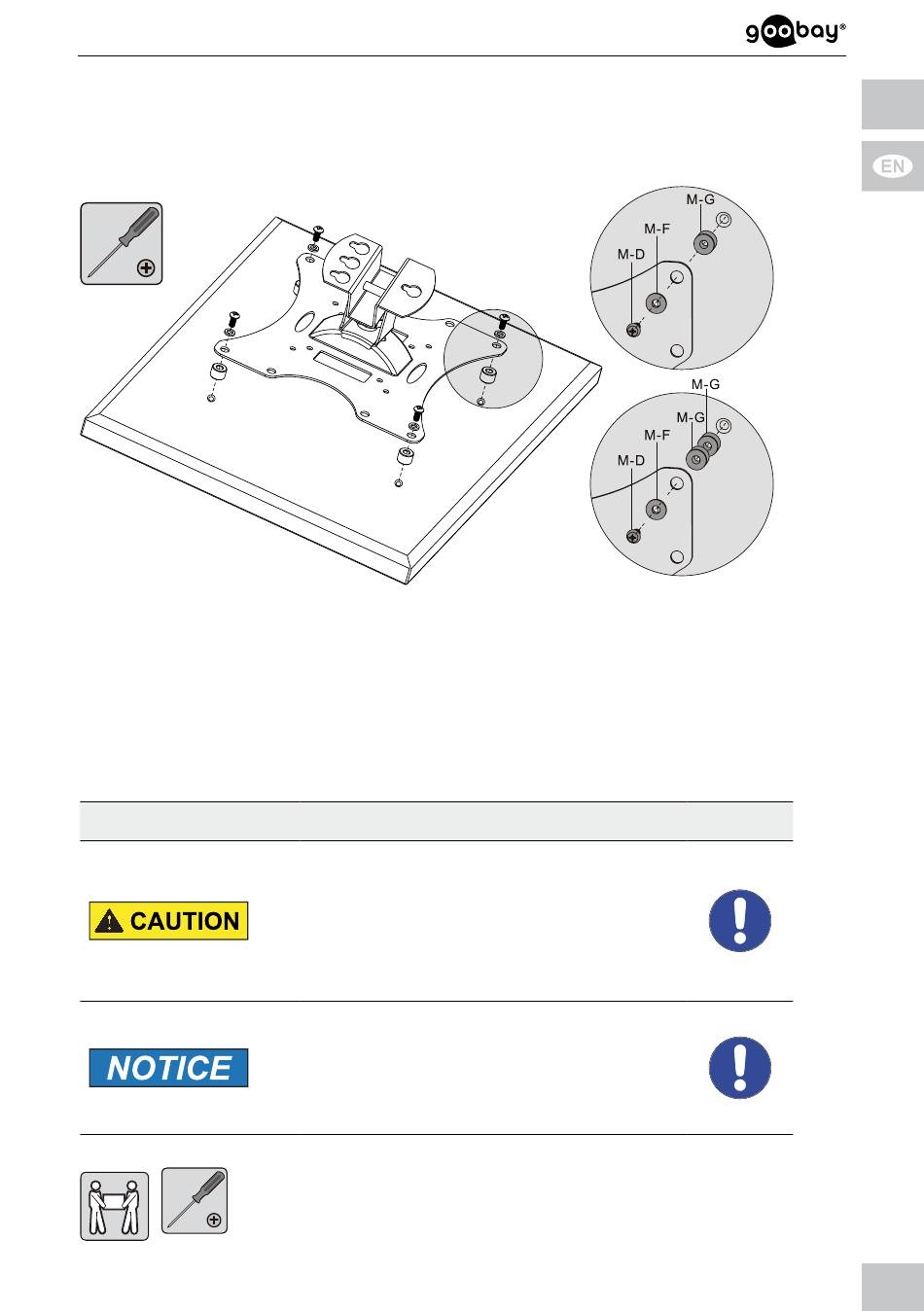

4.3.2 Flat screens with arched back

Fig. 10: Flat screens with arched back
1. Apart from the following working step - proceed like shown in chapter 4.3.1.
2. Mount the fitting TV spacers (M-G) single or double between TV wall mount
(A) and flat screen like shown.
Make sure, fixing the TV wall mount (A) with the 3 wall holes facing to the flat
screens top.
4.4
Attaching and locking the flat screen
Warning level
Tab. 16: Attaching and locking the flat screen
Safety instruction
Risk of injury by tripping and falling
>>
Place, transport and install product, parts
and acceories in a safe way.
>>
When working with burdens, secure your-
self and the working place, let a second
person help you.
Risk of material damage by inappropri-
ate ambient conditions
>>
Keep enough space around product and
to the whole system to ensure proper
ventilation and mobility.
Bid/Ban
23
