1. Before drilling, attend to live cables or other lines lying behind plaster, and
do not damage them.
2. Use a spirit level to mark the drill holes on the wall.
3. D rill the 4 holes with a 10 mm concrete drill 60 mm deep.
There must be drilled 2 holes in the upper side and 2 holes in the lower side.
4. Plug a concrete anchor (W-B) in each drilling hole.
5. M ount the wall mount (A) by using the wall screws (W-A) and washers
(W-C).
4.3 Mounting the flat screen
Tab. 15: Mounting the flat screen
20
Risk of injury by tripping and falling
>> Place, transport and install product, parts and acceo-
ries in a safe way.
Risk of material damage by improper
procedure
>> Only use moderate force when tightening the screws
in order to avoid damaging threads.
>> NEVER set the screen on the front during installation!
>> Do not damage the flat screen by too long screws.

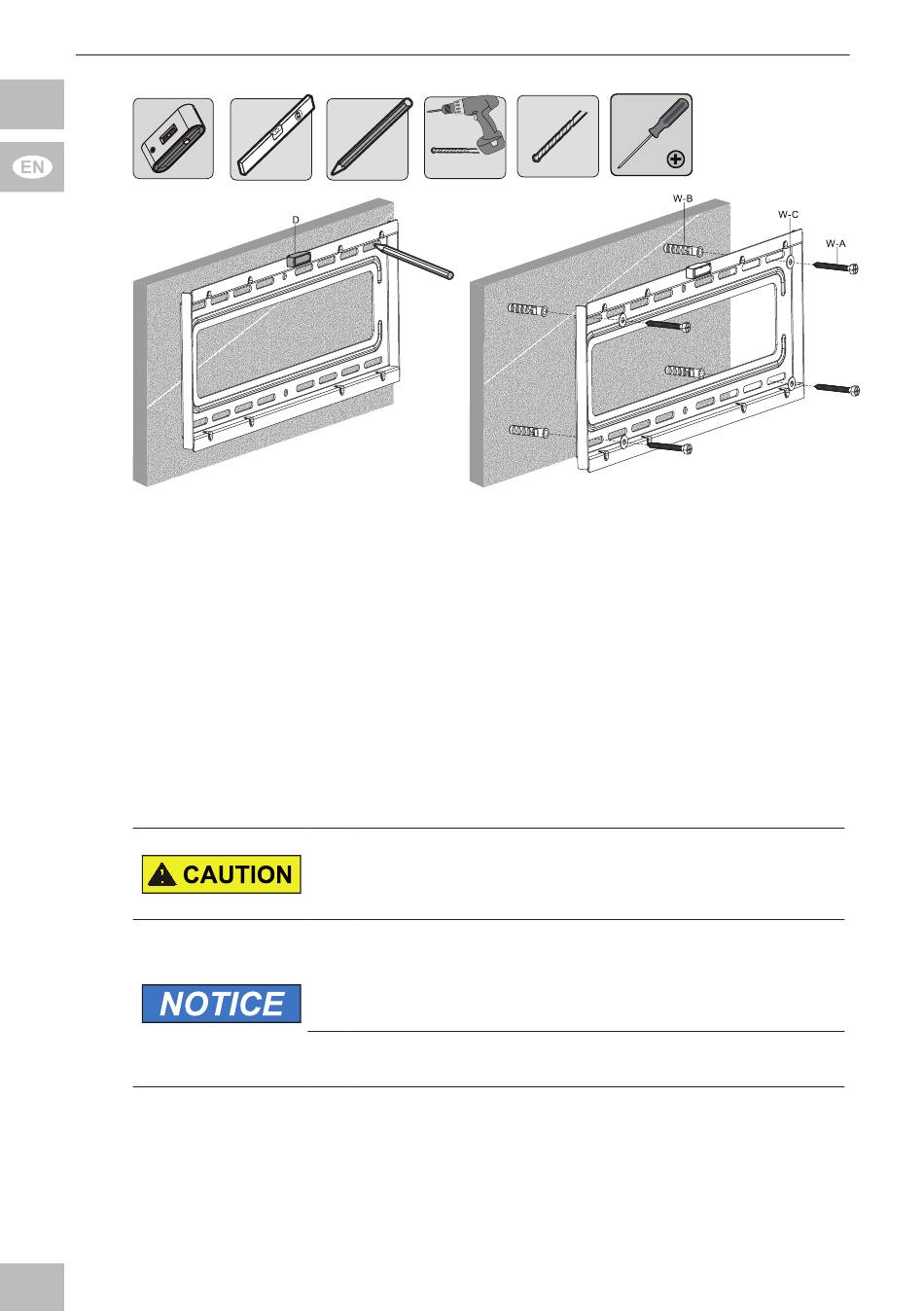

Fig. 8: Wall mounting
