Adjustments
5 Adjustments

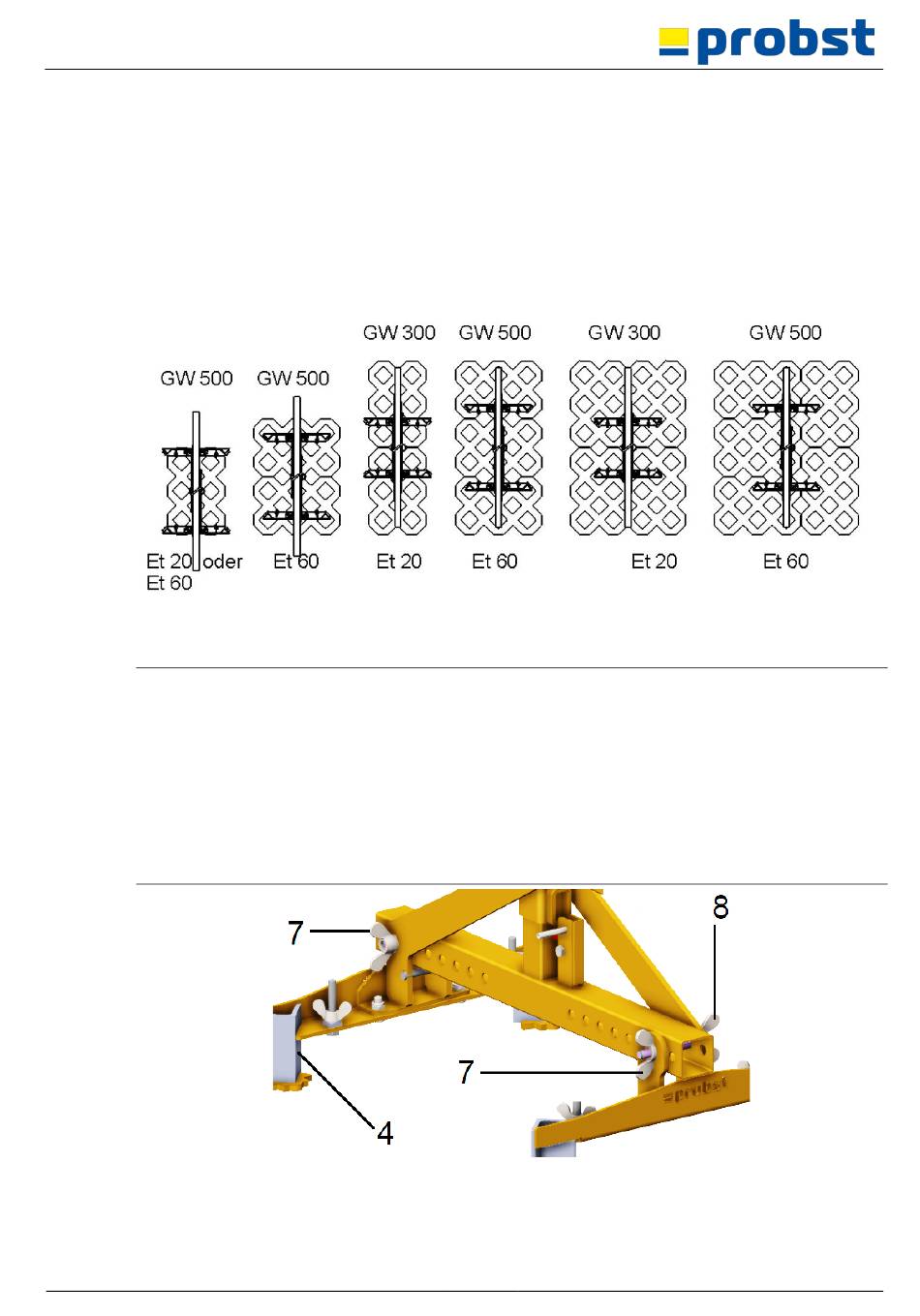

5.1 Adjustment of inside height / griping range
The illustraded griping good (Turf Stone) can be gripped in only two adjusting holes (4th hole each from
the inside) for a gripping range/gripping width (GW) of approx. 300 mm and adjusting holes (7th hole
each from the inside) for a gripping range/gripping width (GW) of approx. 500 mm (Fig. 1).
In addition, the "inside height E (Et)" of the grippers on the adapter (4) can be changed, which must be
adjusted depending on the gripping goods to be picked up (Turf Stones) ( Fig. 3).
GW = gripping range/gripping width
Et = inside height E
•
By adapting the adapters with grippers (4), the device can be used for lifting different sizes of
gripping goods.
•
The gripping range/gripping width (GW) is adjusted as follows:
•
Place the device on the ground, loosen the wing nuts (7) and then remove the wing screws (8).
•
Displace the adapter with grippers (4) until the gripping range/gripping width (GW) is adjusted to
the gripping good, making sure that both adapters with grippers (4) are positioned
symmetrically (to the central axis of the device).
•
Insert the wing screws (8) into the corresponding adjusting holes and then secure again with
wing nuts (7).
53100436 / 43101738
Fig. 1
Fig. 2
