SIGMA BREWER CONTROL BOARD

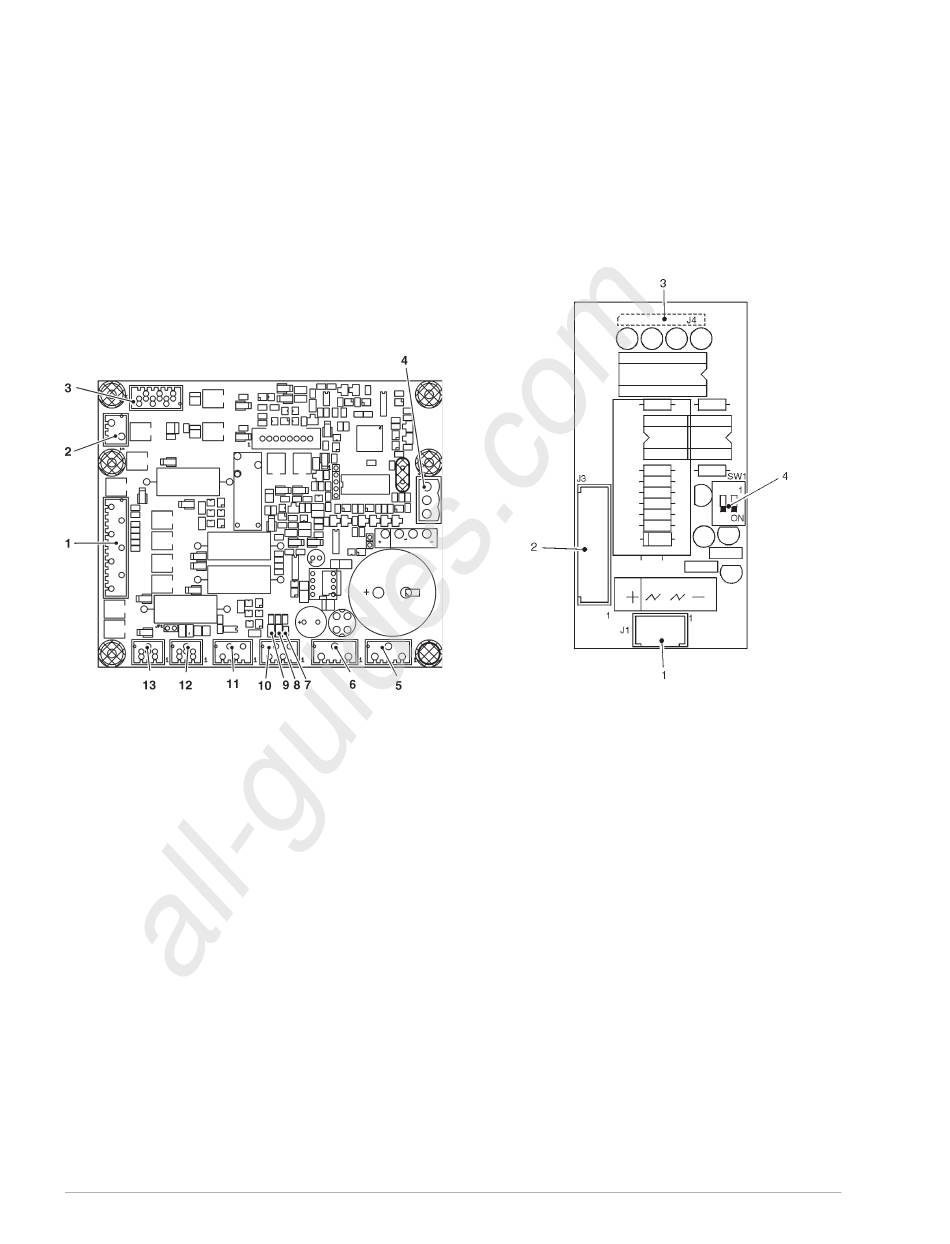

This board, placed at the back of the machine, (see Fig. 31)
processes the information from the brewer unit and con-
trols its operation.
The board also controls the dispensing of fresh product
and the flow diverter solenoid valve from spout/external
nozzle.
The 24 V AC voltage required for board operation is
supplied by a transformer which is protected by a T1.6 A
fuse on the primary and by a T3.15 A fuse on the secondary
winding. The voltage supply is rectified and stabilised
directly by the board.
- the green LED (7) indicates the presence of +5 V;
- the green LED (8) indicates the presence of 34 V DC
variable;
- the green LED (9) indicates the presence of 34 V DC.
Fig. 31
1
- To Sigma brewer unit
2
- Not used
3
- MDFB - EVDEV - MDFB2
4
- Board power supply 24Vac
5
- Not used
6
- Not used
7
- Green LED +5V
8
- Green LED 34Vdc variable
9
- Green LED 34 Vdc
10
- Tray detection micro-switch
11
- Tray detection micro-switch
12
- Can-bus with actuation board
13
- Can-bus with actuation board
© by N&W GLOBAL VENDING SpA
All manuals and user guides at all-guides.com
PAYMENT SYSTEMS
EXPANSION BOARD
This board (see Fig. 32) is supplied with the installation kit
of "change giver" or "cashless" payment systems.
It must be connected to the control board using the special
connector.
According to the communication protocol used by the
payment system, the 2 minidips will have to be set to OFF
(Executive and BDV) or to ON (MDB).
Fig. 32
1
2
3
4
32
- Power supply (MDB - BDV)
- To the the payment system (with special cable)
- To the control board
- Payment system configuration minidips
OFF
= Executive / BDV
ON
= MDB
07 06 275- 00
