OPERATING MODES
The machine can be in three different operating modes.
According to the operating mode, the buttons take on
different functions.
The available operating modes are as follows:
Normal operating mode
Filler menu
Technician menu
NORMAL OPERATING MODE
During the normal operating mode the display shows the
message for the user with the prompt to select the drink.
SELECT THE DRINK
The function of the buttons can be different according
to the layout and to the choices made during program-
ming.
When inserting coins or a payment system, the avail-
able credit is displayed.
SELECT THE DRINK
Credit=
During the drink dispensing, also a status bar is shown,
indicating the drink preparation status.
DRINK SELECTED
In the event of a malfunction detected by the control
system, an error message will be displayed indicating the
type of problem.
SELECTION NOT AVAILABLE
"Failure name"
At the end of dispensing, the display indicates for a few
seconds the request to pick up the drink and the machine
is preset for the next selection.
DRINK READY
TAKE
© by N&W GLOBAL VENDING SpA
All manuals and user guides at all-guides.com
FUNCTIONS
coins accepted
products dispensed
test dispensing
machine maintenance
Programming the
different parameters
0.50
17

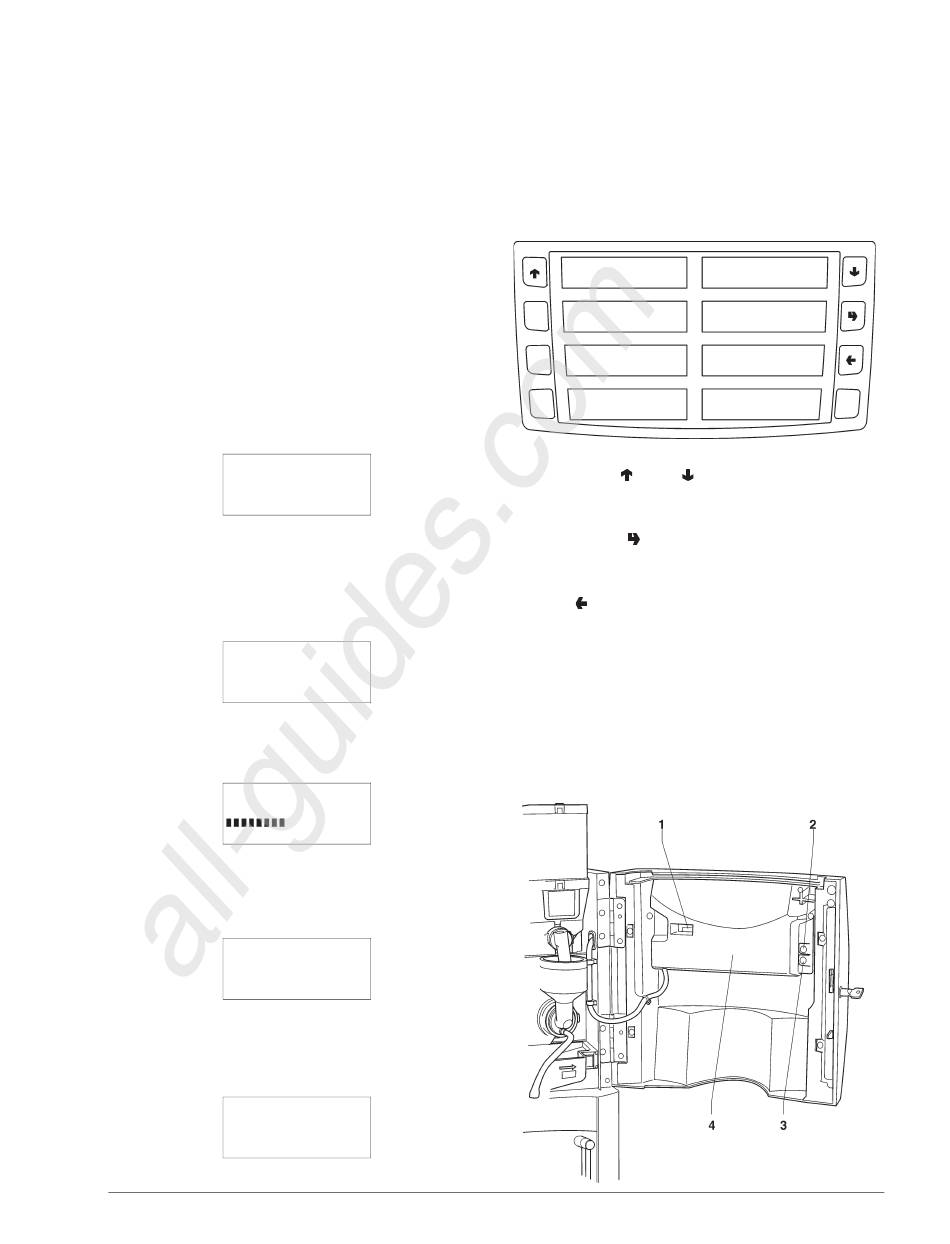

SURFING MODE
The interaction between system and user occurs through
the following components:
- Liquid crystal display (LCD) 2 lines of 16 characters.
- External direct selection push-button panel which takes
on the following functions when in "Filler" and "Techni-
cian" mode (see Fig. 20):
Fig. 20
Scroll buttons " " and " ":
To move to the next or previous menu option and change
the values (up or down).
Confirm button " ":
To move from a menu to a sub-menu, or to confirm the
current information on the display.
Exit key " ":
to return from a sub-menu to the higher level menu, or to
clear the data on the display.
It is also used for going from "Technician" mode to "Filler"
mode and vice versa.
Fig. 21
1 - Mechanical counter
2 - Wash button
3 - Programming access button
4 - Push-button card cover
07 06 275- 00
