BREWER UNITBREWER UNIT
After each time the machine is switched on the brewer unit
performs a control cycle to check the correct functioning of
the piston stroke, filter closure and scraper stroke to
ensure that the device is in the correct initial position.
When making a selection, the filter holder closes to seal
the brewing chamber.
The product dose is dispensed and part of the water dose
is sent from the pump located on the boiler lid, through the
dispensing solenoid valve, to the brewing chamber.
After a (programmable) brewing time, the piston advances,
applying pressure in the chamber and closing the upper
valve of the brewer.
Then the drink is dispensed.

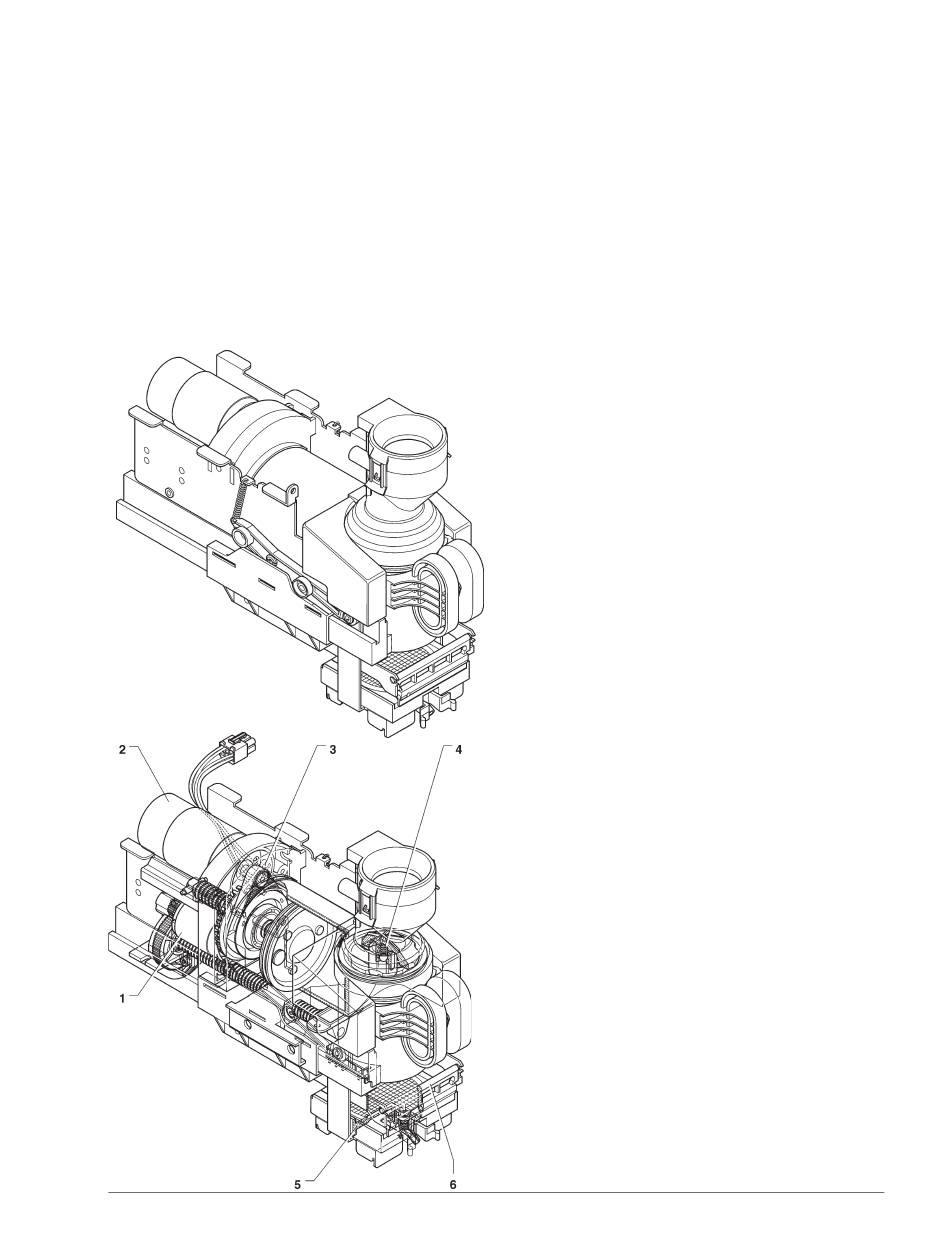

Fig. 19
1 - Scraper motor
2 - Piston motor
3 - Piston position sensor
4 - Brewer closing valve
5 - Filter holder
6 - Scraper
© by N&W GLOBAL VENDING SpA
All manuals and user guides at all-guides.com
15
The piston returns and advances again, performing a wash
cycle of the product loading zone and completing the
brewing cycle; the piston remains in position for a pro-
grammable drying time.
At the end of the drying period, the piston returns and the
scraper motor is started, opening the chamber and expel-
ling the used grounds with the scraper.
The piston and the scraper return to the initial position.
CHECKING AND ADJUSTING
THE MACHINE SETTINGS
To get the best results from the product used, the following
should be checked:
The dose weight of the instant products.
The drink temperature.
The water dose.
Should the standard settings need to be changed, proceed
as indicated in the next sections of this manual.
The weight of products, the water dose and temperature
are directly controlled by the microprocessor.
To adjust them it is therefore necessary to follow the
programming procedures.
PRE-SELECTIONS
According to the layout set for the vending machine, it is
possible to have different pre-selections; the available
pre-selections for each layout are indicated in the
selection dose table supplied with the machine.
DECAF
This pre-selection is used for choosing whether the next
coffee based selection will be with decaffeinated type
coffee.
LARGE
This pre-selection is used for dispensing approxi-
mately 150% of the product amount normally
dispensed (for the exact values refer to the se-
lection dose table).
COFFEE STRENGTH
This pre-selection is used for varying the concentration
of the dispensed coffee; the coffee strength permits to
adjust the coffee powder necessary for brewing.
