Suture cut flush with
the end of the pin
The TransLoc electrode is ready to be inserted into the FrictionLoc connector.
8.3.2 FrictionLoc Location on the Patient
Place the FrictionLoc connectors in close proximity to the TransLoc electrode exit site.
Green FrictionLoc Connector
(Right side of Patient)

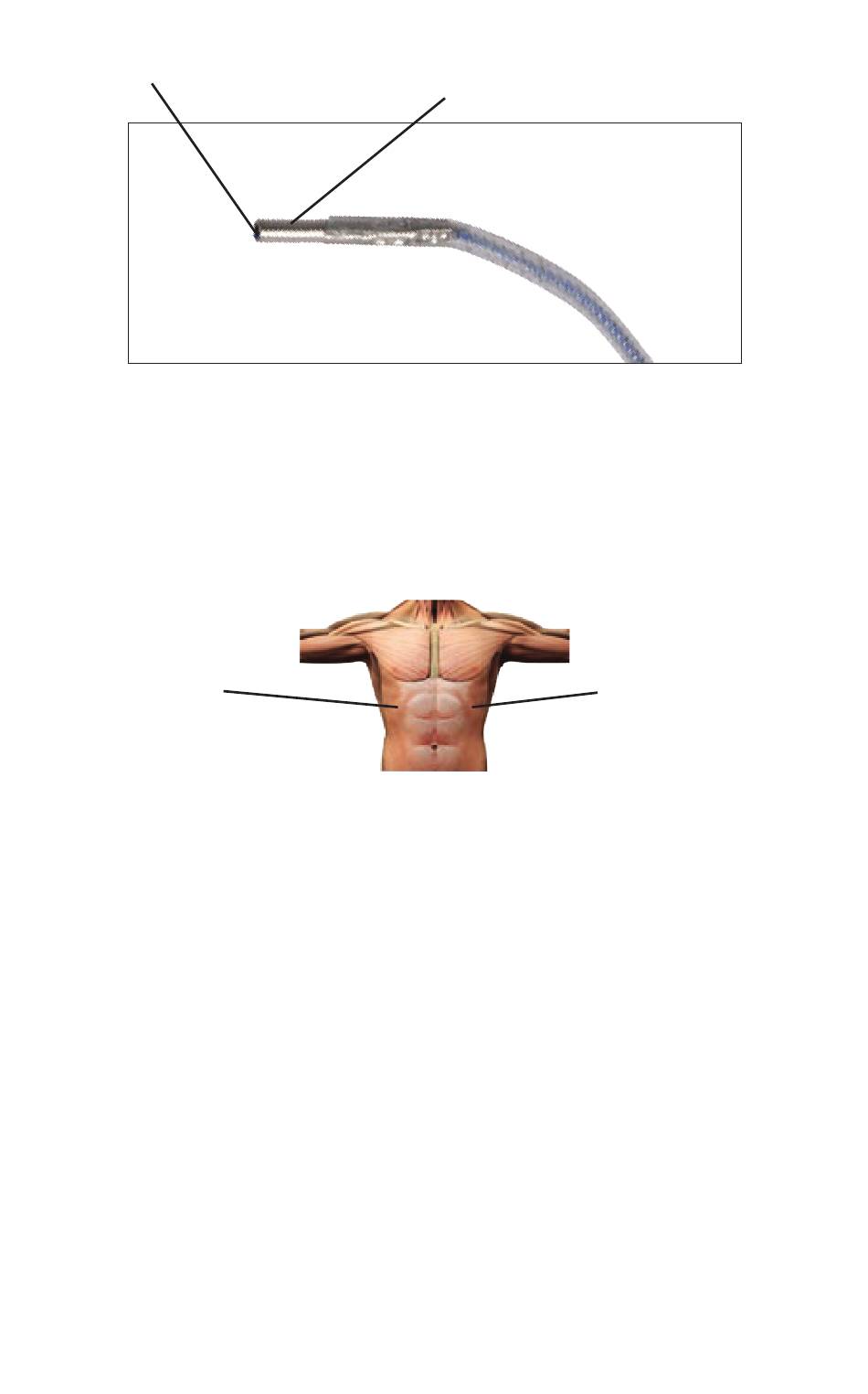

Figure 13 – Position of FrictionLoc connector with surface electrode
8.3.3 FrictionLoc Connector and Percutaneous TransLoc Electrodes
To connect the percutaneous TransLoc electrodes to the FrictionLoc connector,
do the following:
• Remove the FrictionLoc connectors from the packaging.
• Remove two (2) surface electrodes from the packaging.
• Snap the surface electrodes to the FrictionLoc connectors.
Exposed Conductive Pin
Figure 12 – TransLoc Proximal End Ready to Use
Blue FrictionLoc Connector
(Left side of Patient)
