11. Appendix

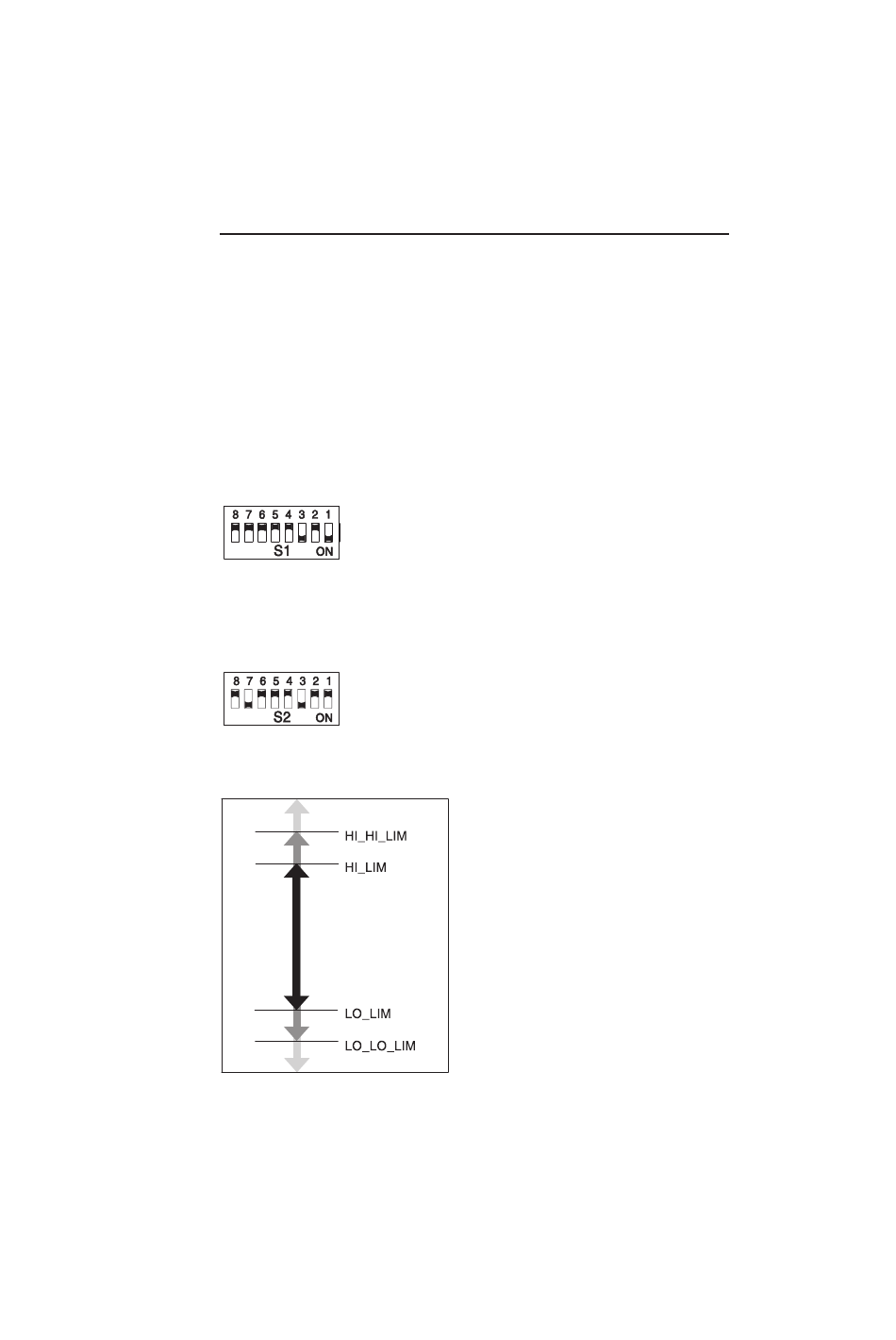

11.1 Setting up example for
the PROFIBUS-PA display
Display of totaliser 1 from a flow measuring device
on bus address 68.
The flow measurement device can transmit a data telegram
with a length of 55 Byte. Before transmitting totaliser 1 the
mass flow (5 Byte) is transmitted.
The offset on switch S1 is set to 5.
The totaliser is a process value of the sensor (input data),
This means S2/8 = off.
The PROFIBUS-PA-device bus address (flow measuring
device) is set by DIP-switch 2: bus address 68 as seen
opposite.
11.2 Alarm set point condition on the
PROFIBUS-PA Profile V3.0
Process value
