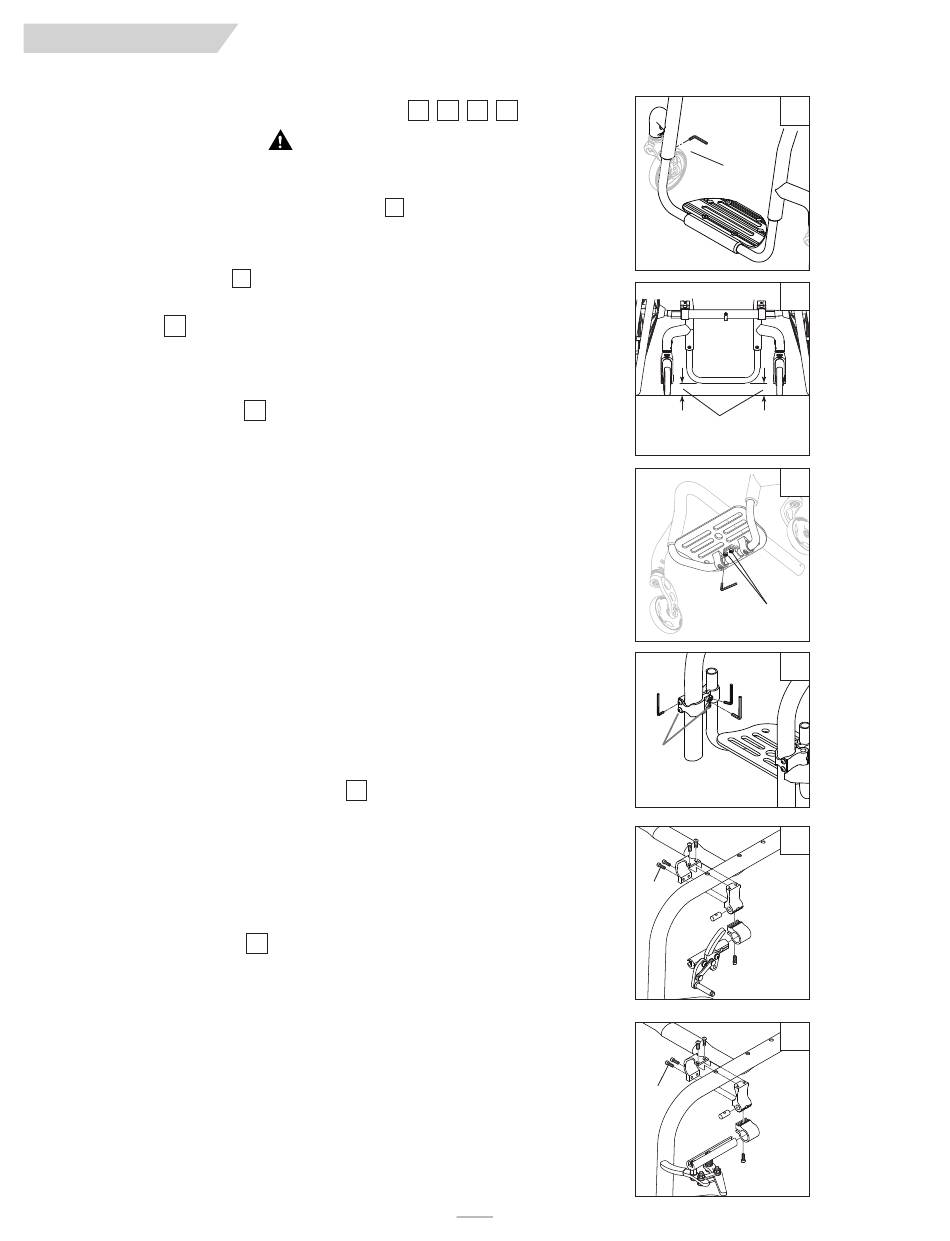

R. FOOTREST HEIGHT ADJUSTMENT
The footrest is an integral part of the frame. Chair should not be ridden
without a footrest.
To adjust the height of your footrest, loosen the screw (
the footrest up or down to the new desired height and tighten the two set screws. Use a
MAX torque setting of 62 in-lbs (7 Nm). (Frame damage may occur if overtightened.) It is
recommended that you maintain a minimum of 2.0 inches (5 cm) between the lowest point
on the footrest and the floor (
faces and prevent damage to your footrest.
45
Flip-up Footrest
To adjust the angle of the Flip-up Footrest, loosen two bolts (D) and rotate the footrest angle
stop bracket. Once positioned, retighten bolts (D) to 92 in-lbs. For certain narrow widths,
only one bolt will be present.
High Mount Footrest Mount
1. Loosen all four socket heads (E) on both sides of the chair.
2. Slide footrest to desired height.
3. Tighten socket to 62 in-lbs on both sides.
S. WHEEL LOCKS
Quickie Q7 Adjustable and Quickie Q7 Active Rigid wheelchairs are shipped with one of
five types of wheel locks. Wheel locks are installed at the factory unless you have requested
otherwise.
Use a torque setting of 62 in.-lbs. (7 Nm) when setting up wheel locks.
1. High-Mount Push-to-Lock or Pull-to-Lock
a. Using a 4mm Allen wrench, turn one of the screws (E) in the clamp counterclockwise
one-quarter turn.
b. Repeat the same process with the remaining screw (E).
c. Alternately loosen the screws (two turns each) until both screws are loose.
d. Slide clamp toward the rear wheel until the wheel lock is embedded into the tire to
prevent wheel movement, when in the locked position.
e. Tighten screws to 62 in-lbs. (7 Nm).
2. Ergo Scissor Wheel Locks
a. Using a 4mm Allen wrench, turn one of the screws (E) in the clamp counterclockwise
one-quarter turn.
b. Repeat the same process with the remaining three screws (E).
c. Alternately loosen the screws (two turns each) until both screws are loose.
d. Slide clamp toward the rear wheel until the wheel lock is embedded into the tire to
prevent wheel movement, when in the locked position.
e. Adjust angle position.
f. Tighten screws to 62 in-lbs. (7 Nm).
NOTE– Clamp and wheel lock may need to be rotated to clear frame tubing.
