E N G L I S H
Record the teeth engagement position of the splines on the right fork, and adjust the left fork
in a similar fashion to the same position. Reassemble both casters, and re-check that they are
square. Replace caps.
3. 3-D Perpendicular Alignment
The allen bolt adjustment (
the spline system. The bolt may be loosened to relieve tension in the stem assembly. The
caster angle may then be fine-tuned and the bolt retightened.
4. Correcting a Pull to the Right or Left
Determine which direction the chair is pulling (right or left). Make the following adjustments
to the caster on that side of the chair:
a. Loosen the screw (
b. Loosen the screw on the upper spline (
c. Rotate the upper spline (
direction. Turn the ring clockwise, and the fork will swing outwards. Turn the ring
counterclockwise, and the fork will swing inwards.
d. When the caster fork is correctly rotated forward, retighten the screws.
e. After making the desired adjustment, recheck the squareness of the casters. (See
"Checking for Caster Squareness" in Section P).

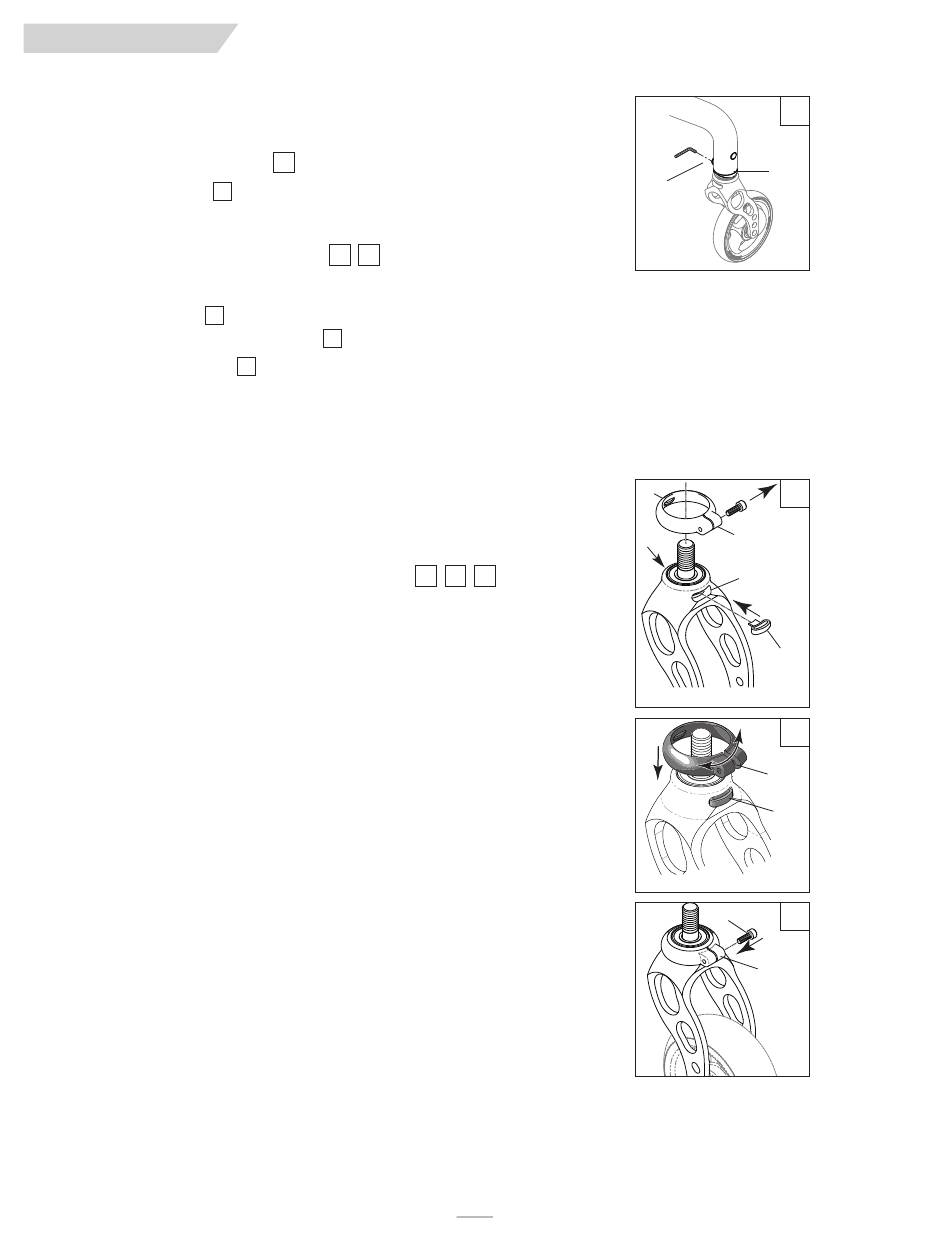

Q. ANTI-FLUTTER KIT INSTALLATION
1. Remove fork assembly from chair. This may or may not require the removal of the
caster wheel.
2. Insert anti-flutter bushing (A) into the slot (B) at the rear of the fork ensuring the tab
goes between the ends of the snap ring and between the bearings.
3. Install clamp (C) over the top of the fork assembly inserting the inside tab (D) in the
front slot (E).
4. Gently flex the clamp tabs (F) apart to allow it to slide over the recently installed bush-
ing (A).
5. Squeeze the tabs (F) back together and install the sockety head cap screw (G) into the
clamp, insure threads are properly aligned and lightly tighten using a 3mm hex key.
112786 Rev. E
39
-F) provides another dimension of adjustability in addition to
39
37 39
37
-D) inside the caster tube using a 10mm open-end wrench.
39
-F).
39 -A) to turn the caster fork toward the forward driving
40 41 42
24
39
A
F
D 40
C
E
B
A
Rear of Fork
41
F
A
Rear of Fork
G
42
F
X.
