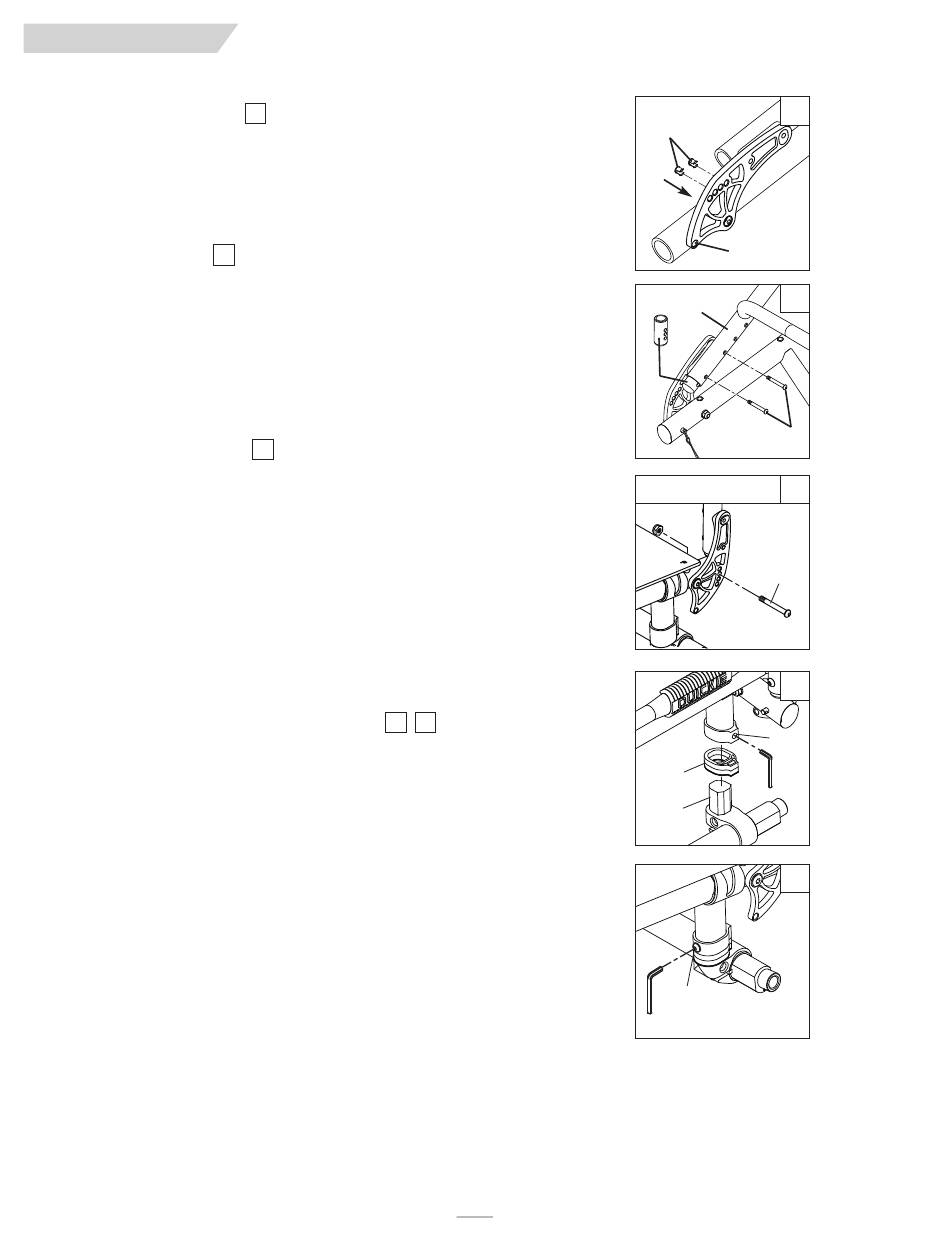

Backrest Angle Preset Plugs
The preset plugs allow you to unemploy the backrest bracket holes you do not wish to use.
This allows the backrest to automatically lock into your desired angle position after unfolding.
1. Determine which backrest bracket holes you do not want to use.
2. Insert plugs (G) into the predetermined holes from the chair side of the bracket (B).
3. To ensure the backrest will lock in the folded position, do not insert a plug into the
lowest hole position (C).
Backrest Adjuster Stop
The preset stop allows the ability to place a firm stop at desired angle. The hole pattern in
the backrest adjuster stop corresponds with the hole pattern in the backrest bracket (4 holes
for each piece).
1. Determine the desired Stop Position.
2. Remove the lower backrest bracket butten head fastener (E) and loosen the top slightly
(E).
3. Adjust the Backrest Adjuster Stop (D) into the Backrest Frame (F) to desired position.
4. Insert backrest bracket hardware (E) and retighten to 62 in.-lbs (7 Nm)
5. Repeat process on opposite side. Ensure both sides are using the same Stop Position.
Non-folding back instructions
1. Remove backrest bracket bolt (G).
2. Rotate the backrest to the desired angle.
3. Align desired backrest bracket hole with seat frame opening.
4. Reinsert bolt and tighten.
CAUTION – When changing the back angle of the wheelchair both the left and right angle adjustable back
bracket must be in the same hole position before the wheelchair is to be used.
K. ADJUSTING REAR SEAT HEIGHT
Remove the set screws (H) on the rear side of the axle plate and the button head screw (I) on
the front. To increase the Seat To Floor Height add a spacer (J) to the camber tube clamp (K). To
reduce the Seat To Floor Height remove the spacer (J) from the camber tube clamp (K). No
more than two spacers per side are to be used. Once complete insert the camber system (K) in
the axle plate and tighten screws to 62 in-lbs (7 Nm).
NOTE–
Adjustment to rear seat height may also require caster angle adjustment. See Section P .
NOTE–
If chair is configured with the 1B axle plate, the shorter camber tube clamps will be needed to lower
rear seat height by 1/2 inch. If configured with a 1A axle plate, it cannot be lowered and needs longer
camber tube clamps in order to raise seat height.
L. CUSHION
(Optional)
Place cushion on seat sling with VELCRO® side down. The beveled edge of the cushion
should be in front. Press firmly into place.
