Adjustments
Caster angle, C of G, rear seat height, back
angle, footrest length, rear wheel spacing,
wheel locks, back height
Color
Quickie colors
Frame Dimensions
Frame width: Std 12" - 20"
Seat depth: 12" - 20"
Backrest
Non-folding
Folding Lock Down Angle Adjustable
Height-adjustable & angle: 11"-14", 12"-16",
14"-18", 16"-20"
Fixed Height: 8"-20"
Opt– adjustable upholstery, vented adjustable
upholstery, folding push handles, tele-
scoping push handles
Footrest
Std– Tubular
Opt– Tubular w/Cover,
Angle Adjustable Platform,
ultra lite platform footrest
112786 Rev. E
III. YOUR CHAIR AND ITS PARTS
1
3
11
12
7
10
13
QUICKIE Q7 ADJUSTABLE AND ACTIVE RIGID
Casters
Std– 5" Low-profile Polyurethane
Opt– 4" Low-profile Poly,
4" Micro Light Up
4"x1" Aluminum Poly
4"x1.5" Aluminum soft Roll
3" Micro,
3" Micro Light Up
4", 5" & 6" x 1-1/2" wide poly
6" Poly
Frog Legs
Armrests
Opt– Padded Swing-Away
Opt– Single-Post Height-Adjustable
Axle Bracket
Std– Fore/Aft CG Adjustable Bracket
0°, 3°, 6°
Opt Camber–
Axles
Std– stainless steel
Opt– quad-release axle nuts
Anti-tip tubes
Opt– Rear anti-tip tubes
Standard rear wheels
Std– Lite spoke
Opt- Mag

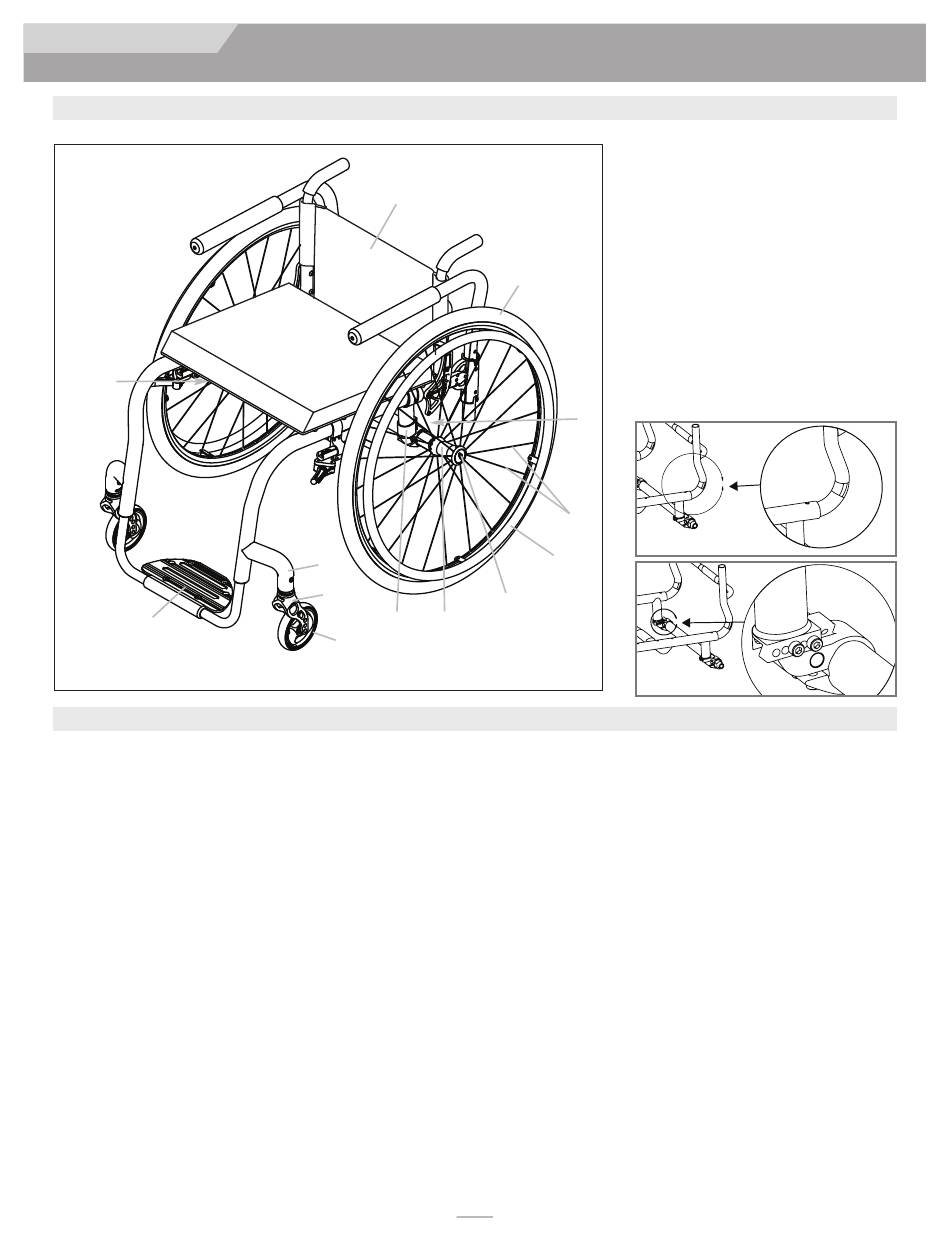

III. YOUR CHAIR AND ITS PARTS
1. Backrest
2. Tire
3. Seat cushion
4. Seat sling (not shown)
5. Footrest
6. Spokes
7. Rear wheel hub
2
8. Quick-release axle
9. Handrim
10. Axle plate
11. Caster housing
12. Fork
13. Caster wheel
14. Camber tube (not shown)
Active Rigid
14
6
9
8
Quickie Performance wheels
Opt– Spinergy, LX & Spox
Opt– Ultra lightweight
Opt– Mountain
Tire size
Std– 24", 25"
Opt– 20", 22", 25", 26"
Tire types
Std - Pneumatic, Full Poly
Opt - Airless insert, High-pressure clinchers
Hand rims
Std– aluminum
Opt– plastic-coated,
Wheel locks
High-push, high-pull, ergo scissor
