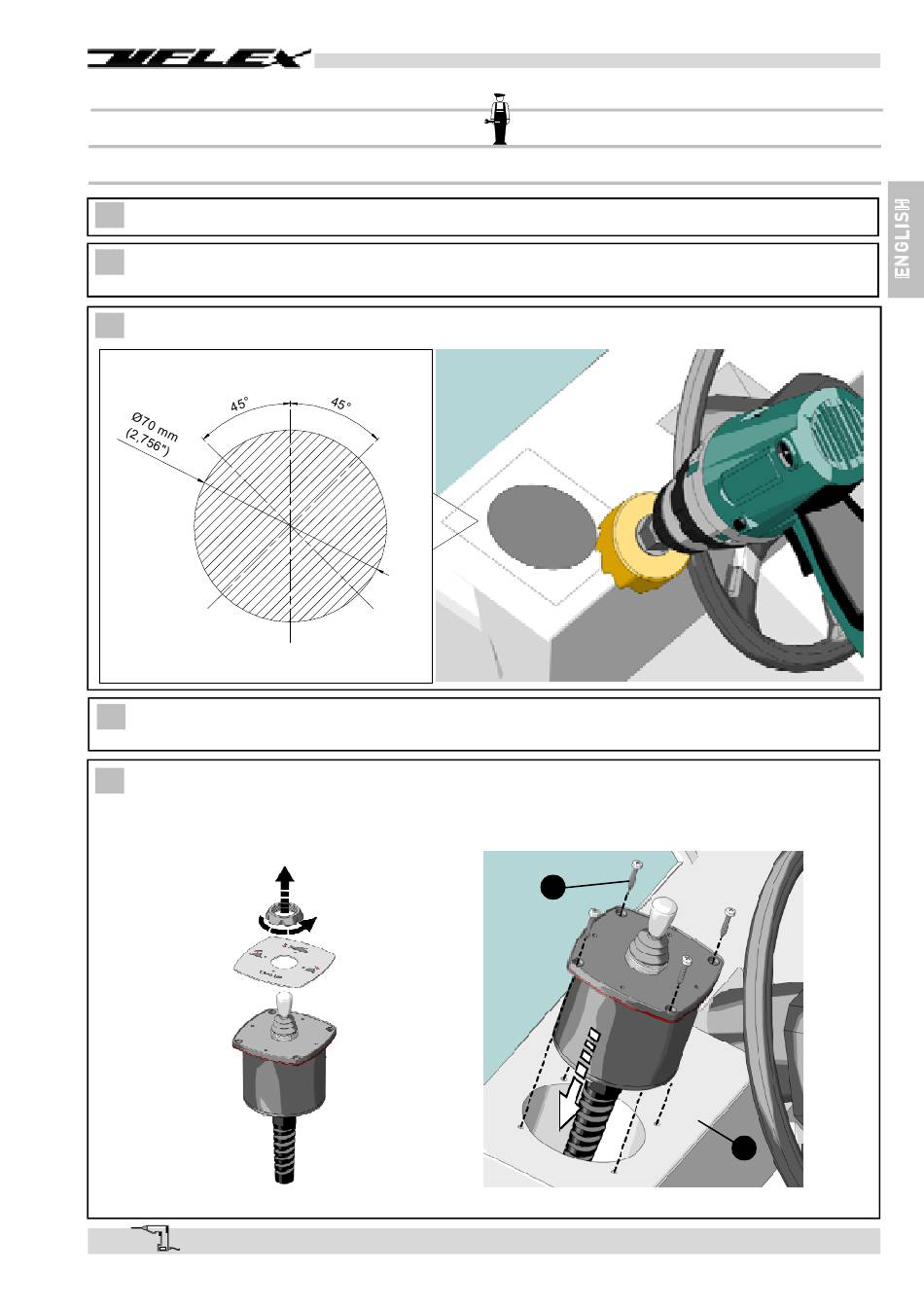

3.3 Joystick installation

3.3 .1 Joystick positioning

1
Position the control panel so that it does not hinder other controls or that it is not hindered by them.
2
Refer to the overall dimensions indicated in paragraph 1.4 to make sure the joystick panel can be
installed in the chosen position.
3
After choosing the right position, make the hole to insert the control panel with the template provided.
4
Before fixing the joystick to the dashboard, connect the electric cables following the instructions of
chapter 5.
5
Unscrew the plated ring nut counterclockwise, insert the joystick in its seat on the dashboard (2)
and, by means of the four self-tapping screws (F)(1), insert the plated ring nut completely and turn it
clockwise until it is properly locked.
PRUA
BOW
POPPA
STERN
Installation and maintenance manual
1
ELECTROMECHANICAL TRIM TABS
2
page 15
-
of 83
