RIA452
Display elements
Operating elements
Remote operation
Endress+Hauser
10.0.7 Human interface

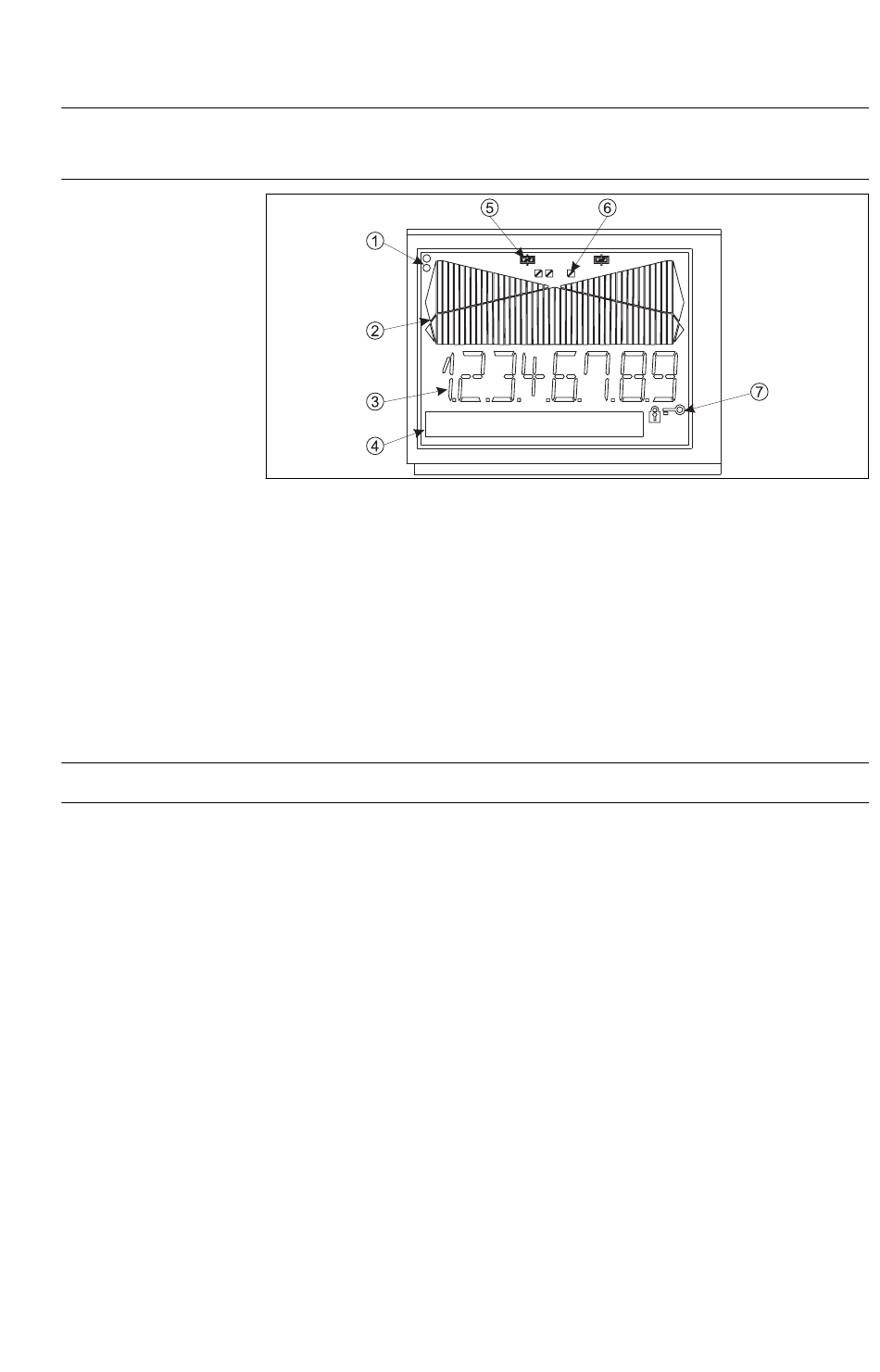

Fig. 26: LC display of process display unit
Pos 1: Device status LEDs: green - device ready for operation; red - device or sensor malfunction
Pos. 2: Bargraph with overreach and underreach
Pos. 3: 7-digit 14-segment display
Pos. 4: Unit and text field 9x77 dot matrix
Pos. 5: Limit value flags 1...8
Pos. 6: Status display, digital inputs
Pos. 7: Symbol for 'device operation blocked'
• Display range
-99999 to +99999
• Signalling
– Relay activation
– Measuring range overrange/underrange
Jog/shuttle dial
Configuration
The device can be configured with the PC software ReadWin
Interface
TDL interface at device; connection to PC via USB box (see 'Accessories')
RS232 interface at device; connection with serial interface cable (see 'Accessories')
Technical data
®
2000.
