Wiring
60
Current input 0/4...20 mA
active sensor
Y
-

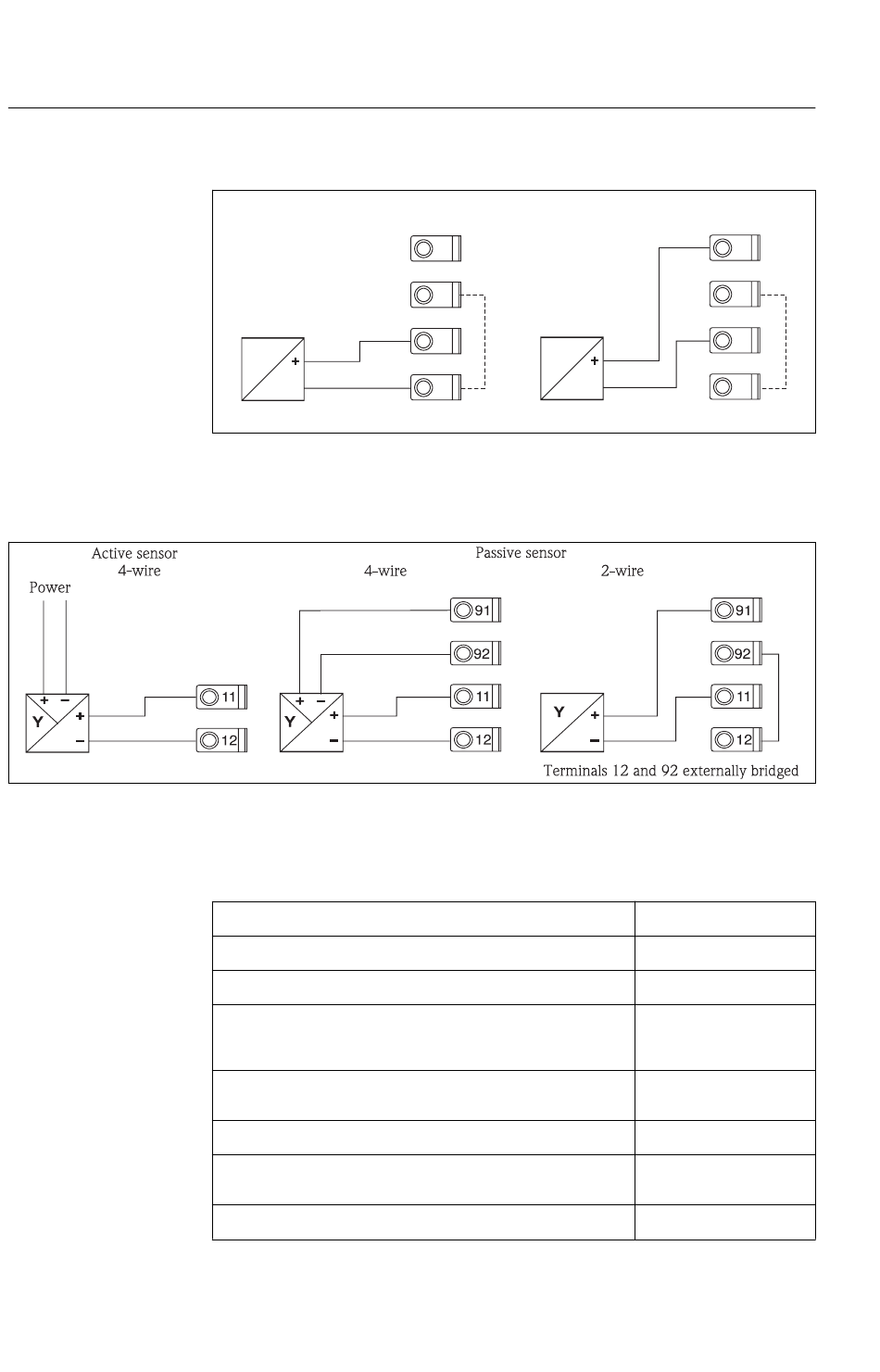

Fig. 7: Connecting a 2-wire sensor to current input 0/4...20 mA
Universal input
Fig. 8: Connecting a sensor to universal input
4.3

Post-connection check

Device condition and specifications
Is the device or cable damaged (visual inspection)?
Electrical connection
Does the supply voltage match the specifications on the nameplate?
Are all of the terminals firmly engaged in their correct slots? Is the coding on the
individual terminals correct?
Are the mounted cables strain relieved?
Are the power supply and signal cables correctly connected?
Are all screw terminals firmly tightened?
81
82
11
Y
-
12
Terminals 12 and 82 internally bridged
RIA452
passive sensor
81
82
11
12
Notes
-
Notes
90 to 250 V AC (50/60 Hz)
20 to 36 V DC
20 to 28 V AC (50/60 Hz)
-
-
See wiring diagram on the
housing
-
