RIA452
Endress+Hauser
3
Installation
3.1
Installation conditions
The permitted ambient conditions (see Section 10 "Technical data") must be observed when instal-
ling and operating. The device must be protected against the effects of heat.
3.1.1
Dimensions
Observe the device face-to-face length of 150 mm (5.91"). Further dimensions are provided in
Section 10 "Technical data".
3.1.2
Mounting location
Installation in panel with 92x92 mm (3.62"x3.62") cutout (as per EN 60529). The mounting loca-
tion must be free from vibrations.
3.1.3
Orientation
Horizontal +/- 45 in every direction.
3.2
Installation instructions

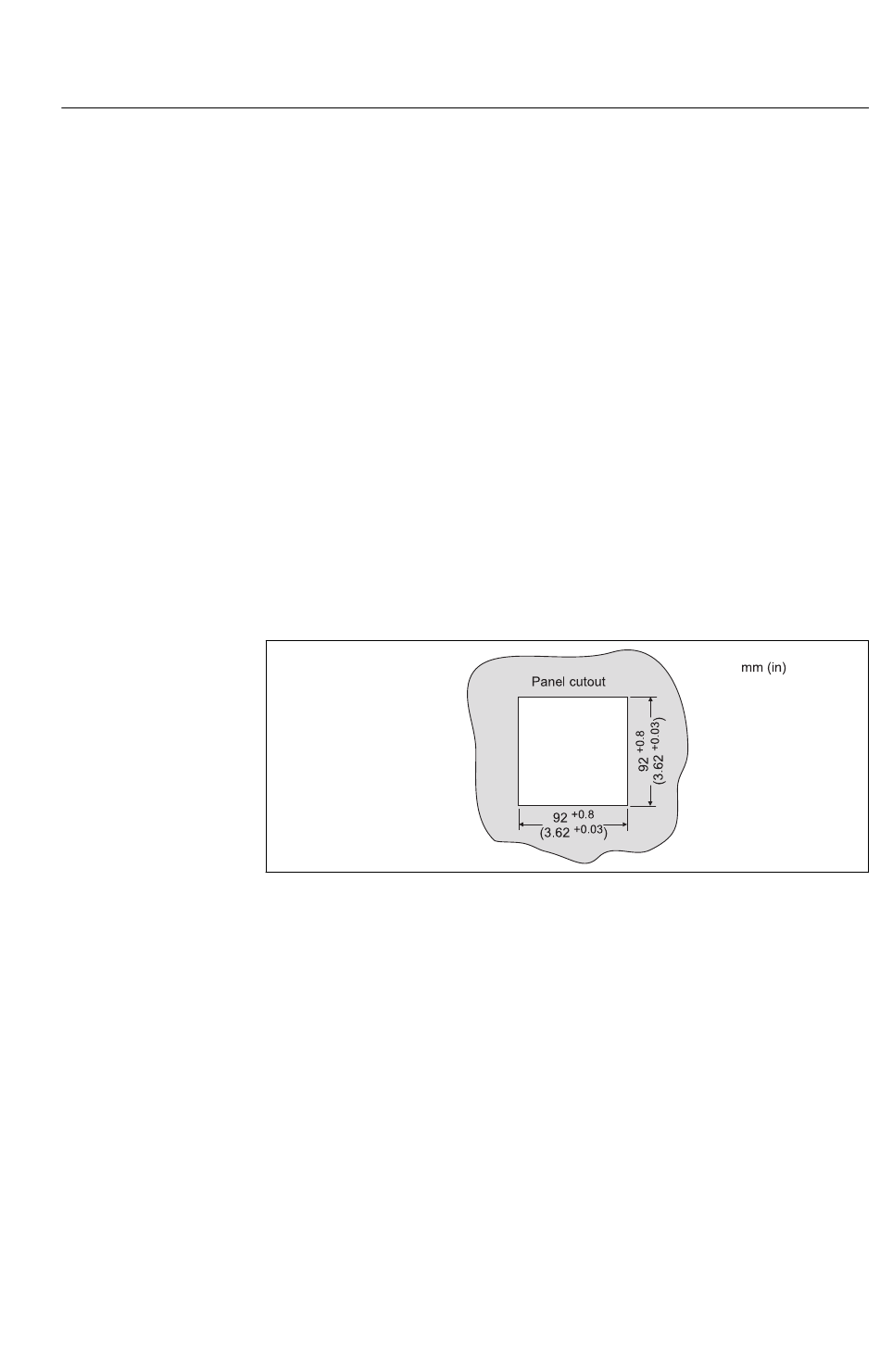

Fig. 3:
Panel cutout (data in mm, data in inches in brackets)
Provide a panel cutout of 92x92mm (3.62"x3.62"). The installation depth is 150mm (5.91").
1.
Push the device with the sealing ring through the panel cutout from the front.
2.
Keep the device horizontal and suspend the two fixing clips in the recesses provided.
3.
Tighten the screws of the fixing clips evenly with a screwdriver.
The dimensions of the process display unit are provided in Section 10 "Technical data".
Installation
55
