Installation instructions

Wall mounting

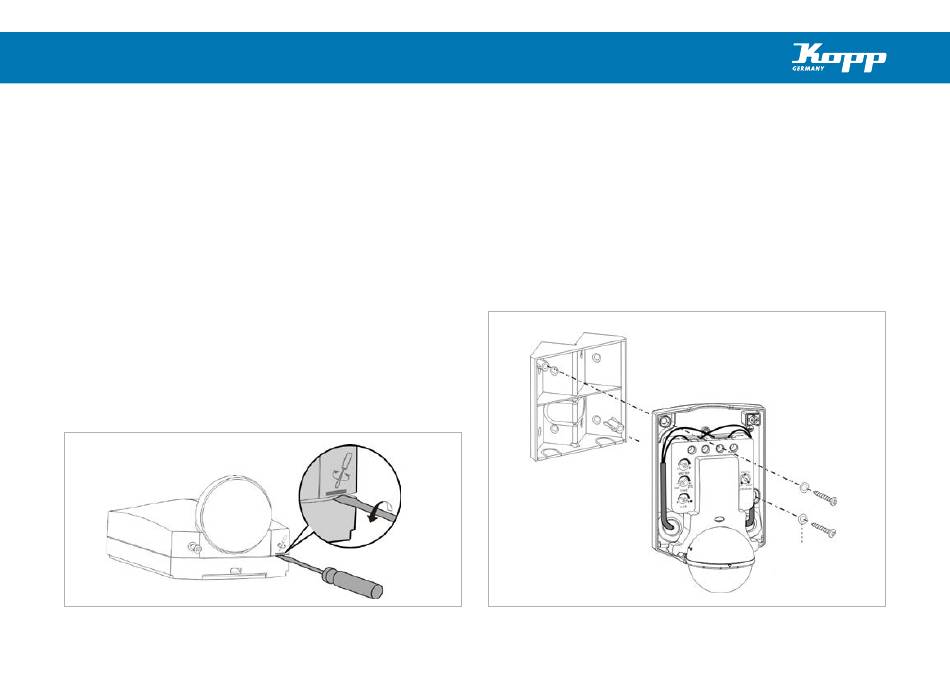

• Remove the upper housing from the device. To do so,
remove the screw (left) and loosen the upper housing
using a suitable slot screwdriver (right).
• Hold housing base/mounting plate or corner bracket and
mark drill holes
• Drill holes measuring Ø 6 mm and push in plugs
• If necessary, break out cable feed-through at the
motion switch
• In the case of corner mounting, the cable feed-throughs
are also to be broken through at the corner bracket
• Feed the connecting cable through the cable feed-th
rough/rubber seal of the motion switch
• The cable entry point must be perfectly sealed!
• Screw on the housing base/mounting plate or corner
brackets
• Place the motion switch upper housing on the housing
base/mounting plate and screw it on. Make sure that the
upper housing snaps in and is flush.
Rubber
seal
