Range fine setting (sensitivity)

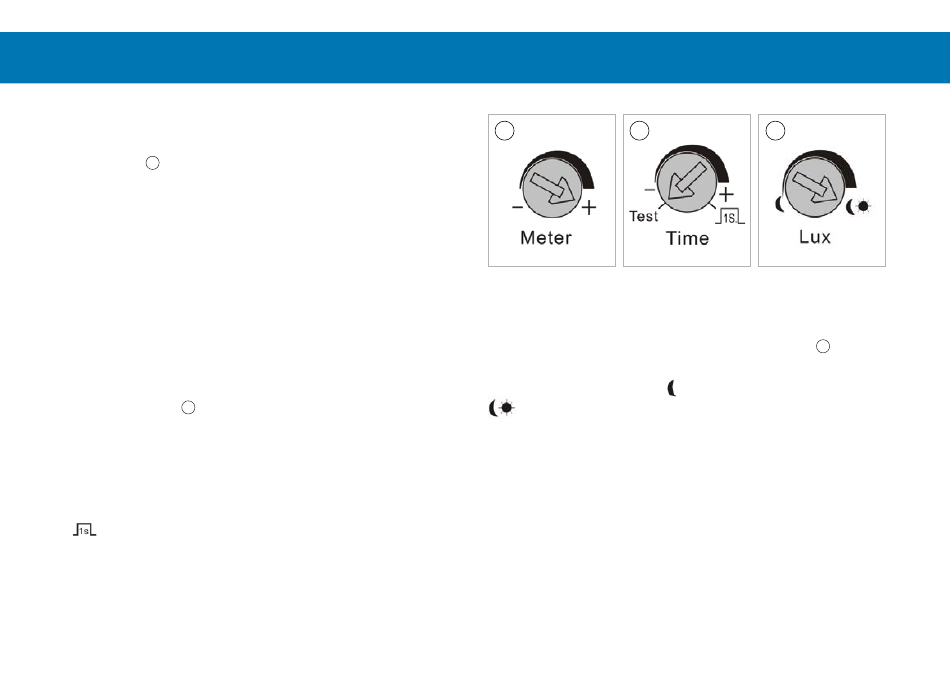

Set the desired sensitivity setting using the setting screw
for "meter" . The setting is continuously adjustable from
1
min. 0.5 m up to max. 10 m.
Setting screw fully turned to the left means:
• Lowest sensitivity (approx. 0.5 m)
Setting screw fully turned to the right means:
• Highest sensitivity (approx. 10 m)
The specified values correspond to approximately values
and are subject to technical deviations.
Set the on-time (switch-off delay)
Set the desired switch-on duration at the adjustment
screw for "Time" . The setting is continuously adjusta-
2
ble from 6 seconds to 10 minutes.
"Test": Setting for "walk test" (see page 13)
"-": Shortest switch-on duration" (approx. 6 seconds)
"+": Longest switch-on duration (approx. 10 minutes)
" ": Pulse output, (1 s "on", 9 s "off"),
E.g., to switch a staircase relay
The specified values correspond to approximately values
and are subject to technical deviations.
70
1 2
Setting the twilight threshold
Set the desired brightness value of the motion switch
manually using the adjustment screw for "Lux"
desired brightness value using the setting screw continu-
ously between the values
(∞, day mode).
In direct sunlight, the brightness is above the setting limit,
i.e. the motion switch no longer responds.
The specified values correspond to approximately values
and are subject to technical deviations.
3
. Set the
3
(approx. 5 Lux, night mode) to
