Connecting Alarms

A1,A2,A3,A4 (Alarm Input 1,2,3,4)
You can use external devices to signal the dome camera to react on events. Mechanical or
electrical switches can be wired to the A1,A2,A3,A4 (Alarm Input 1,2,3,4) and G (Ground)
connectors.
GND (Ground)
All the connectors marked G or GND are common. Connect the ground side of the alarm
input and/or alarm output to the GND connector.
AO1,AO2 (5VTTL Alarm Output 1,2)
The dome camera can activate external devices such as buzzers or lights. Connect the
device to the AO1,AO2 (Alarm Output 1,2) and G (Ground) connectors.

Connecting the Power

Connect power of 12VDC for the dome camera.
When using a 12VDC adapter, connect the positive (+) pole to the '+' position and the
negative (-) pole to the '-' position.

Getting Started

Once installed apply power to the dome camera. The dome camera will start a configura-
tion sequence.

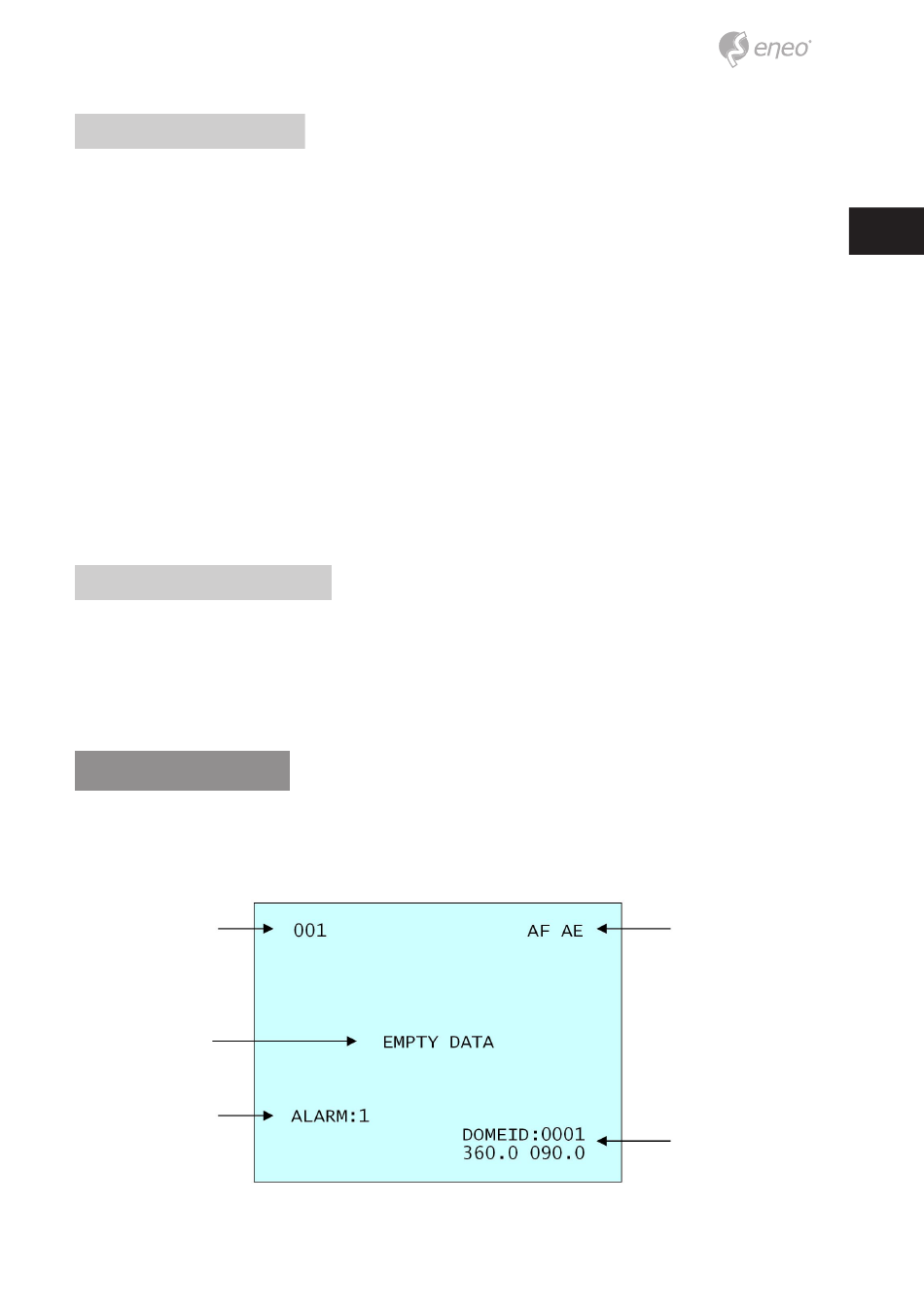

Function title
Information display
Alarm display
Status of
Focus and AE
Camera title & ID
11
EN
