Invacare® Softform Active® 2 Rx

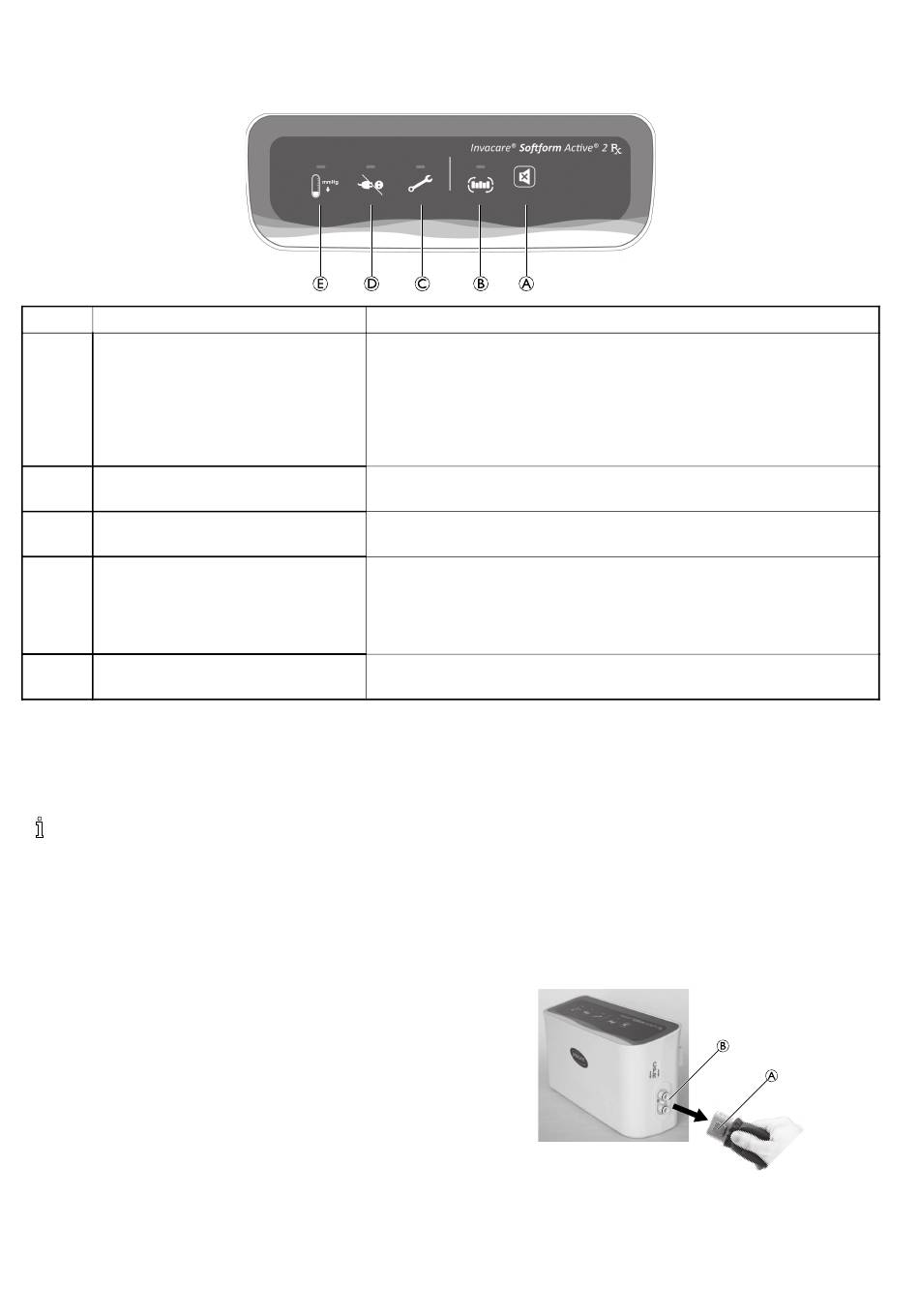

5.2 Control unit menu display

Overview
Pos.
Description
Mute button
A
B System in cycle / Setup indicator
(Operative LED)
C Alternating system / Timing failure
indicator
Power failure indicator
D
Pressure failure / Low pressure
E
indicator
Operation
1. The power indicator will flash and control unit will enter static mode initially until pressure reaches 15mmHg. Then control
unit will enter alternate mode and power indicator will remain on. The cycle time is set at 10 min, and the pressure is
set at 60±3mmHg.
The first inflation of new mattress: the indicator function (visible and audible indicators) will activate if the mattress
does not inflate completely within 15 minutes.
Operation failures
• During control unit operation, low pressure indicator will activate within 1 minutes if air hoses are disconnected or
air cells are broken.
• In the case of abnormal alternate or no alternate, the audible signal will be activated and alternate failure indicator
will flash.

5.3 CPR procedure

The Invacare® Softform Active® 2 Rx mattress has been fully
tested to comply with the current CPR standard of 5- 6
cm compression depth. This was achieved at all stages of
inflation/deflation.
10
A
Function
The relevant audible / visible indicator turns on when low pressure,
power failure or alternate failure is recognised. To mute the audible
signal, press the Mute button. The visible indicator will flash until the
problem is solved. If the problem indicated has not been solved within
10 minutes, the indicator will sound again. Press the Mute button to
mute the audible indication, the indicator will not sound again. Refer to
chapter 8 Troubleshooting, page 15.
Green LED indicator flashes whilst system is setting up – Solid green LED
indicates normal operational.
Red LED indicator flashes and audible buzzer sounds if the system
recognises a cycle time problem.
Red LED indicator flashes and audible buzzer sounds if the system has
no power connected. This could be in the event of a power failure, for
example caused by power cord unplugged or power off when control
unit is working. When power is restored, control unit will automatically
start working.
Red LED indicator flashes and audible buzzer sounds if the system
recognises a low pressure failure.
1. Hold down Red CPR button A.
2. Pull hose connector firmly away from the control unit B.
3. Switch off the control unit.
B
A
