The PosiTector Replica Tape Reader (RTR) is a hand-held
electronic instrument that measures burnished Testex Press-O-
Film replica tape to produce peak-to-valley surface profile height
TM
measurements. It consists of a body (Standard or Advanced) and
probe.
This Quick Guide summarizes the basic functions of the Gage.
Download the full instruction manual at: defelsko.com/manuals
The PosiTector RTR powers-up when the center navigation
button is pressed. To preserve battery life, the Gage powers
down after approximately 5 minutes of no activity. All settings are
retained.
NOTE:
To ensure best accuracy, the user will be required to zero
the probe every time the Gage is powered-up. It is therefore a
good idea to clean the probe regularly with the included cleaning
card. Cleaning is best performed when the Gage is powered down.
With the Gage powered down...
1. Clean the probe with the included cleaning card. (pg. 5)
2. Power-up Gage by pressing the center navigation
3. Zero the probe. (pg. 6)
4. Measure the included check shim to verify accuracy (pg. 5)
5. Measure the burnished replica tape (pg. 4)
Gage functions are menu controlled. To access the Menu, power-
up the Gage, then press the center navigation button.

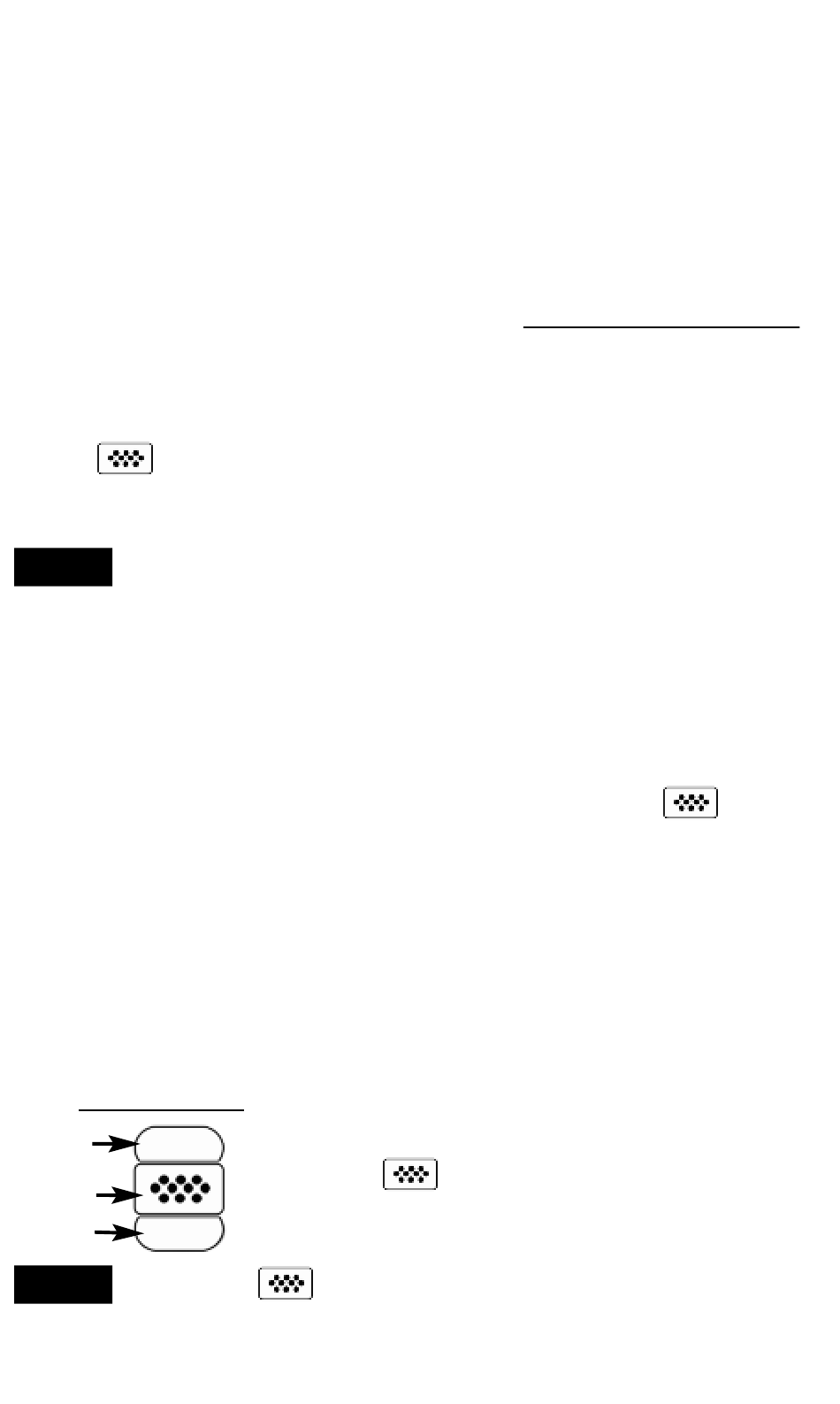

Navigation Button
Up
Center
Down
The center
NOTE:
eliminate unintentional powering-up of the Gage.
Introduction
Introduction

Quick Start

Quick Start

Menu Operation

Menu Operation
To navigate, use the Up and Down buttons to
scroll and
Select Exit to exit from any menu.
button is purposely recessed to help
1
to SELECT.
button.
