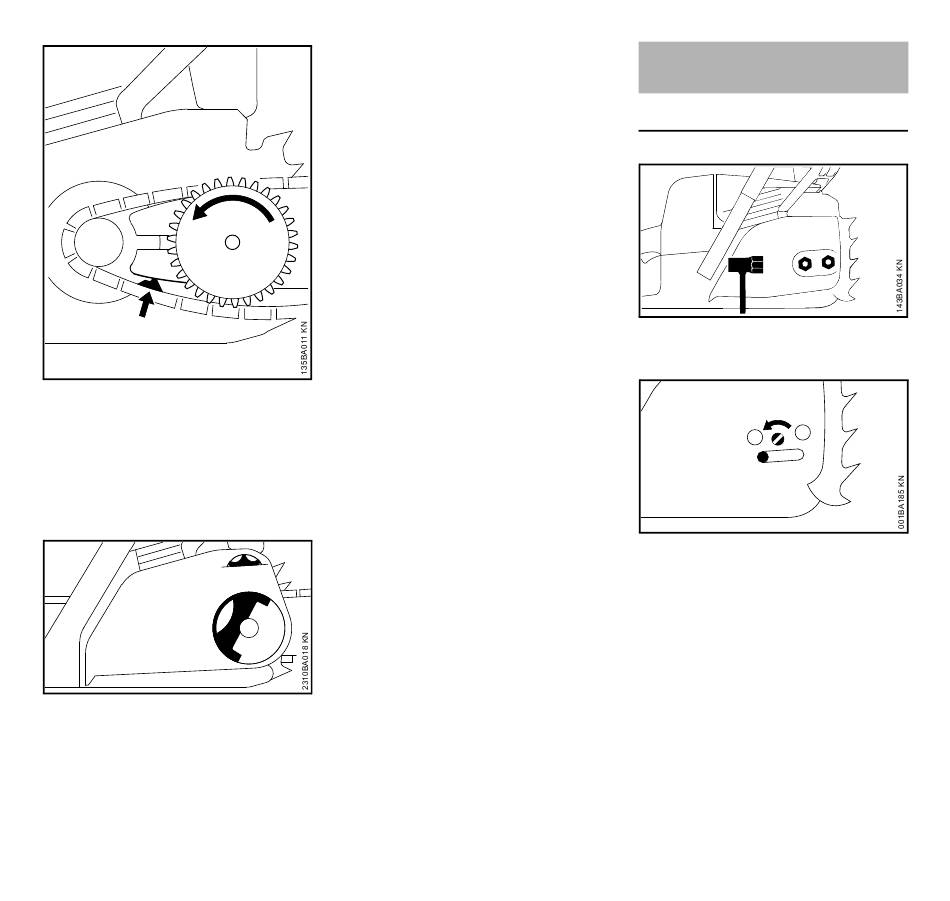

Guide the drive link into the bar
N
groove (see arrow) and turn the
tensioning gear to the left as far as
possible
Fit chain sprocket cover, sliding the
N
guide lugs into the engine housing
openings
5
When fitting the chain sprocket cover,
the teeth of the adjusting wheel and the
tensioning gear must mesh; if
necessary,
MS 170, MS 170 C, MS 180, MS 180 C
turn the adjusting wheel (4) a little
N
until the chain sprocket cover can
be slid completely against the
engine housing
Swing grip (5) into position (until it
N
engages)
Fit wing nut and tighten lightly
N
Next step: see "Tensioning the Saw
N
Chain"
4
Mounting the Bar and Chain
(side chain tensioner)
Removing the chain sprocket cover
Unscrew nuts and remove chain
N
sprocket cover
1
2
Turn screw (1) to the left until the
N
tensioner slide (2) butts against the
left end of the housing slot
English
21
