4.4. Installation with foot (optional)

Observe Fig. 1, Fig. 5, Fig. 6 (page 11, 14, 15).
1. Attach the foot 1 using the screws enclosed 2 to the bottom of the heater.
Please note that the round recess is on the evaporator side.
2. Affix the foot using the screws enclosed to the floor (Fig. 6). Depending
on the floor conditions, use the enclosed wood screws or anchors with
the corresponding screws. Observe the minimum distances for the heater
shown in Fig. 1.
WARNING!
Risk of fire
● Affix the heater with the foot on a sufficiently solid substrate, e.g.
on the substrate onto which the sauna cabin is built – NOT on the
floor covering of the sauna.

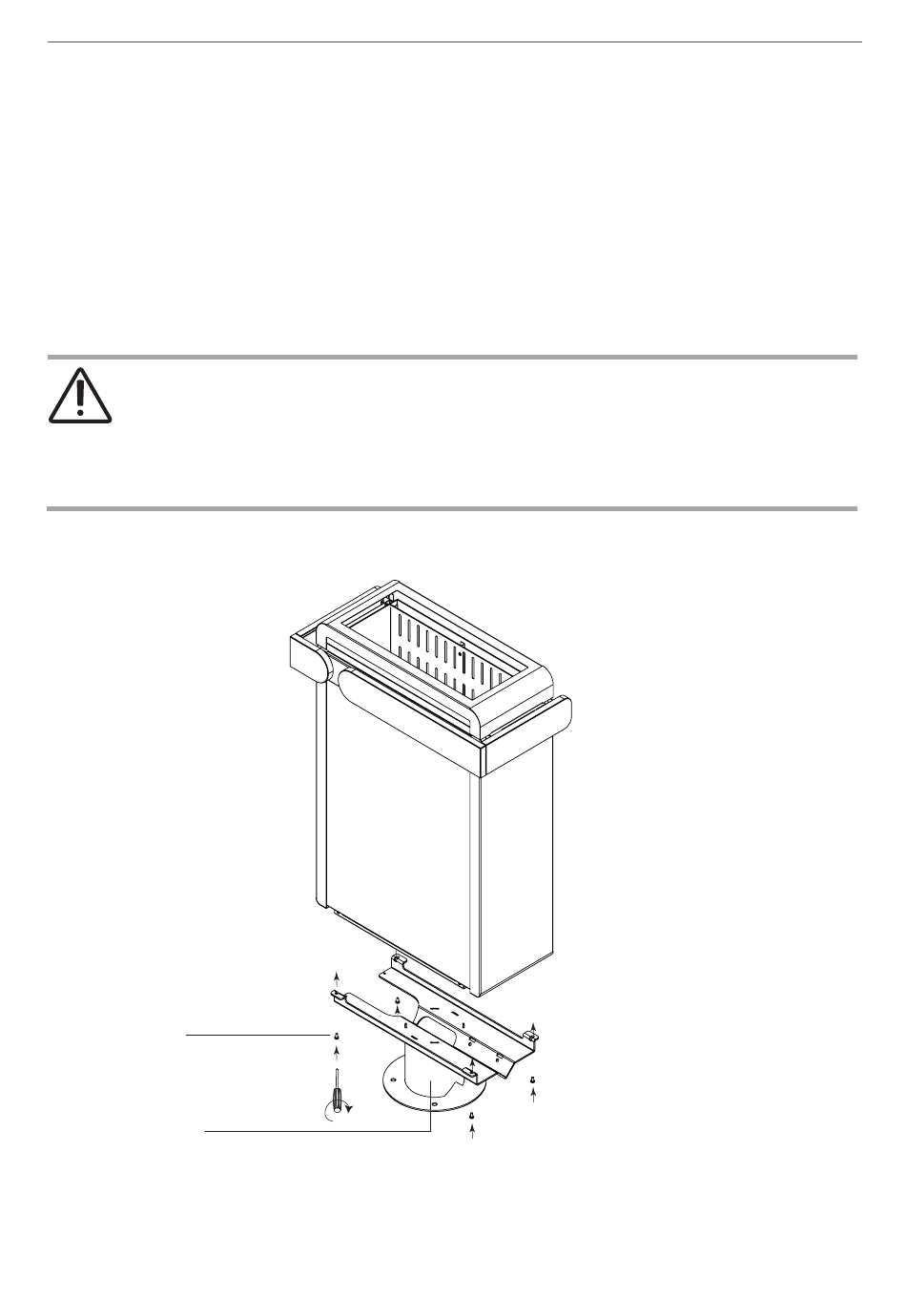

Fig. 5 Installing the foot on the Concept R mini
2
1
