Installation instructions, only for experts

4.9. Electrical connection

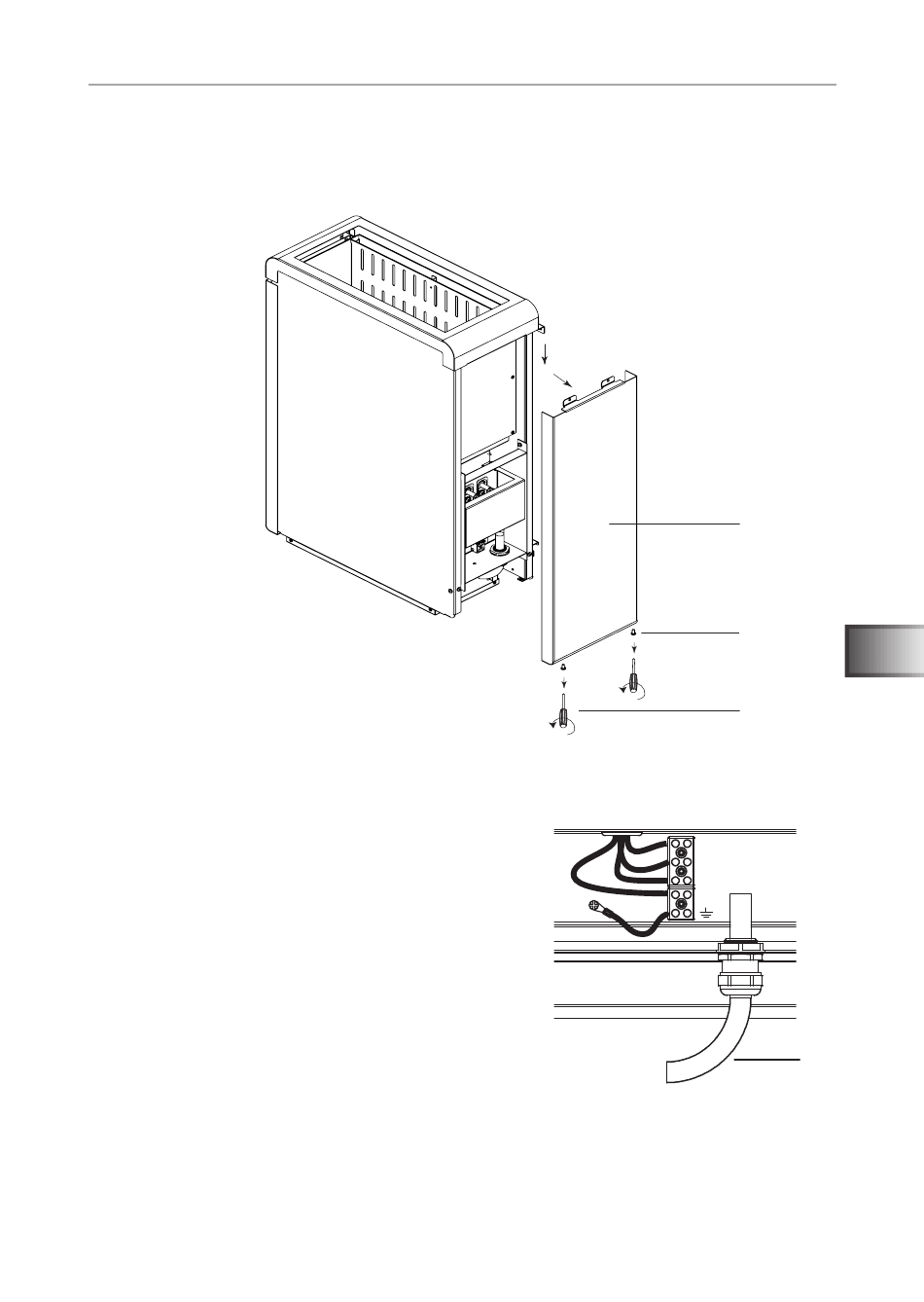

1. Unscrew the screws 2 and 3 with a screwdriver.
2. Remove the cover plate 1.
Connecting the Concept R 3.5 kW, 4.5 kW, 6.0 kW and 7.5 kW
(CP-RM-35 / CP-RM-45 / CR-RM-60 / CP-RM-75)
1. Guide the connection cable through the feed-
through 4.
2. Connect the connectors of the connection
cable to the U – V – W – N – PE terminals
of the sauna heater and to the applicable
sauna control unit terminals. Observe the
installation instructions for the sauna control
unit when doing so.
3. Reattach the cover panel 1 to the heater.
p. 19/28
1
2
EN
3
U
V
W
N
PE
4
