Installation instructions, only for experts

4.3. Installation on the cabin wall

Observe Fig. 1, Fig. 2, Fig. 3 and Fig. 4 (page 11, 12, 13).
1. Attach the mounting rail 1 to the wall horizontally using the wood screws
supplied 2. Observe the minimum distances for the heater shown in Fig. 4.
2. Suspend the heater 3 from the mounting rail from above, moving it down-
wards. Make sure that the heater is flush with the wall.
3. Secure the heater 3 using the lock screws supplied 4 on the mounting rail 1.
WARNING!
Risk of fire
● To fix the heater in place and secure it against slippage, use the
supplied lock screw 4 for attachment.

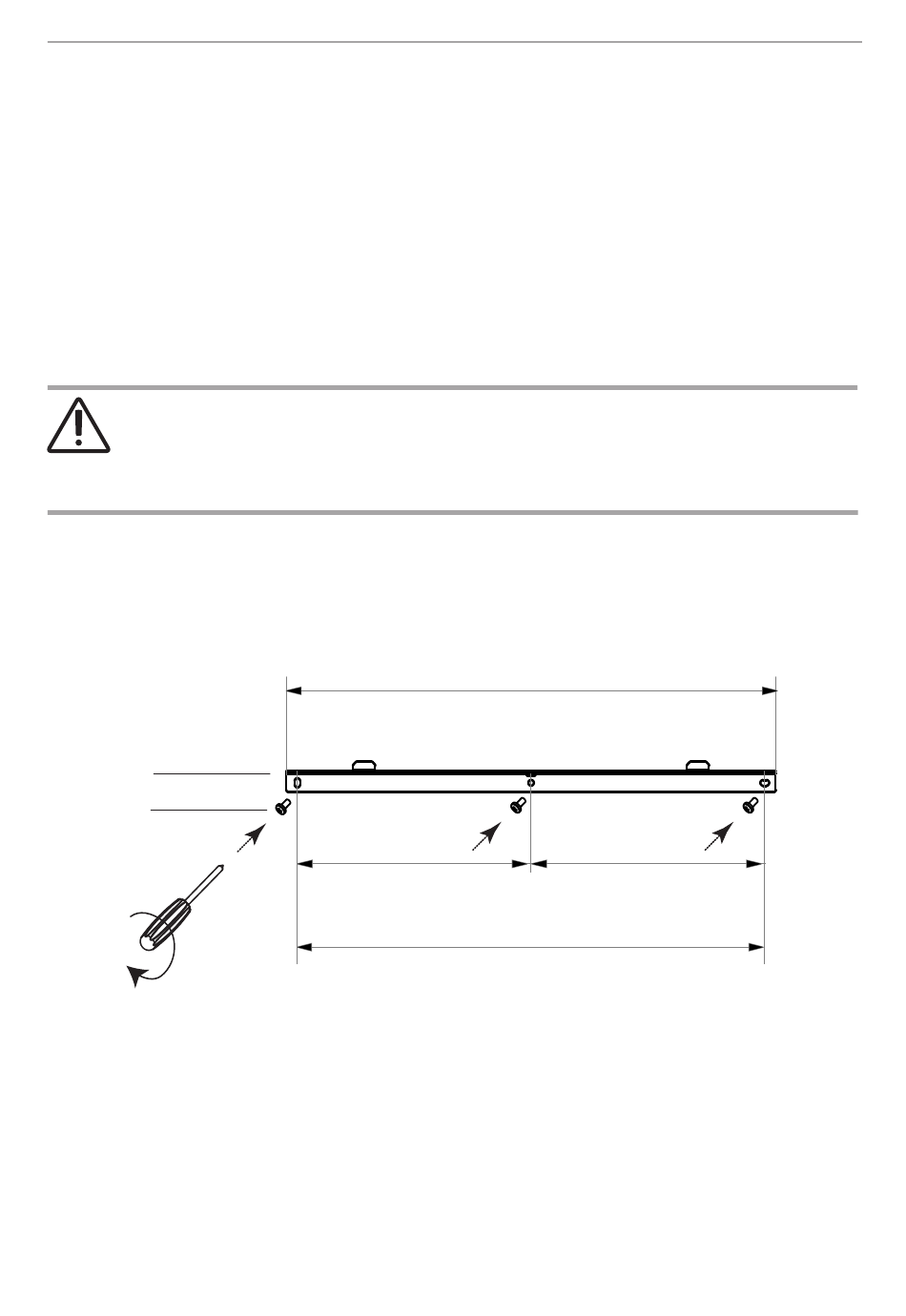

Fig. 2 Position of the mounting rail for Concept R mini
Dimensions in mm
1
2
440
210
420
p. 12/28
210
