Operating instructions

Attention!
!
Follow all the steps of the operating instructions.

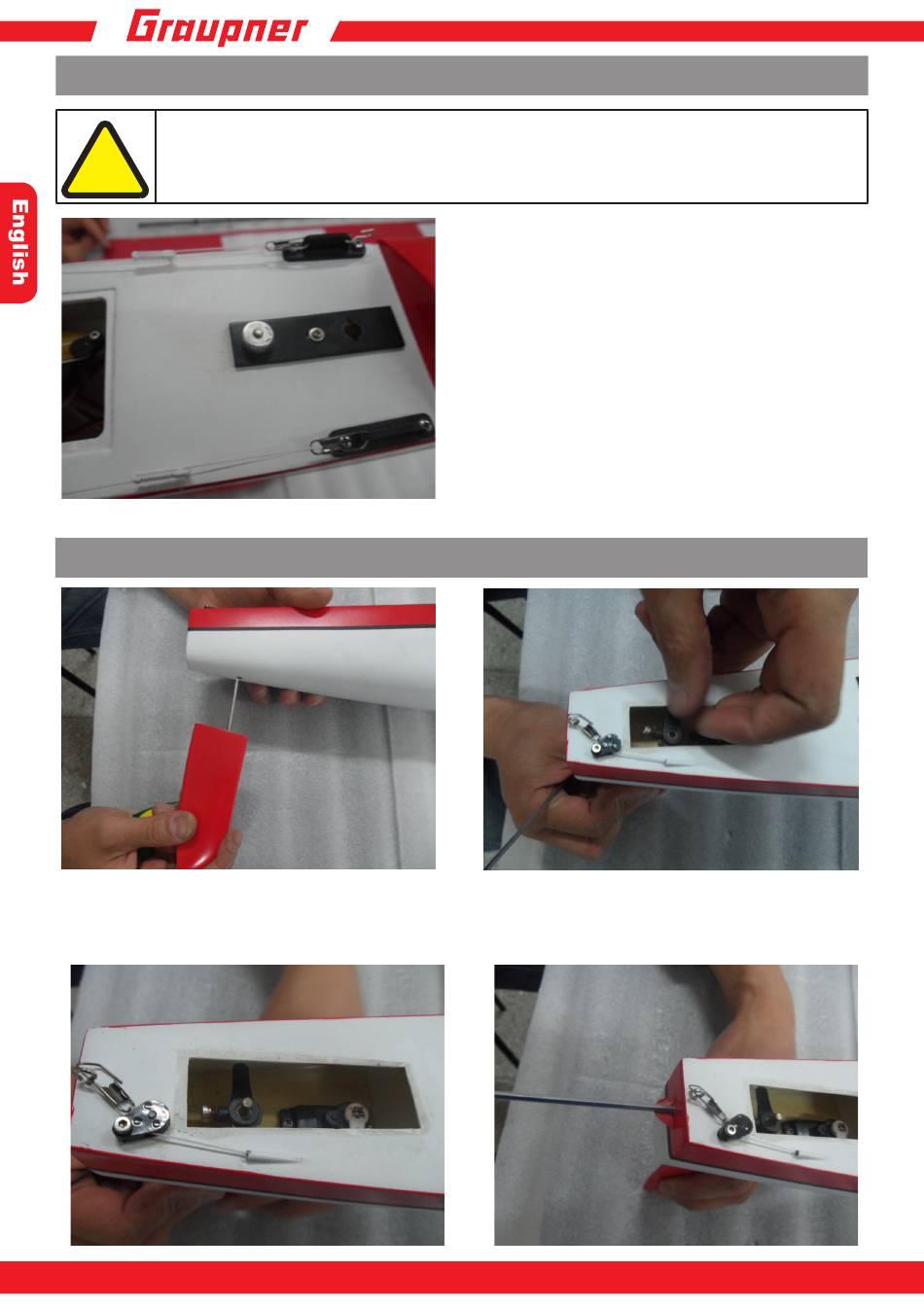

Install the rudder

Now please mount the rudder (4). It is advised to file an area for clamping screw on the rudder
shaft once the position is determined. The tiller of the rudder servo and rudder shaft (10,11,12,13)
are now connected and adjusted. The service openings on the rear and above can now be closed.
28
Loosen the screw on the mast plate (22)
so that is movable. Plug in the mast for testing if
the mast fitts correct. In the mast pocket
at the bottom are two surveys in that the mast
can be put. So arise two basic positions
for the mast base and the trim of the
Sail. Now if you slide the mast plate you can see
how the position can be changed.
Now fix it the mast plate with the screw.
The mast can be aligned the same perpendicular
to the water line.
