Operating instructions

Attention!
!
Follow all the steps of the operating instructions.

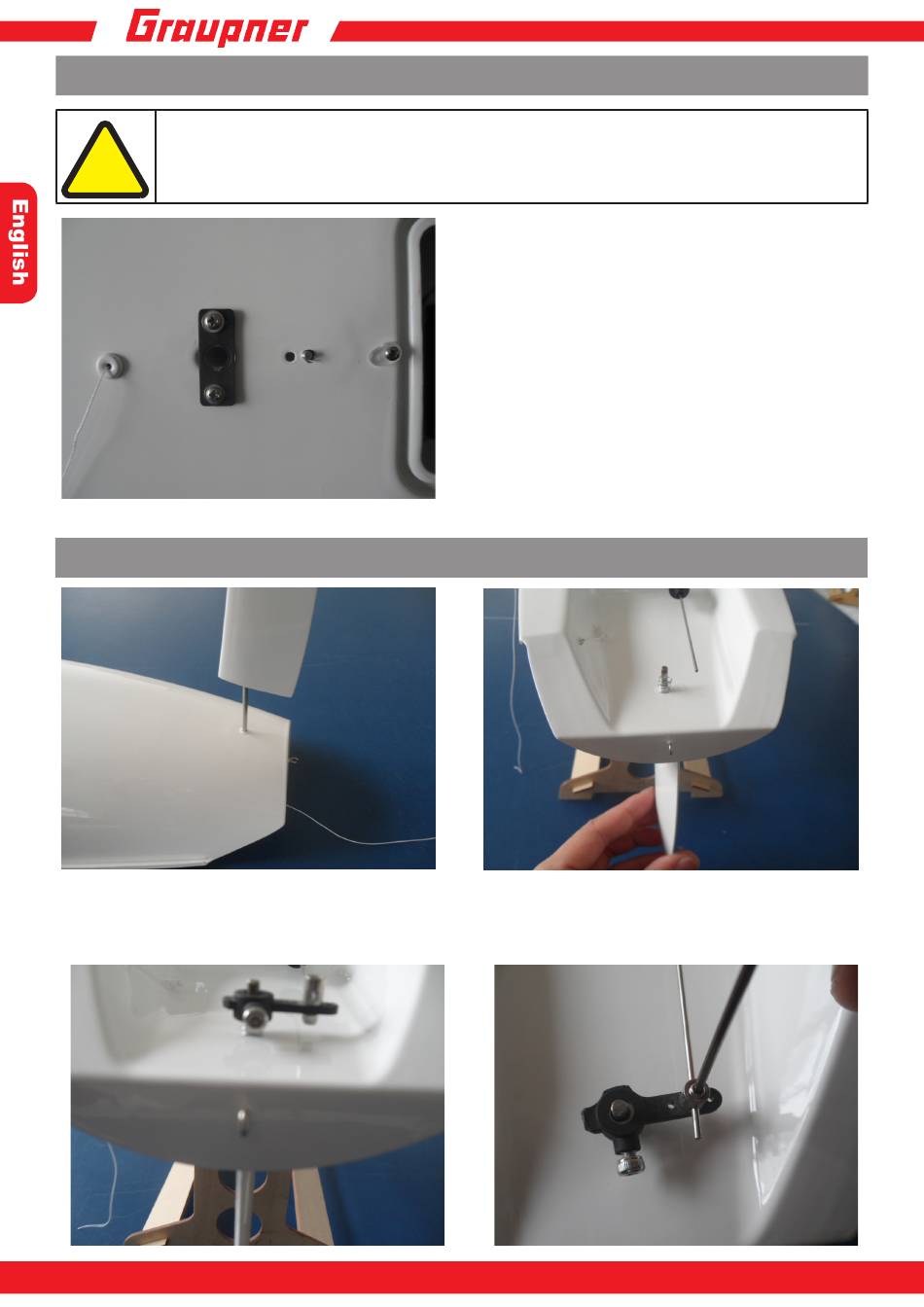

Install the rudder

Now please mount the rudder. It is advised to file an area for clamping screw on the rudder shaft
once the position is determined. The tiller of the rudder servo and rudder shaft are now connected
and adjusted. For better performance, you grind the brass tube on bottom of the hull, plan with the
hull.
34
Loosen the screw on the mast plate so that is mo-
vable. Plug in the mast for testing if the mast fitts
correct. Now if you slide the mast plate you can
see how the position can be changed.
Now fix it the mast plate with the screw.
The mast can be aligned the same perpendicular
to the water line.
