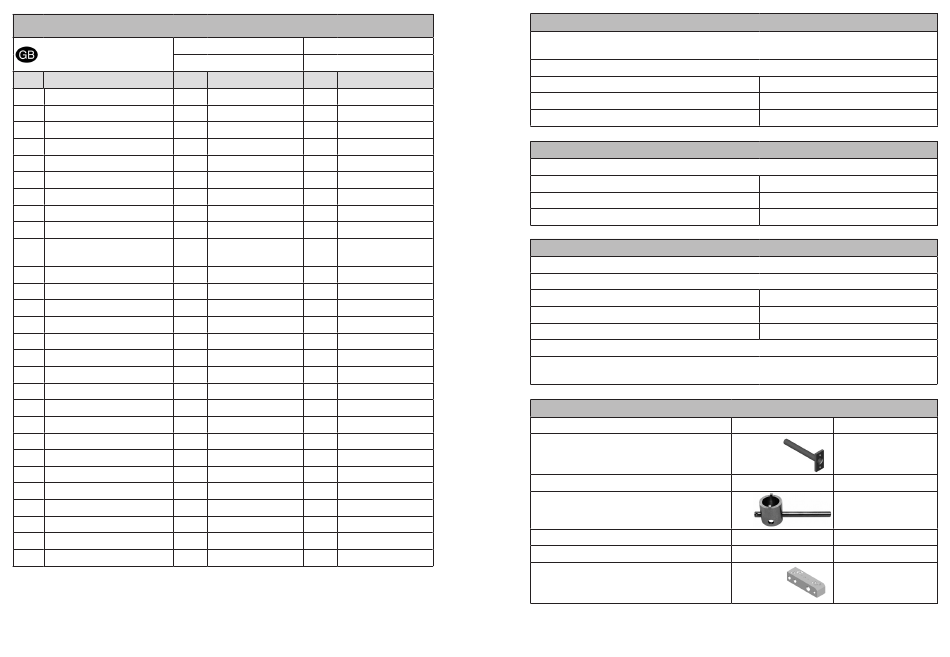

Spare parts list:

GA 9010 Marking
V 21 300 XX XXX
No. Designation Qty
1 Sleeve nut 1
2 Air cap* 1
3 Material nozzle 1
4 Hexagon socket screw 2
5 Front part compl. 1
6 Quick-action coupling 1
7 Plug 2
7.1 O-ring ♦ 2
8 Needle seal 2
♦
Pressure ring for needle
9 1
seal
10 Pressure spring 1
♦
11 Packing screw 1
12 O-ring ♦ 2
13 L-shaped push-in fitting 1
14 L-shaped push-in fitting 1
15 Piston casing compl. 1
16 Symmetrical lip seal 1
♦
17 Piston compl. 1
18 Material needle compl. ♦ 1
19 Needle spring 1
♦
20 Piston spring 1
21 Raster setting compl. 1
22 Backing disc -
23 Clamping bush -
24 Friction bearing -
25 Coupling -
26 Hexagon socket screw -
27 Piston rod compl. -
Nozzle equipment as selected:
▪ 0.3 ▪ 0.5 ▪ 0.8 ▪ 1.0 ▪ 1.2 ▪ 1.5 mm ø
* When ordering spare parts, please specify the appropriate size.
We recommend keeping all parts printed in bold (wearing parts) in stock.
GA 9010 Membrane (MB)
V 21 321 XX XXX
Item number Qty Item number
V 21 300 03 000 1 V 21 300 03 000
see table on page 32 see table on page 32 1 1 see table on page 32 see table on page 32
V 20 336 23 XX3* 1 V 20 336 23 XX3*
V 21 300 07 000 2 V 21 300 07 000
V 21 300 02 000 1 V 21 320 02 000
V 66 100 02 127 1 V 66 100 02 127
V 21 300 18 000 2 V 21 300 18 000
V 09 102 02 007 2 V 09 102 02 007
V 21 300 04 000 - -
V 21 300 05 000 - -
V 20 353 04 000 - -
V 21 300 06 000 - -
V 09 102 20 001 2 V 09 102 20 001
V 66 101 86 353 1 V 66 101 86 353
V 66 101 53 333 1 V 66 101 53 333
V 21 300 01 000 1 V 21 300 01 000
V 21 300 09 000 1 V 21 300 09 000
V 21 300 11 KPL 1 V 21 300 11 KPL
V 21 300 31 XX3* 1 V 21 320 31 XX3*
V 21 300 14 000 1 V 21 300 14 000
V 21 300 15 000 1 V 21 300 15 000
V 21 300 16 000 1 V 21 300 16 000
- 1 V 21 320 05 000
- 1 V 21 320 03 000
- 1 V 21 320 09 000
- 1 V 21 320 10 000
- 6 V 21 320 11 000
- 1 V 21 300 28 000
30

Repair kits

For GA 9010 Marking/-MB automatic marking guns, WALTHER PILOT stocks repair kits con-
taining all wearing parts.
The air head must be ordered separately (page 32).
GA 9010 Marking
GA 9010 Marking-MB
Seal sets
The seal set contains all item numbers marked with ♦.
GA 9010 Marking
GA 9010 Marking-MB
Nozzle / needle sets
The nozzle / needle sets consist material nozzle (3) and material needle (18).
The air head is to be ordered separately (page 32).
GA 9010 Marking
GA 9010 Marking-MB
Nozzle equipment as selected:
▪ 0.3 ▪ 0.5 ▪ 0.8 ▪ 1.0 ▪ 1.2 ▪ 1.5 mm ø

Accessories

Gun holder
Gun grease (pad 8 - 10 g)
Installation tool for air cap nuts
Single block, electrical
GA 9010 flushing gun
Adapter plate
Item number
V 16 300 00 XX3*
V 16 320 00 XX3*
Item number
V 17 213 00 000
V 17 213 20 000
Item number
V 15 300 00 XX3*
V 15 320 00 XX3*
Item number
V 21 300 25 000
V 00 000 00 001
V 20 335 28 003
V 21 300 45 EV1
V 21 328 00 053
2394796
31
