2.2.2 Electrical installation
There are different clock versions: IMPULSE MIN 24V, MIN 1V5 , AFNOR or RADIO.
Refer to the product label to determine which version you have.
The lighting (if option chosen) is always powered via a mains power supply.

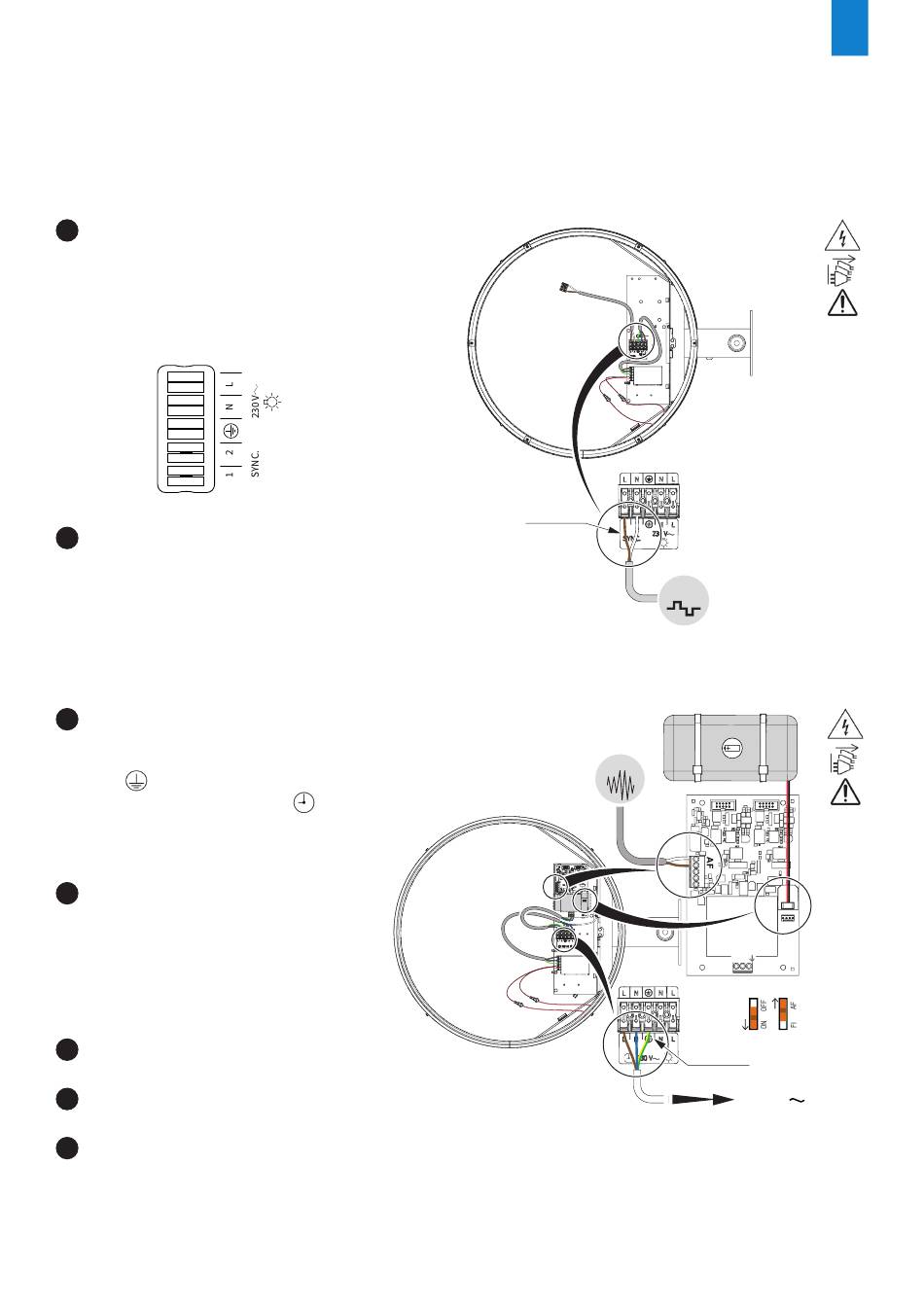

2.2.2.1 IMPULSE MIN 24V - MIN 1V5 model
Run the synchronisation cable through
1
the bracket arm, then connect this
cable to the terminal block in terminals
1 and 2 SYNC.
Make sure to observe the correct
wiring:
white
brown
Attach this cable to the central
2
support with a cable retainer.
2.2.2.2 AFNOR model
Run a mains cable through the
1
bracket arm, then connect this
cable to the terminal block in the
L-N-
terminals dedicated to
the electronic card (icon
clock has the lighting option, the 2
mains cables must come from the
same building.
2
Run the synchronisation power
cable through the bracket arm,
then connect this cable to the
electronic card via the terminal
block stencilled AF.
There is no need to observe
polarity.
Attach these cables to the central
3
support using cable retainers.
Connect the backup battery cable
4
(if available) to the electronic card.
5
Check the position of the dips on
the electronic card (see opposite).
34
white
brown
(Impulse network)
) If the
Ø 1,5 mm
2
IMPULSE
AFNOR
Ø 1,5 mm
EN
L N
DIPs
2
230 V
