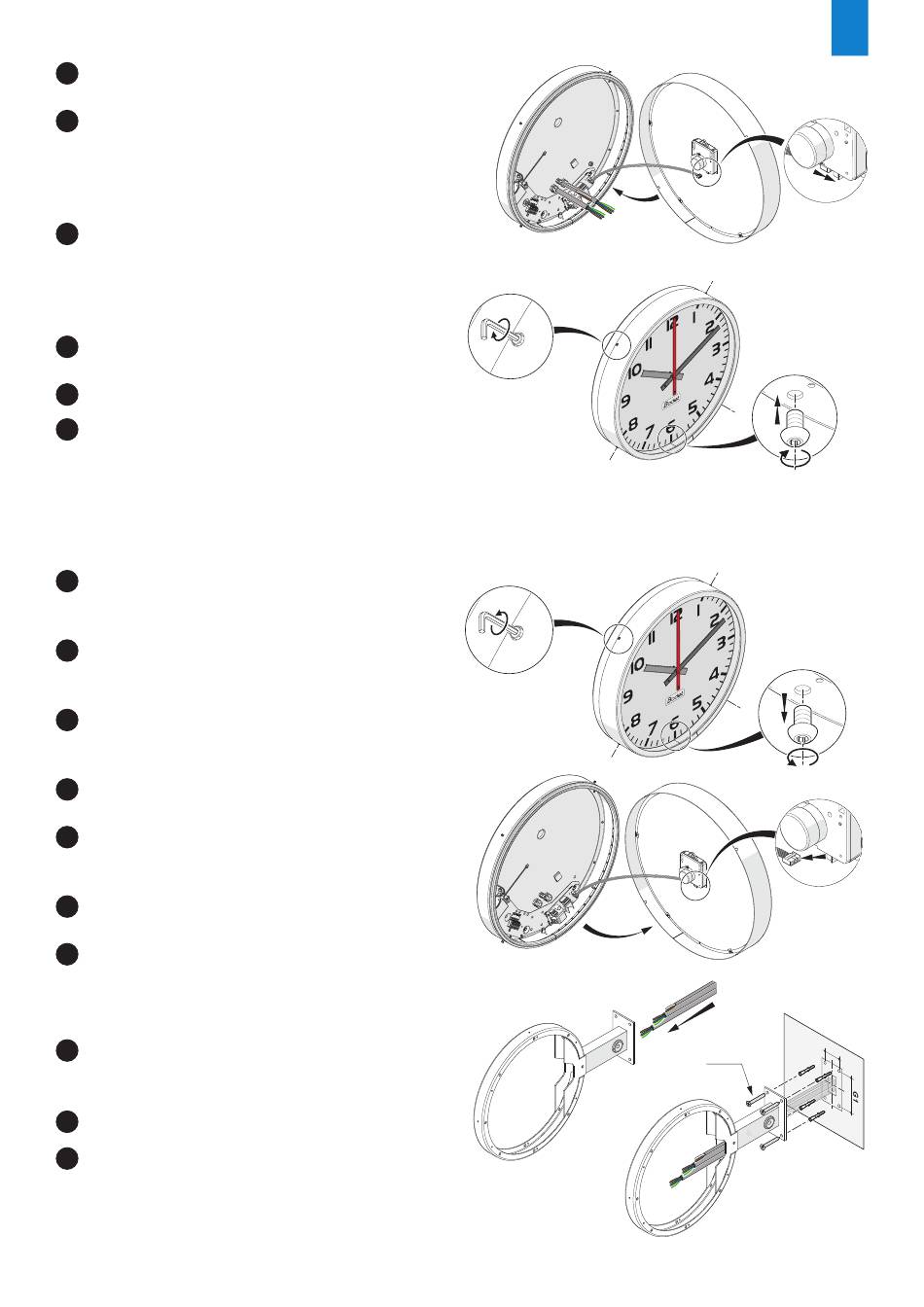

Once the clock has been wired, clean the
15
seal and apply silicone oil on it.
Realign the front face of the clock and
16
reconnect the synchronisation cable from
the terminal block (or the flat cable from the
electronic card) to the movement on the front
face.
Limit the length of the cable by running it
17
through the cable clip in order to avoid
shading in case of the lighting option (con-
tact of the cable with the dial once the clock
is closed).
Close the clock by placing the front face back
18
into its original position.
Tighten the four cover screws (1.2 Nm).
19
Replace and tighten the air inlet screw
20
(15 Nm) located under the clock.
2.1.1.2 Mounting on bracket (optional)
The clock must be previously opened before being mounted onto the bracket.
Follow the steps below to proceed with the mechanical installation of the clock on its bracket.
Unscrew and remove the air inlet screw on
1
the underside of the clock to let air in.
(6 mm Allen key, tightening torque: 15 Nm)
Partially unscrew the four cover screws (two
2
on each side) on the clock.
(3 mm Allen key, tightening torque: 1.2 Nm)
Carefully slide open and partially separate
3
the front face to access the clock's internal
cabling.
Disconnect the cable connected to the front
4
face movement of the clock.
Completely remove the front face and place
5
it on a straight, clean and uncluttered work
surface.
Remove the cardboard wedge between the
6
movement and the dial.
Where the clock is to be installed,
7
drill 4 holes according to the layout and
dimensions indicated below for fixing the
bracket.
In the case of a standard mounting on a
8
concrete wall, insert the wall plugs into the
drilled holes.
9 Run the cables through the bracket arm.
Place the bracket and tighten the wall fixing
10
screws.
26
X4
X4
Ø 8 mm
