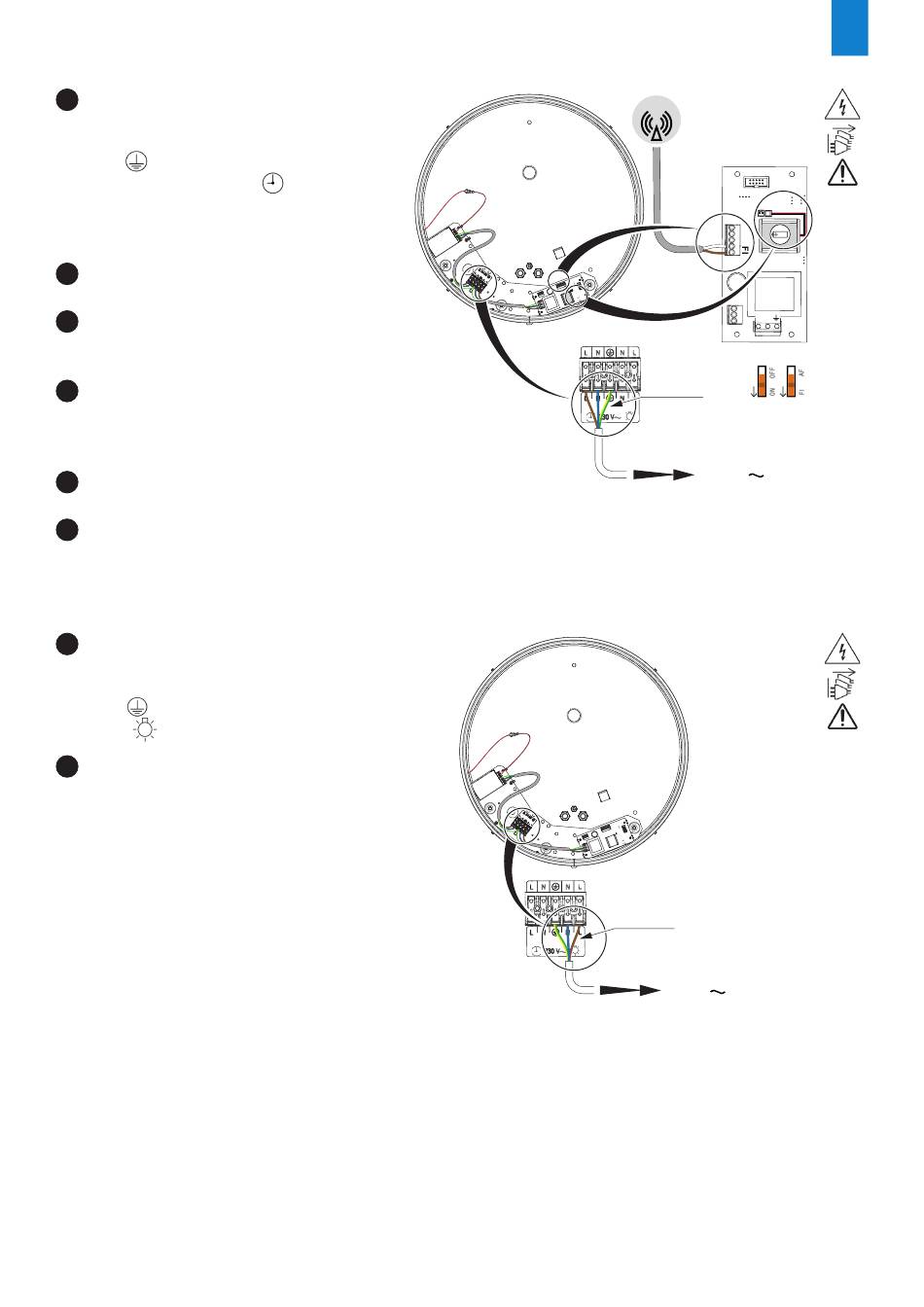

2.1.2.3 RADIO-SYNCHRONISED model
Run a mains cable through the right-
1
hand cable gland then connect this
cable to the terminal block in the
L-N- terminals dedicated to the
electronic card (icon
has the lighting option, the 2 mains
cables must come from the same
building.
2 Connect this mains cable to the
fixing plate with a cable retainer.
3 Run the synchronisation electric cable
from the antenna through the smallest
central cable gland.
Connect this cable to the electronic
4
card via the terminal block
stencilled FI.
There is no need to observe polarity.
Connect the backup battery cable (if
5
present) to the electronic card.
Check the position of the dips on the
6
electronic card (see opposite).
2.1.2.4 Lighting option
Run a mains cable through the left-
1
hand cable gland, then connect this
cable to the terminal block in the
L-N- terminals reserved for lighting
(icon ).
Connect this mains cable to the
2
fixing plate with a cable retainer.
) If the clock
RADIO
L N
DIPs
Ø 1,5 mm
2
230 V
Ø 1,5 mm
2
230 V
