Machine Interface Receptacle with Voltage Divider PCB

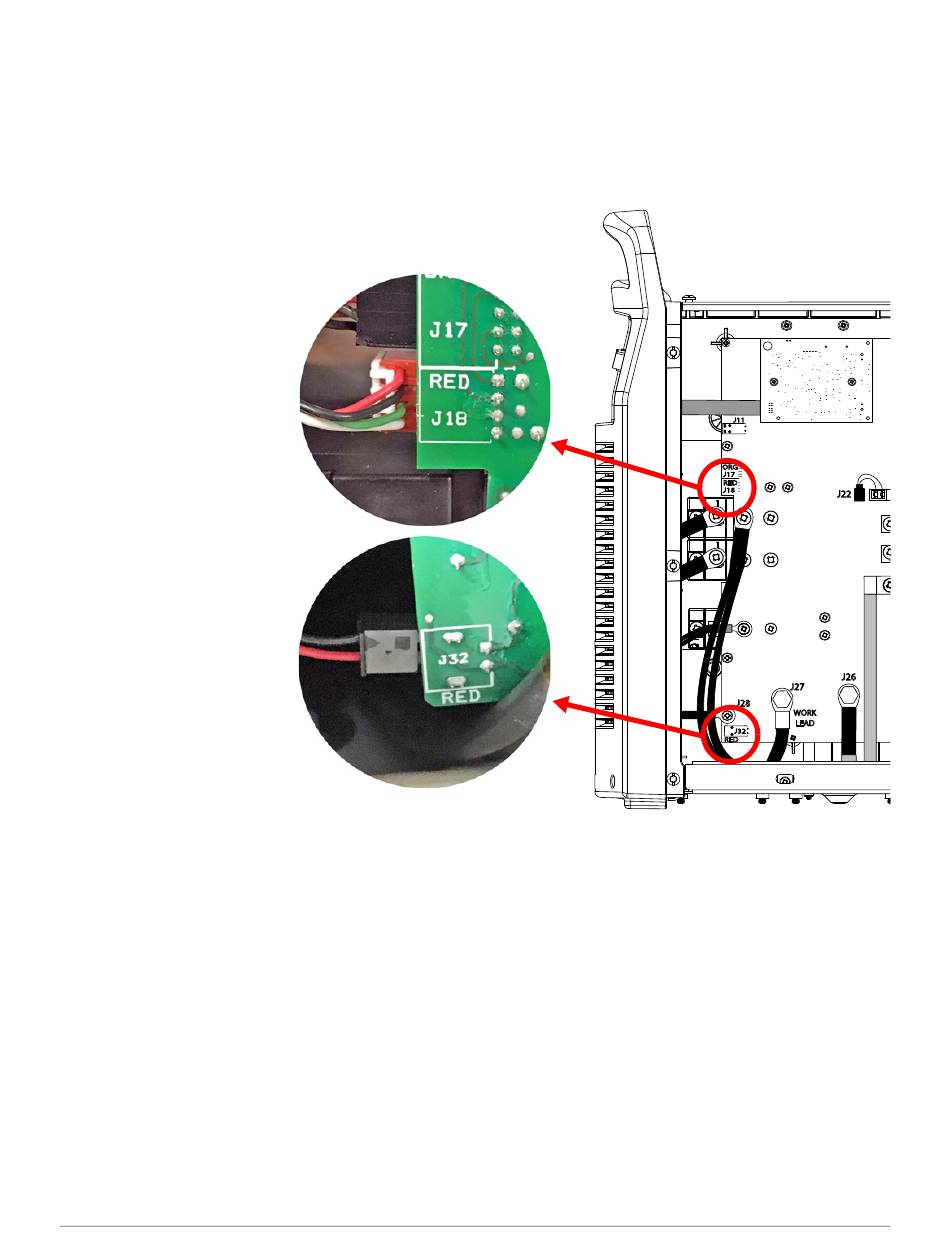

2. From the power PCB side, do the following:
a. Connect the 4-pin connector to the power PCB at J18.
b. Connect the 2-pin connector to the power PCB at J32.
c. For the 2-pin and 4-pin connectors, make sure that the red wire aligns with RED on the
power PCB.
Red wire = top pin
Red wire = bottom pin
3. Install the fan shroud on the fan.
