Detailed inspection
• Identifications and warnings on the product: The system owner has to replace
labels or warnings that are difficult to read immediately.
• Check the compressed air connections.
• Check the lines.
• Check tubing.
• Check the seals.
• Check to make sure that all fittings are properly connected.
• Check the safety devices on the system.
• Check the product functions.
9.2 Cleaning
9.2.1 General requirements
Cleaning intervals
• The system owner specifies the cleaning intervals in line with the ambient
conditions at the operating site.
Aids
• Only clean the product with damp cloths.
• Only use water for cleaning and a mild detergent, if necessary.
NOTICE! Make sure that no water or water mist can enter the product via the
compressed air connections. Penetrating fluids destroy seals and cause dam-
age to the product.
9.2.2 Procedure
1. Close all openings with suitable safety devices so that no cleaning agent can
enter into the system.
2. Remove all dust deposits from the product and the adjacent system parts.
3. If necessary, remove other production-related deposits from the product and
the adjacent system parts.
9.3 Maintenance
In normal ambient conditions, the product is maintenance-free.
9.4 After service
If no damage has been detected and the operator has not reported any malfunc-
tions, the product can be reconnected to the power supply and put back into op-
eration.
10 Disassembly and exchange
Disassembly is only required if the product has to be exchanged, installed in a dif-
ferent location or disposed off.
10.1 Preparation
Implement safety measures. See
u
Tools
• 1x Torx 10 screwdriver
AVENTICS™ PROFINET-IO | 570088-BAL-AA | English
g 6.2.2 Implementing safety measures.
10.2 Procedure

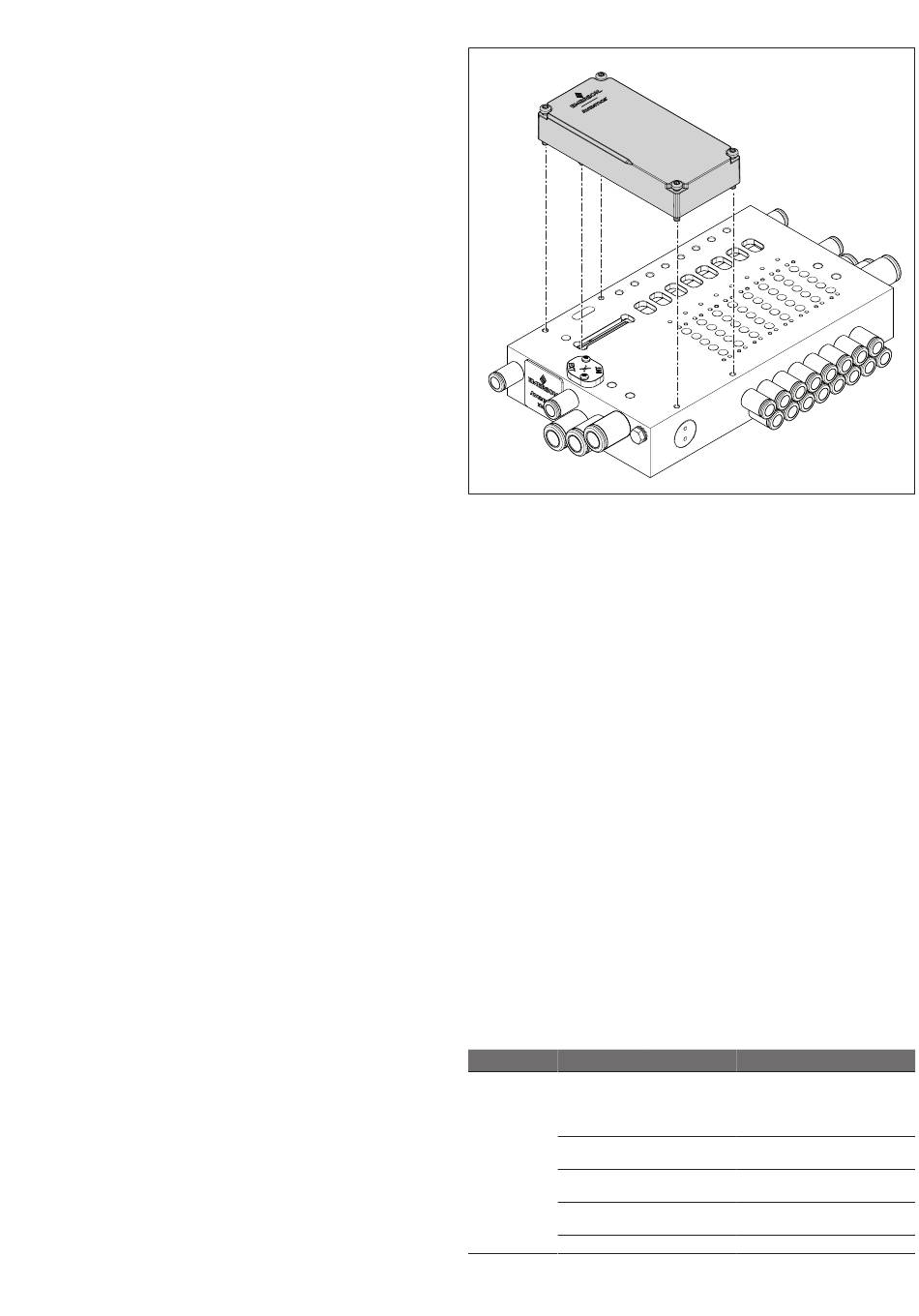

Fig. 6: Disassemble and replace product
Disassembling the product
1. Separate the electrical cables.
2. Release 4 screws at the corners of the product.
3. Lift the product parallel to the base plate.
Replace product
1. Ensure that the seal on the bottom of the product is in the slot.
2. Clean the surface of the base plate. See g 9.2 Cleaning.
3. Insert the product with the transfer plug into the opening of the base plate.
4. Align the product parallel to the surface of the base plate and parallel to the
rear edge of the base plate.
5. Press the product down at the height of the transfer plug.
ð Product lies flat on the base plate.
6. Tighten 4 screws at the corners of the product.
Tightening torque: 0.8 Nm +/- 0.1 Nm.
7. Ensure that there is no gap between the product and the base plate.
8. Connect the electrical system. See
11 Data and parameters
11.1 Notes on safety
• Do not make parameter changes during operation (injury prevention).
11.2 Display
11.2.1 LED display
Designation Color
UL/UA Green
Green
Red
Red
-
g 6.4 Connecting the electrical
State Meaning
Illuminates Supply voltage is greater than 18 V .
Valve supply voltage is greater than
the lower tolerance limit
(21.6 V DC).
Flashes (1 Hz) Supply voltage is greater than 10 V
and less than 18 V.
Flashes (1 Hz) Supply voltage is greater than
26.4 V DC.
Illuminates Valve supply voltage is less than
21.6 V DC
Off Supply voltage is less than 10 V DC.
system.
