Futurelight Scan SC - 530 Mode D'emploi page 21

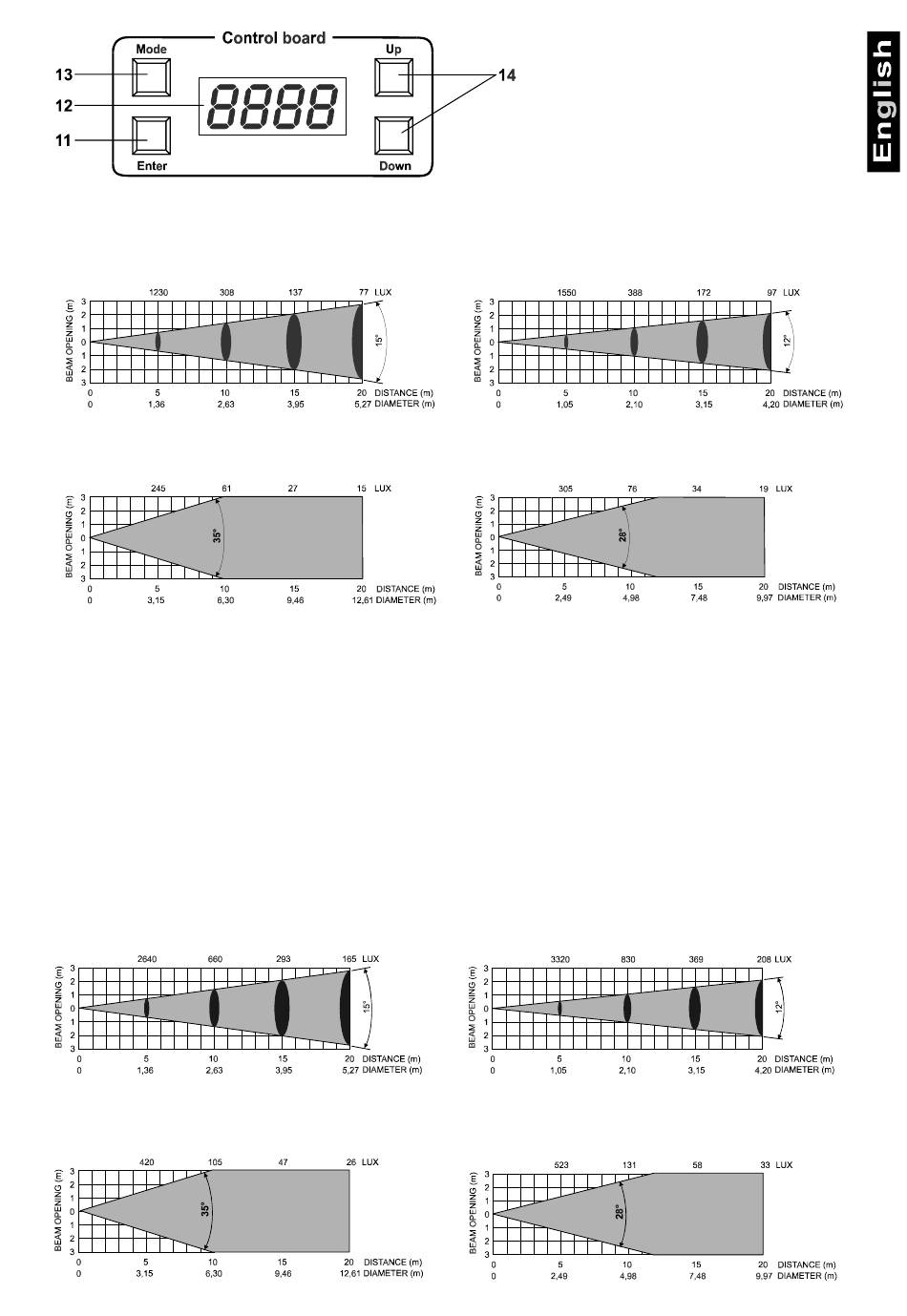

STANDARD WIDE OBJECTIVE
STANDARD WIDE OBJECTIVE WITH FROST
Powerful scanner with the latest technology
11 different, dichroic colour-filtres and white • Via 2 correction-filters, up to 36 different colours and semi-colours
can be created • Rainbow-effect in both directions • Gobo-wheel with 8 gobos, 1 multicolor-gobo (with cyan,
magenta and yellow) and open • Via the combination between multicolor-gobo and color-wheel even more colour-
combinations possible • Strobe-effect with adjustable speed (1-7 flashes/sec.) via gobo-wheel • Correction-filters
3200 K and 5600 K • Frost-filter and rotating 3-facet-prism • 6 high-quality stepper-motors for smooth mirror-
movements • 16-bit-resolution or 8-bit-resolution for the mirror-movements (64 microsteps) • 15°-wide-angle
objective (12° optional) • Reduced noise via adjustable fan-power • Self-resetable thermo-fuse • Integrated control-
unit for digital adjustment of starting-address, lamp-operation, etc. • DMX-control via every standard DMX-
controller • 8/10 DMX-control-channels required • Suitable FUTURELIGHT controllers: CP-64 SC-5 controller,
C-64 MKII controller, C-128 controller, CP-192 controller
STANDARD WIDE OBJECTIVE
STANDARD WIDE OBJECTIVE WITH FROST
Futurelight Scan SC - 530
OPTIONAL NARROW OBJECTIVE
OPTIONAL NARROW OBJECTIVE WITH FROST
Futurelight Scan SC - 570
OPTIONAL NARROW OBJECTIVE
OPTIONAL NARROW OBJECTIVE WITH FROST
2 1
Control board:
11 - Enter-button
12 - Display
13 - Mode-button
14 - Up/Down-buttons
