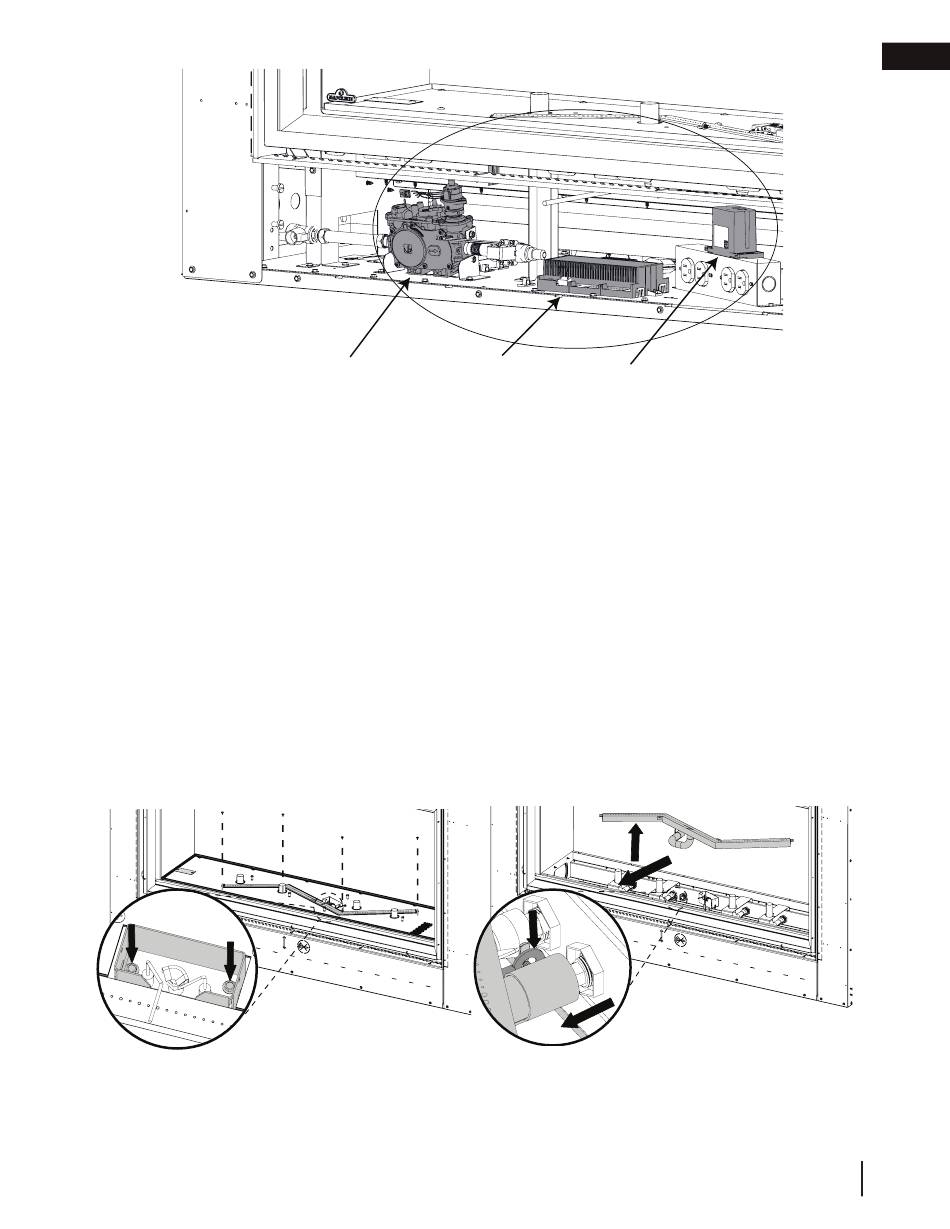

13.3 burner removal
Shut off gas and disconnect electrical supply.
A.
Remove the safety screen and glass door, refer to the "safety barrier installation / removal" and
B.
"firebox glass door installation / removal" sections for details.
Remove the media from the appliance.
C.
Remove the pilot cover by removing 2 screws, refer to "media tray removal" section for details.
D.
Loosen the screws securing the pilot shield (Fig. 1).
E.
Remove the screws that secure the burner to the media tray.
F.
Remove the screws that secure the media tray and lift it out of the appliance, refer to "media tray
G.
removal" section for details.
Disengage the air shutter adjustment rod by lifting it off of the air shutter on the main burner Venturi (Fig.
H.
2). The rubber grommet must stay in place.
Remove the burner by pulling it forward off the orifice and lift it from the appliance. Be careful not to hit
I.
or bend the pilot probe.
control
valve
module
Fig. 1
maintenance
electrical
box Fig. 3
W415-4127 / B-0 / 03.25.24
EN
Fig. 2
