Setting the end limits using the setting controls
click
click
click
Caution
The switch control set is not designed for permanent use, but only for initial
operation.
Connect the flexible leads of the tubular drive to those of the setting controls (product no.
4935 200 011 0) according to the colour coding and switch on the power supply.
Note
If the tubular drive switches off prematurely because it encounters an ob-
stacle, it is possible to release this obstacle by briefly moving the canopy in
the opposite direction, removing the obstacle and then moving the canopy
up or down again to set the new end limit.
Action
a) Point when canopy is extended to point when canopy is retracted without end stop
When the end limits are set using this method, no adjustment is made for
the length of the canopy.

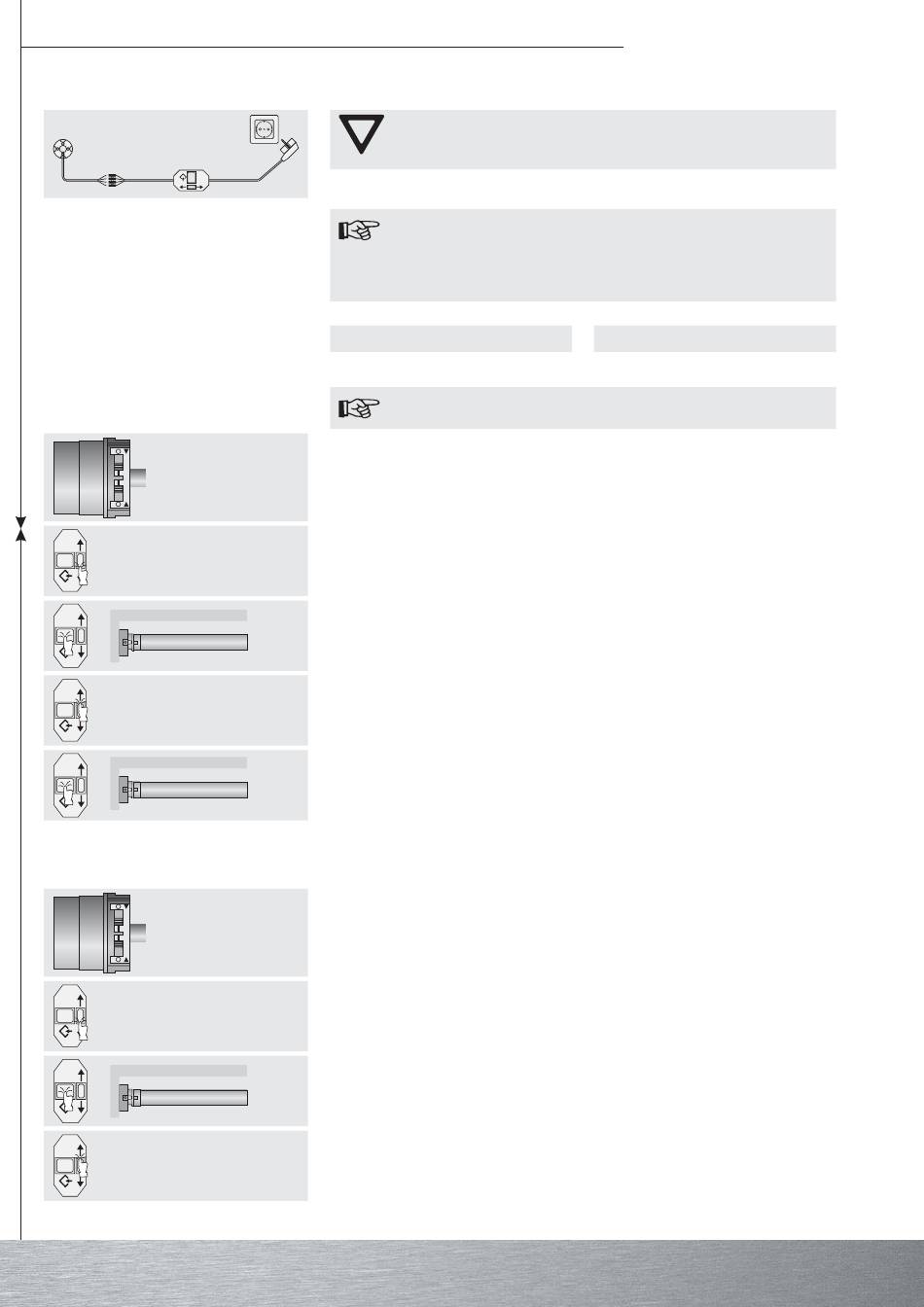

Move both switches to the programming
position.
Move the canopy to the required end limit
when the canopy is extended.
Press the programming button of the set-
ting controls for 3 seconds.
Then move the canopy to the required end
limit when retracted.
Now press the programming button of the
setting controls for 3 seconds.
The end limits are set.
b) Point when canopy is extended to end stop
Move both switches to the programming
position.
Move the canopy to the required end limit
when the canopy is extended.
Press the programming button of the set-
ting controls for 3 seconds.
Then move the canopy up to the upper, per-
manent end stop.
The end limits are set.
22
Operating Instructions
Reaction
This is acknowledged by a click of the tubu-
lar drive.
This is acknowledged by a click of the tubu-
lar drive.
This is acknowledged by a click of the tubu-
lar drive.
The tubular drive switches off automati-
cally.
