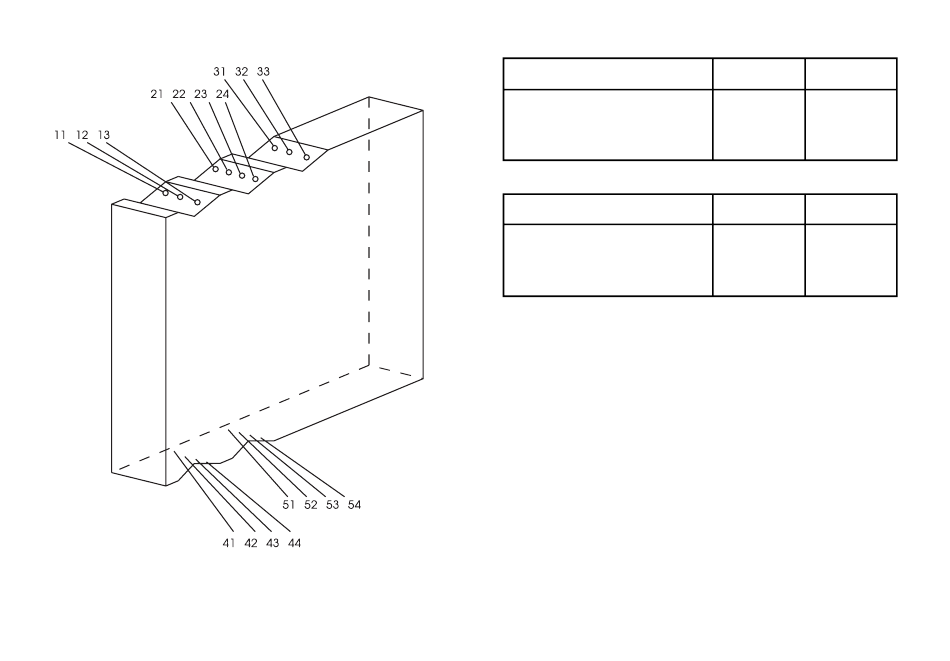

TERMINAL PLACEMENT:
In PRetrans 5111 the input terminals are situated on the bottom of the transmit-
ter. Output and supply terminals are situated on the top of the transmitter.
44
All manuals and user guides at all-guides.com
HARDWARE PROGRAMMING:
DP2: Auxiliary voltage
Loop supply
8 V excitation
2.5 V ref.
DP1: Analogue output
Output ±20 mA
Output ±10 VDC
Output ±1 VDC
PRetrans 5111 is a universal transmitter configured with input and output para-
meters according to your order.
A printout of the configuration from factory is placed inside each PRetrans 5111.
By means of the PReset programme incl. Opto Link type 5901 and a PC you can
configure PRetrans 5111 yourself.
You will find a detailed description in the PReset manual.
The PRetrans 5111 manual contains wiring diagrams, grouped according to input
types. PRetrans 5111 is available in standard and ATEX EEx version as follows:
LED INDICATION
The green LED is flashing during normal operation. The LED is off when commu-
nicating to or from the PRetrans 5111. The yellow LED is on when the relay is
active.
WIRING DIAGRAMS
5111-1- without trip amplifiers and
5111-2- with 2 trip amplifiers.
SW ON
SW OFF
2
1
1
2
-
1, 2
SW ON
SW OFF
4
1, 2, 3
1, 3, 4
2
1, 2, 3
4
45
