SKIRT MAINTENANCE

Preliminary operations

1. Empty the hopper as shown in the relevant paragraph to avoid that the weight of the debris affects the skirt height check.
2. Drive the machine on a level fl oor, suitable to check the skirt height.
3. Turn the ignition key (64) to "O".
4. Engage the parking brake.
Skirt check
5. Open the right (18) and left door (2).
6. Remove the main broom as shown in the relevant paragraph.
7. Check the front and rear skirt of the main broom housing. Replace or adjust the skirt if damaged or worn so that their distance
from the ground is more than 0.2 in (6 mm) (see the procedure in the Service Manual).

DUSTGUARD SYSTEM WATER FILTER CLEANING (OPTIONAL)

1. Drive the machine on a level fl oor, engage the parking brake and turn the ignition key (64) to "O".
2. Disengage the quick coupling (A, Fig. 7) from the tank hoses.
3. Remove the left panel (2) to reach the water fi lter (30).
4. Remove the transparent cover (B) with the gasket (C), then remove the fi lter strainer (D). Clean and reinstall them on the
support (E).
NOTE
Install the gasket (C) and the fi lter strainer (D) in the housings of the cover and the support (E).
5. Assemble in the reverse order of disassembly.
C
D
B
Proterra™
INSTRUCTION FOR USE
A
E

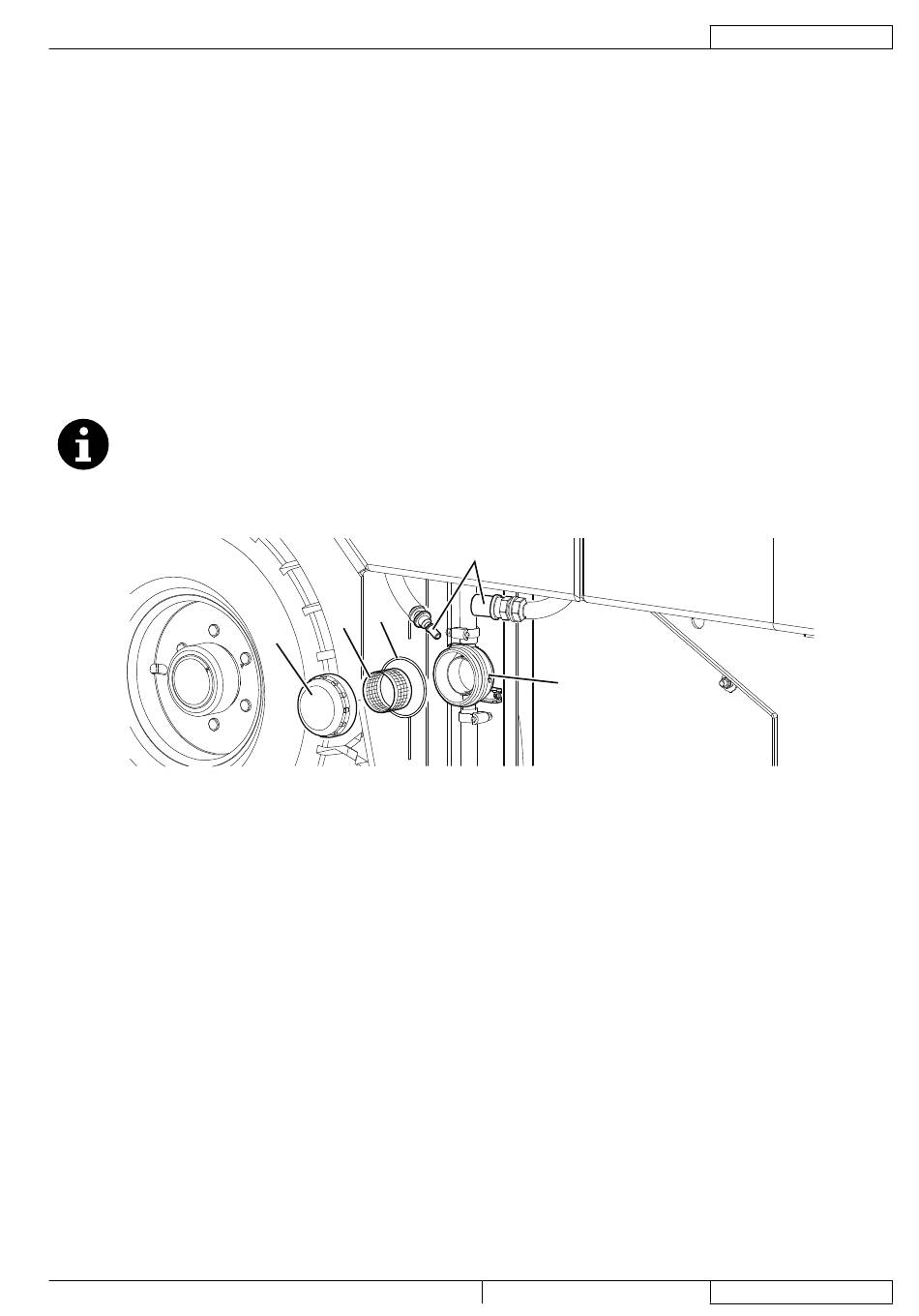

Figure 7
