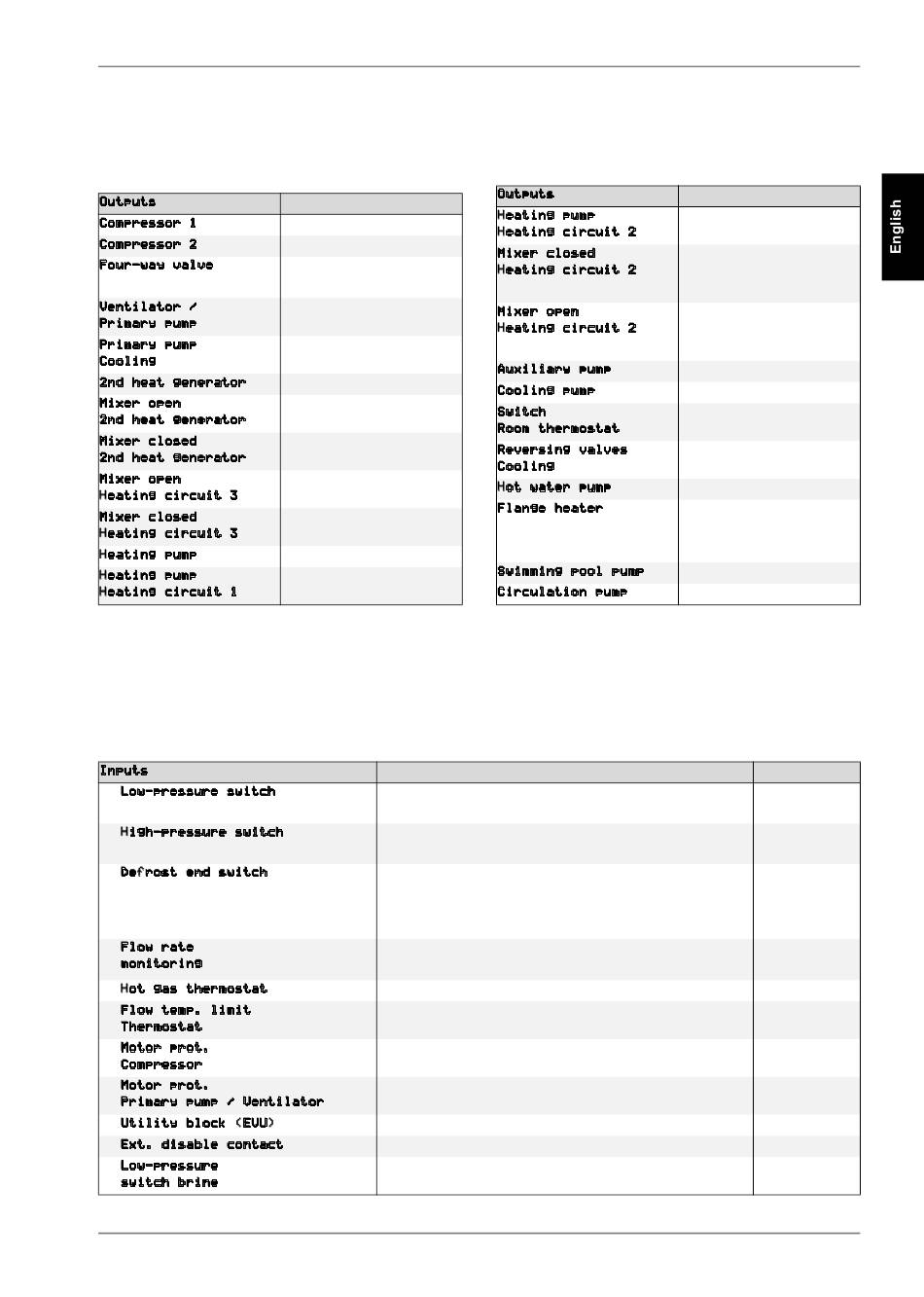

Configuring the Heat Pump Heating System
6.2 Outputs
Depending on the system configuration, the "Outputs" menu
displays the "OFF or ON" status display for the following outputs:
6.3 Inputs
Depending on the system configuration, the "Inputs" menu
shows the "Contact open or closed" status display for the
following digital inputs:
Display
Always
2 compressors
Cooling function
Air-to-water HP
Always
Passive cooling function
Bivalent or mono energy
Bivalent
Bivalent
Heating circuit 3
Heating circuit 3
Always
Cooling function
Status display of all digital inputs
"Contact open" means that a fault has occurred (setting LP
pressure switch NC contact
"Contact open" means that a fault has occurred (setting HP
pressure switch NC contact)
"Contact closed" denotes defrost end
"Contact open" means that a fault has occurred (insufficient flow
rate)
"Contact open" means that a fault has occurred.
"Contact open" means that a fault has occurred.
"Contact open" means that a fault has occurred.
"Contact open" means that a fault has occurred.
"Contact open" denotes a utility block.
"Contact open" denotes a block.
"Contact closed" means that a fault has occurred.
Display
Heating circuit 2
Heating circuit 2 or
cooling operation with silent-
only cooling with reversible HP
Heating circuit 2 or
cooling operation with silent-
only cooling with reversible HP
Always
Passive cooling function
Cooling function
Passive cooling function
Hot water
Hot water
Sensor
Flange heater
Swimming pool
Circulation
1
1
6.3
Always
Always
Air HP without hot
gas defrosting
Pressure sensors
No
Brine HP rev.
Water HP
Air HP
BW or WW HP
Always
Always
Always
Always
LP brine
EN-19
