Getting Started

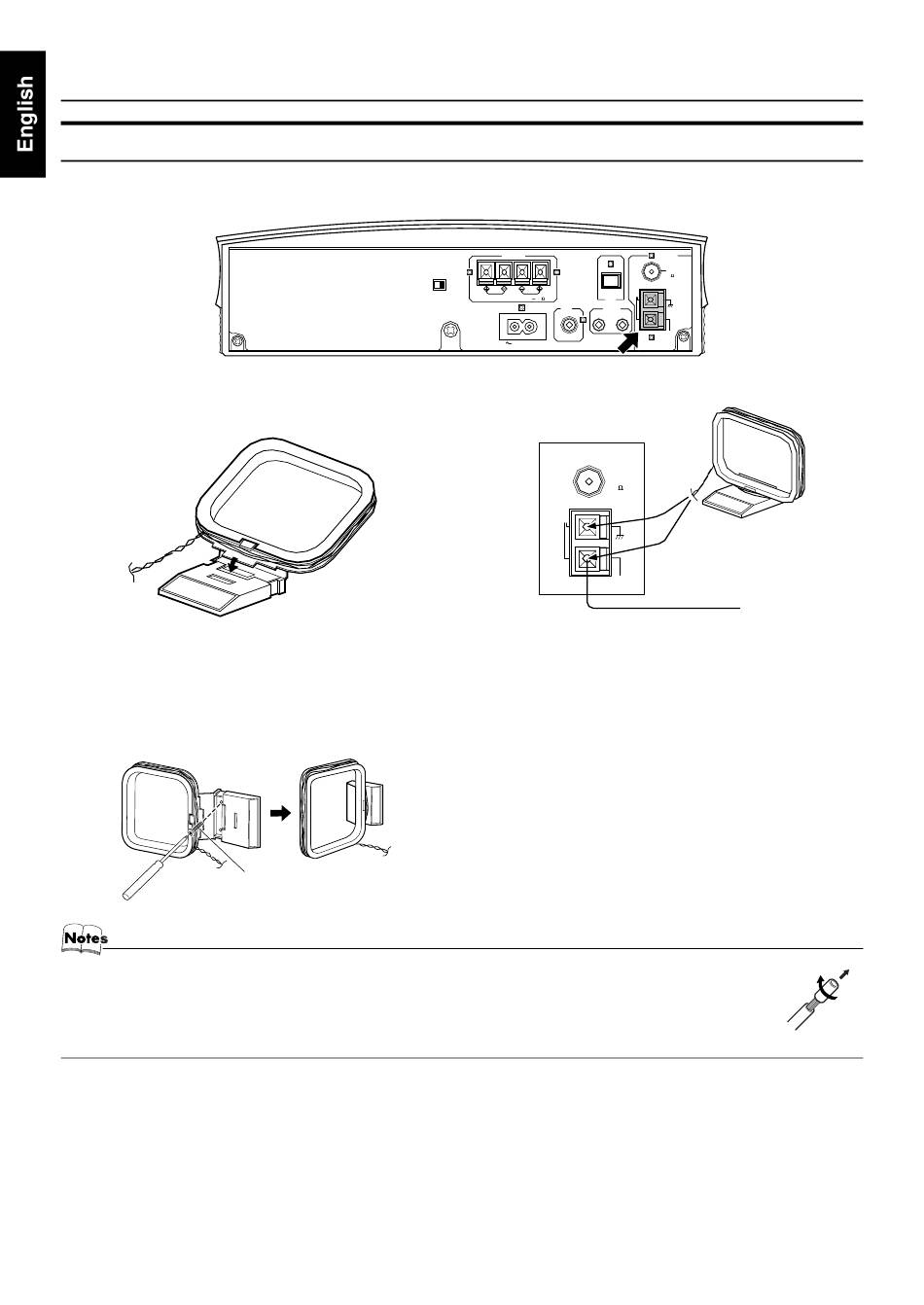

Connecting the AM Antenna

Rear Panel of the Center Unit (CA-VSDT2000)
AM loop antenna (Supplied)
Attach the AM loop to its base by snapping the tabs on
the loop into the slot in the base.
• The AM loop antenna can be attached to a wall.
Screw (not supplied)
• If the AM loop antenna wire is covered with vinyl, remove the vinyl by twisting it as shown in the diagram.
• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord.
This could cause poor reception.
• If reception is poor, connect an outdoor single vinyl-covered wire to the AM EXT terminal. (Keep the AM loop
antenna connected.)
5
SPEAKERS
H V
R L
DISP.SET
CD DIGITAL
SPEAKER IMPEDANCE 4 16
SUB
WOOFER
OUT
AC IN
ANTENNA
AM
LOOP
Turn the loop until you have the best reception.
ANTENNA
FM
(75 )
COAXIAL
AM
LOOP
OUT
MD/AUX
IN
AM
EXT
FM
(75 )
COAXIAL
AM
EXT
Outdoor single vinyl-
covered wire
(not supplied)
